Grundfos SCALA2 User Manual

English (GB)
9
3.3.9 Inlet pipe length
The overview below shows the different possible
inlet pipe lengths, depending on the vertical pipe
length.
The overview is only intended as a guide.

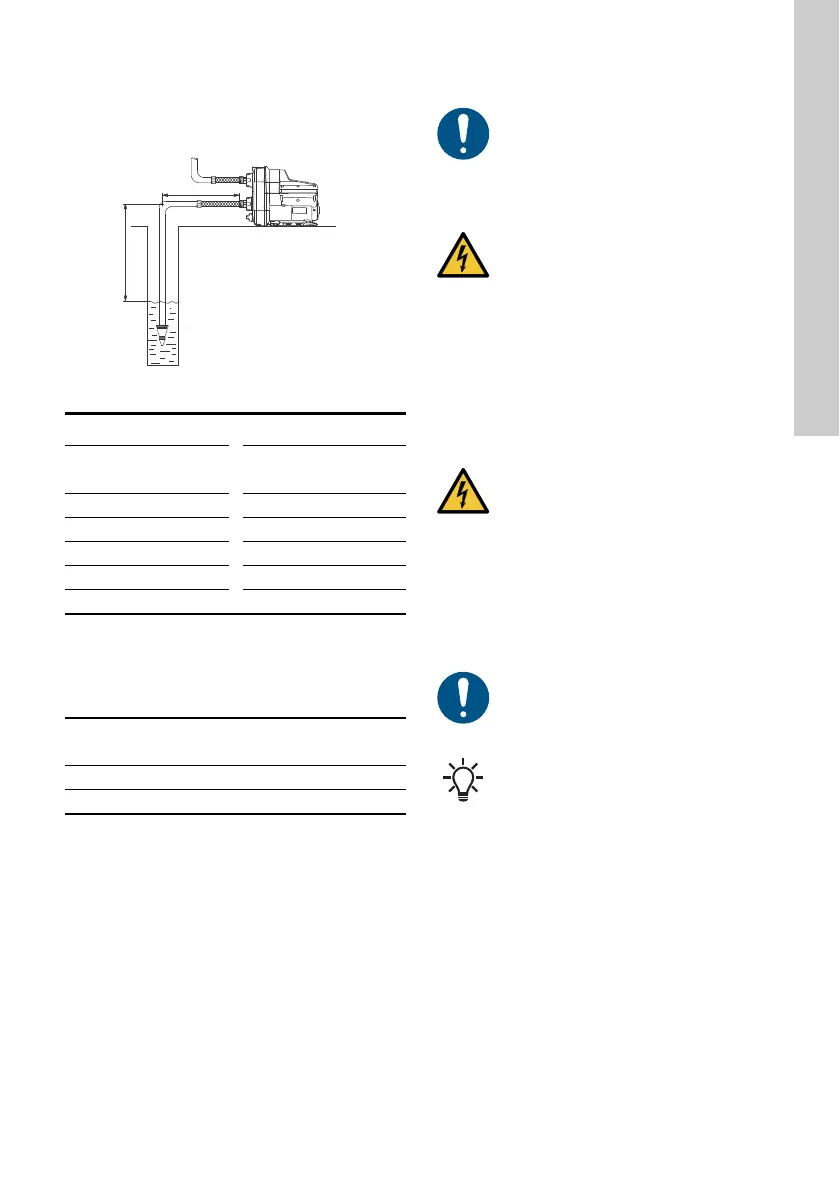

Fig. 8 Inlet pipe length
Preconditions:
3.4 Electrical connection
3.4.1 Motor protection
The pump incorporates current and temperature
dependent motor protection.
TM06 4372 4117
DN 32 DN 40
H
[m (ft)]
L
[m (ft)]
H
[m (ft)]
L
[m (ft)]
0 (0) 68 (223) 0 (0) 207 (679)
3 (10) 43 (141) 3 (10) 129 (423)
6 (20) 17 (56) 6 (20) 52 (171)
7 (23) 9 (30) 7 (23) 26 (85)
8 (26) 0 (0) 8 (26) 0 (0)
Maximum flow velocity: 1 l/s (16 gpm).
Inside roughness of pipes: 0.01 mm (0.0004 inch).
Size
Inside pipe diameter
[mm (inches)]
Pressure loss
[m/m (psi/ft)]
DN 32 28 (1.1) 0.117 (5/100)
DN 40 35.2 (1.4) 0.0387 (1.6/100)
H
L
Carry out the electrical connection
according to local regulations.
Check that the supply voltage and
frequency correspond to the values stated
on the nameplate.
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product. Make
sure that the power supply cannot be
accidentally switched on.
DANGER
Electric shock
Death or serious personal injury
- The pump must be earthed.
- The pump is supplied with a grounding
conductor and grounding-type
attachment plug. To reduce the risk of
electric shock, be certain that the pump
is connected only to a properly
grounded, grounding type receptacle
(protective earthing).
- If national legislation requires a
Residual Current Device (RCD), a
Ground Fault Circuit Interrupter (GFCI),
or equivalent in the electrical
installation, this must be type B
(according to UL/IEC 61800-5-1) or
better, due to the nature of the constant
DC leakage current.
If the power supply cable is damaged, it
must be replaced by the manufacturer, his
service agent or similarly qualified persons
in order to avoid hazard.
We recommend that you fit the permanent
installation with a residual-current circuit
breaker (RCCB) with a tripping current
less than 30 mA.

Grundfos SCALA2 Specifications

General

Max Inlet Pressure	6 bar
Pumped Liquid	Clean water
Maximum Operating Pressure	10 bar
Installation	Indoor
Mains Frequency	50/60 Hz
Connection Size	1 inch
Pump Type	Self-priming, centrifugal pump
Max Flow	3 m³/h
Power Supply	1 x 200-240 V
Power Consumption	550 W
Liquid Temperature Range	0°C to +45°C
Protection Class	X4D
Weight	10 kg
Approvals	CE, EAC
Maximum Ambient Temperature	+55°C
Type of Inlet Connection	G 1 inch
Type of Outlet Connection	G 1 inch
Material	Stainless steel
