Grundfos SEV 80 Installation And Operating Instructions

English (GB)
12
* Pumps from 4 kW and up sold in Australia or New Zealand are fitted with a PTC thermistor.

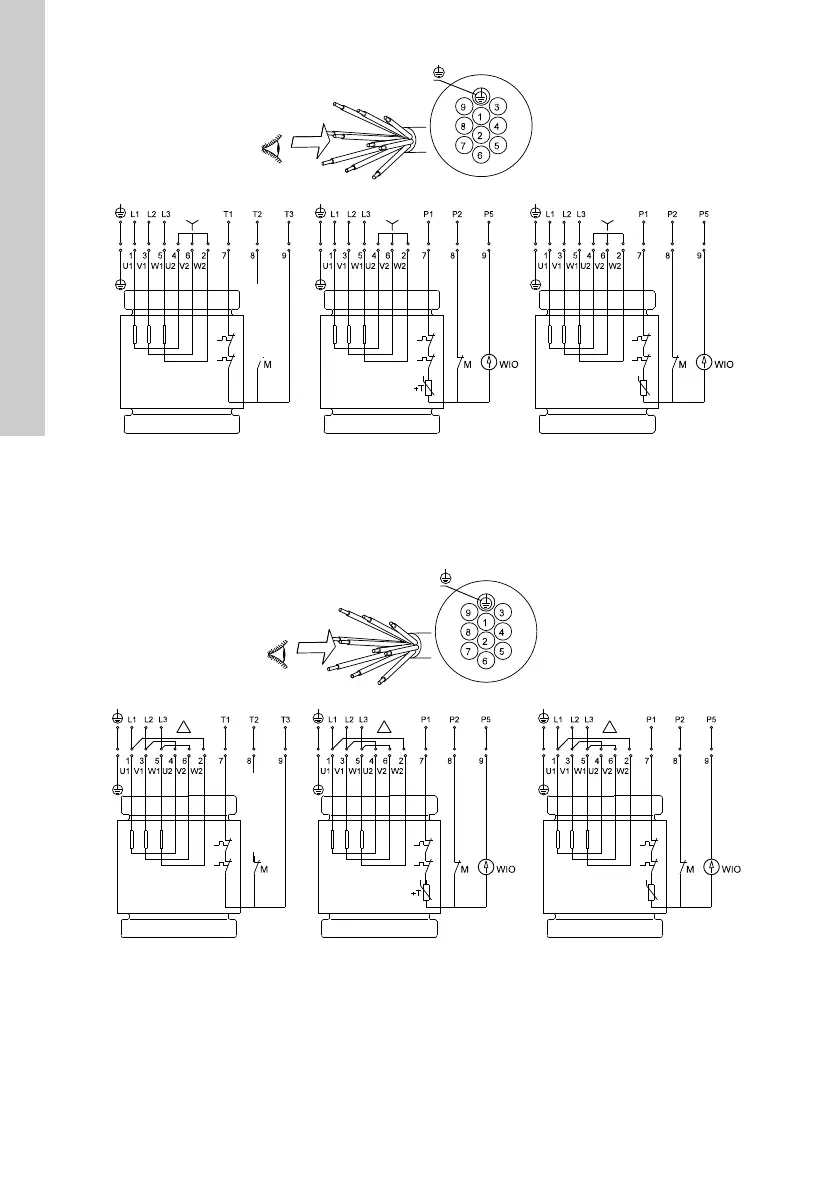

Fig. 8 Wiring diagram, 10-core cable, star-connected (Y)
* Pumps from 4 kW and up sold in Australia or New Zealand are fitted with a PTC thermistor.
Fig. 9 Wiring diagram, 10-core cable, delta-connected (D)
TM04 6886 0710
Standard version with
thermal switches
Sensor version with thermal switch,
Pt1000, moisture switch and water-
in-oil sensor
Sensor version with thermal switch,
PTC thermistor *, moisture switch
and water-in-oil sensor
Yellow and green
(Not used)
TM04 6887 0710
Standard version with
thermal switches
Sensor version with thermal switch,
Pt1000, moisture switch and water-
in-oil sensor
Sensor version with thermal switch,
PTC thermistor *, moisture switch and
water-in-oil sensor
Yellow and green
(Not used)
