English (GB)
11
10-core cable
Figures 7, 8 and 9 show the wiring diagrams for SE1,
SEV pumps with 10-core cable in three versions, one
without sensors and two with WIO sensor and
moisture switch.
* Pumps from 4 kW and up sold in Australia or New Zealand are fitted with a PTC thermistor.

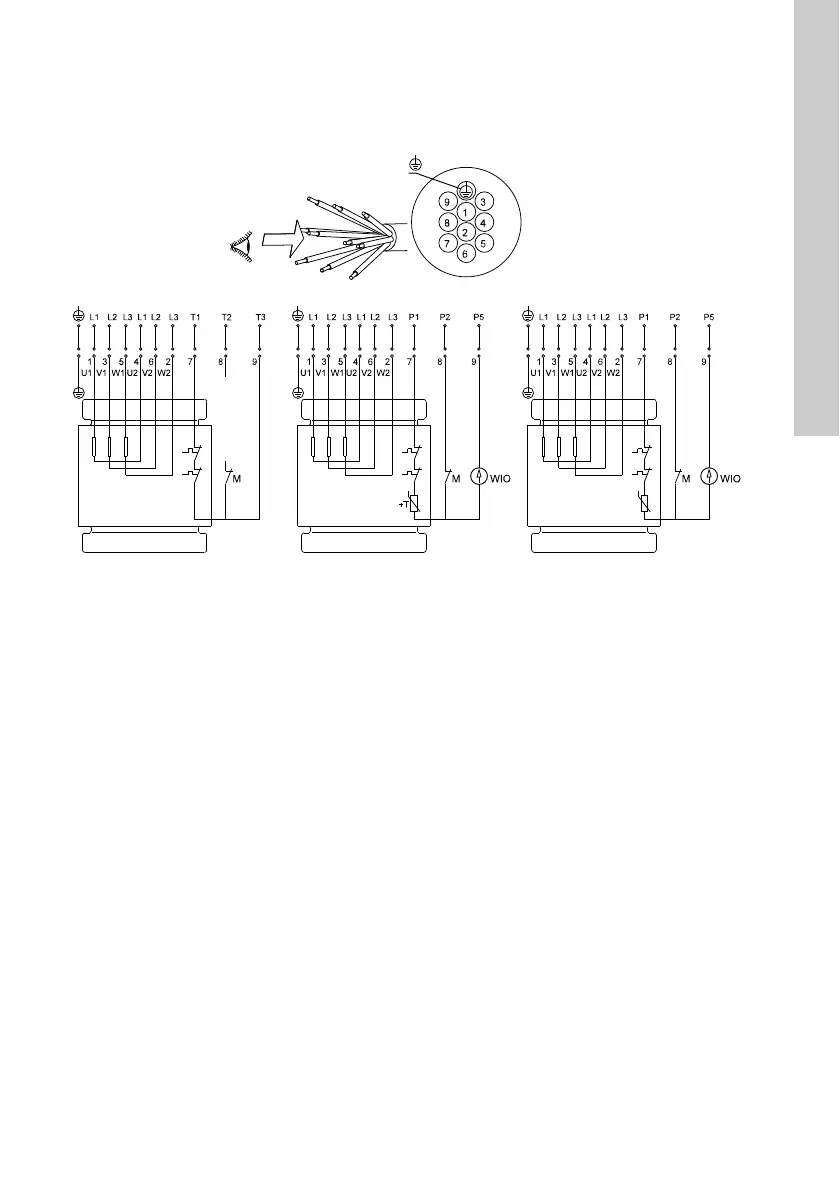

Fig. 7 Wiring diagram, 10-core cable, star/delta (Y/D)
TM04 6885 0710
Standard version with
thermal switches
Sensor version with thermal switch,
PTC thermistor *, moisture switch
and water-in-oil sensor
Yellow and green
(Not used)
Sensor version with thermal switch,
Pt1000, moisture switch and water-
in-oil sensor
