3.2.1 Wiring diagrams
7-core cable
Figure 6 shows the wiring diagrams for SE1, SEV
pumps with 7-core cable in three versions, one
without sensors and two with WIO sensor and
moisture switch.
* Pumps from 4 kW and up sold in Australia or New Zealand are fitted with a PTC thermistor.

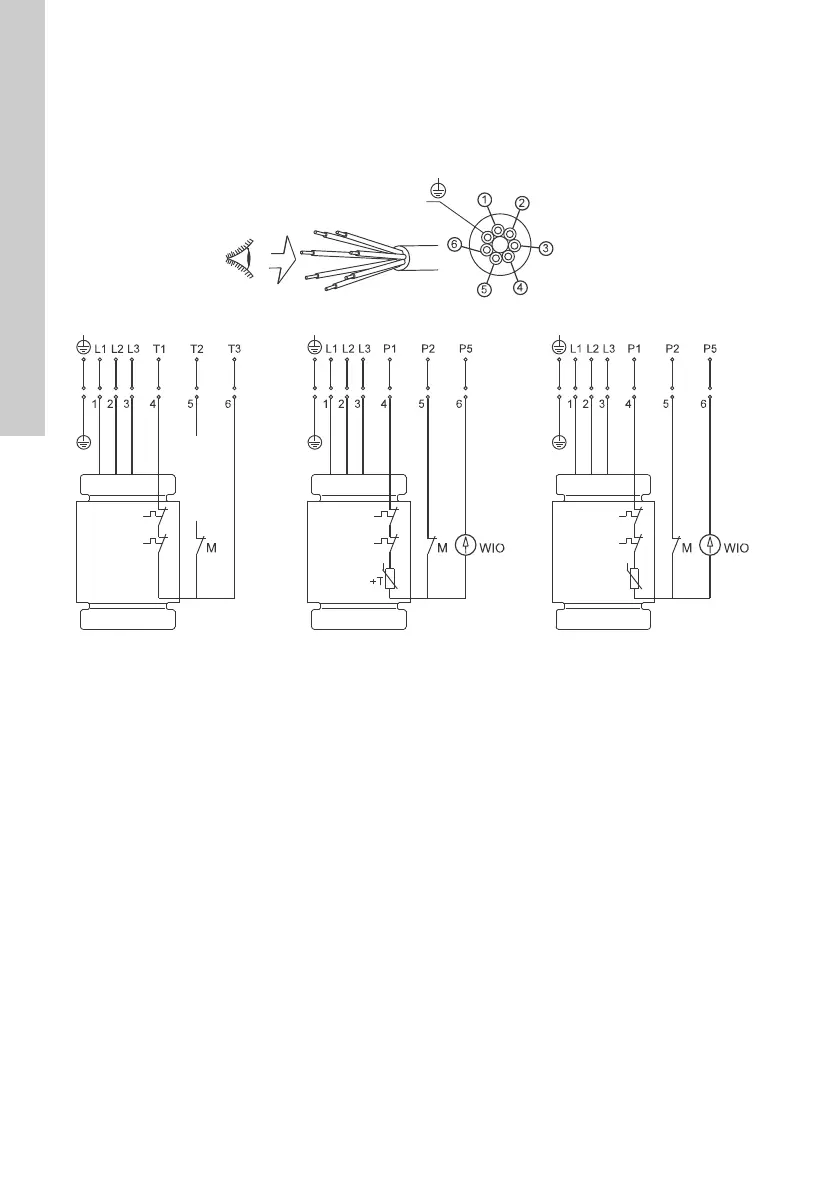

Fig. 6 Wiring diagram, 7-core cable, DOL
TM04 6884 0710
Yellow and green
(Not used)
Standard version with
thermal switches
Sensor version with thermal switch,
Pt1000, moisture switch and water-in-oil
sensor
Sensor version with thermal
switch, PTC thermistor *, moisture
switch and water-in-oil sensor
