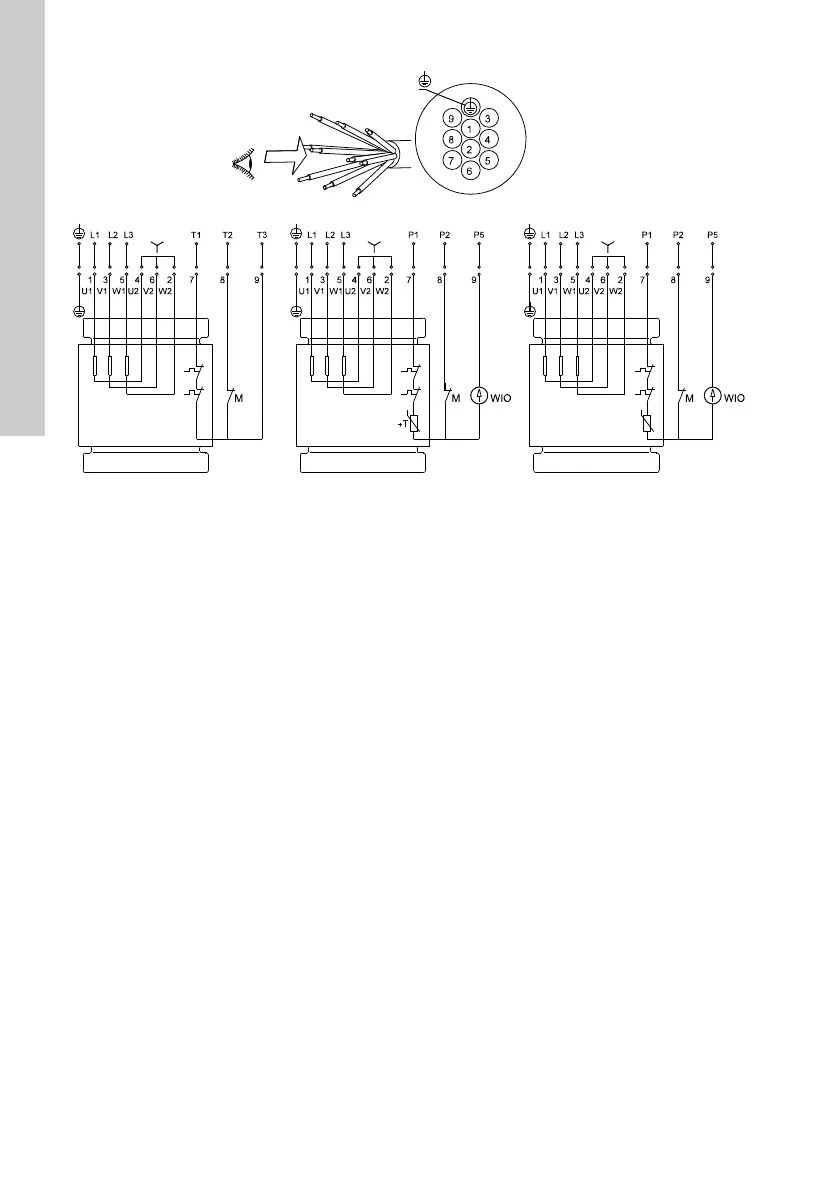

Fig. 8 Wiring diagram, 10-core cable, star-connected (Y)
Yellow and green
Standard version
Thermal switch and
moisture switch*
Sensor version
Thermal switch, Pt1000 resistor,
moisture switch and water-in-oil
sensor
Sensor version
Thermal switch, PTC thermistor *,
moisture switch and water-in-oil
sensor
* Pumps from 4 kW and up sold in Australia and New Zealand are fitted with a PTC thermistor.
