Appendix 1

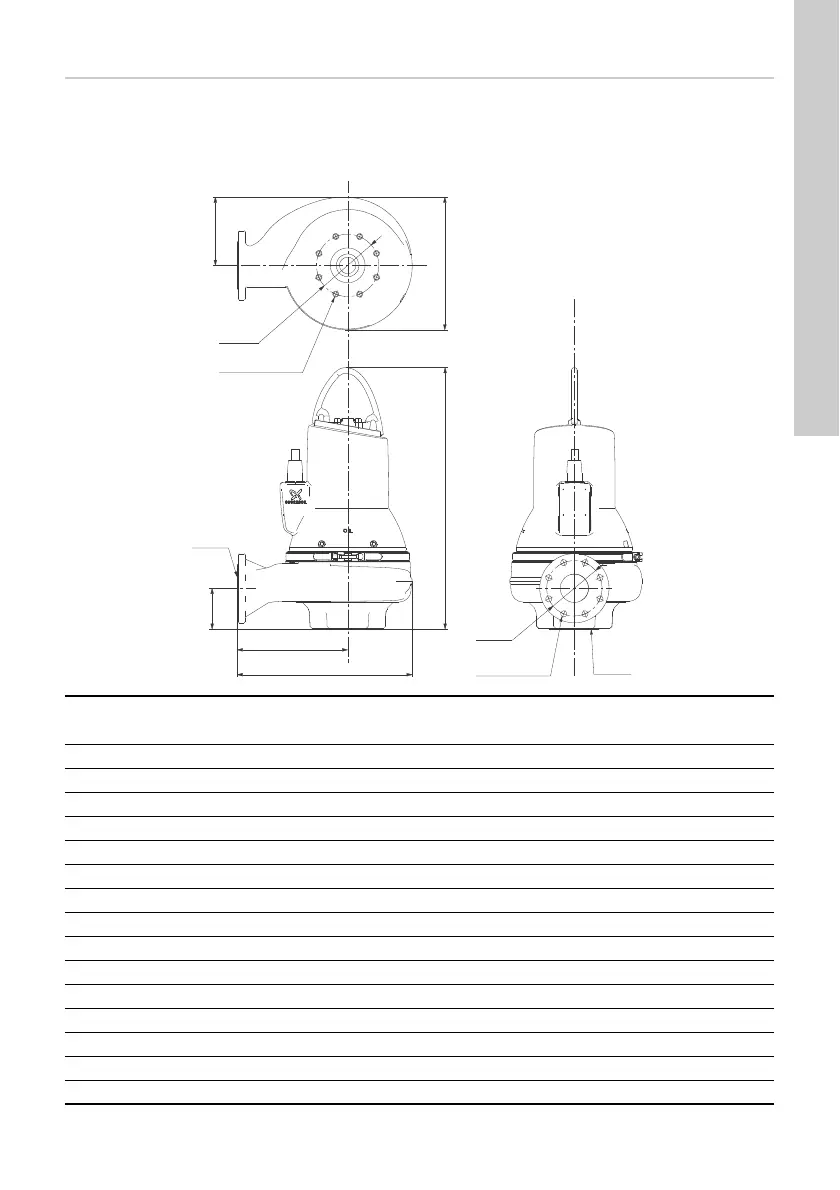

Dimensions and weights
Pumps without accessories
TM04 2793 3008
Dc10
D1n DØ1
Dc02
D2n DØ2
D
F
DN2
H
E
C
A
DN1
Pump type A C D E F H DN1 Dc1
D1n-
D∅1
DN2 Dc2
D2n-
D∅2
Weight
[kg]
SL1.50.65.22.2 641 366 171 216 321 93 65 145 4 x M16 65 145 4 x 18 86
SL1.50.65.30.2 641 366 171 216 321 93 65 145 4 x M16 65 145 4 x 18 89
SL1.50.65.40.2 677 407 200 227 379 93 65 145 4 x M16 65 145 4 x 18 115
SL1.50.80.22.2 641 366 171 216 321 100 65 145 4 x M16 80 160 8 x 18 87
SL1.50.80.30.2 641 366 171 216 321 100 65 145 4 x M16 80 160 8 x 18 90
SL1.50.80.40.2 677 407 200 227 379 100 65 145 4 x M16 80 160 8 x 18 116
SL1.80.80.15.4 682 435 171 272 347 100 100 180 8 x M16 80 160 8 x 18 95
SL1.80.80.22.4 682 435 171 272 347 100 100 180 8 x M16 80 160 8 x 18 107
SL1.80.80.30.4 711 505 200 319 397 118 100 180 8 x M16 80 160 8 x 18 137
SL1.80.80.40.4 748 505 200 319 397 118 100 180 8 x M16 80 160 8 x 18 142
SL1.80.80.55.4 755 505 200 319 397 118 100 180 8 x M16 80 160 8 x 18 149
SL1.80.80.75.4 818 530 217 328 423 118 100 180 8 x M16 80 160 8 x 18 193
SL1.80.100.15.4 682 435 171 272 347 112 100 180 8 x M16 100 180 8 x 19 96
SL1.80.100.22.4 682 435 171 272 347 112 100 180 8 x M16 100 180 8 x 19 108
SL1.80.100.30.4 726 505 200 319 397 118 100 180 8 x M16 100 180 8 x 19 139
