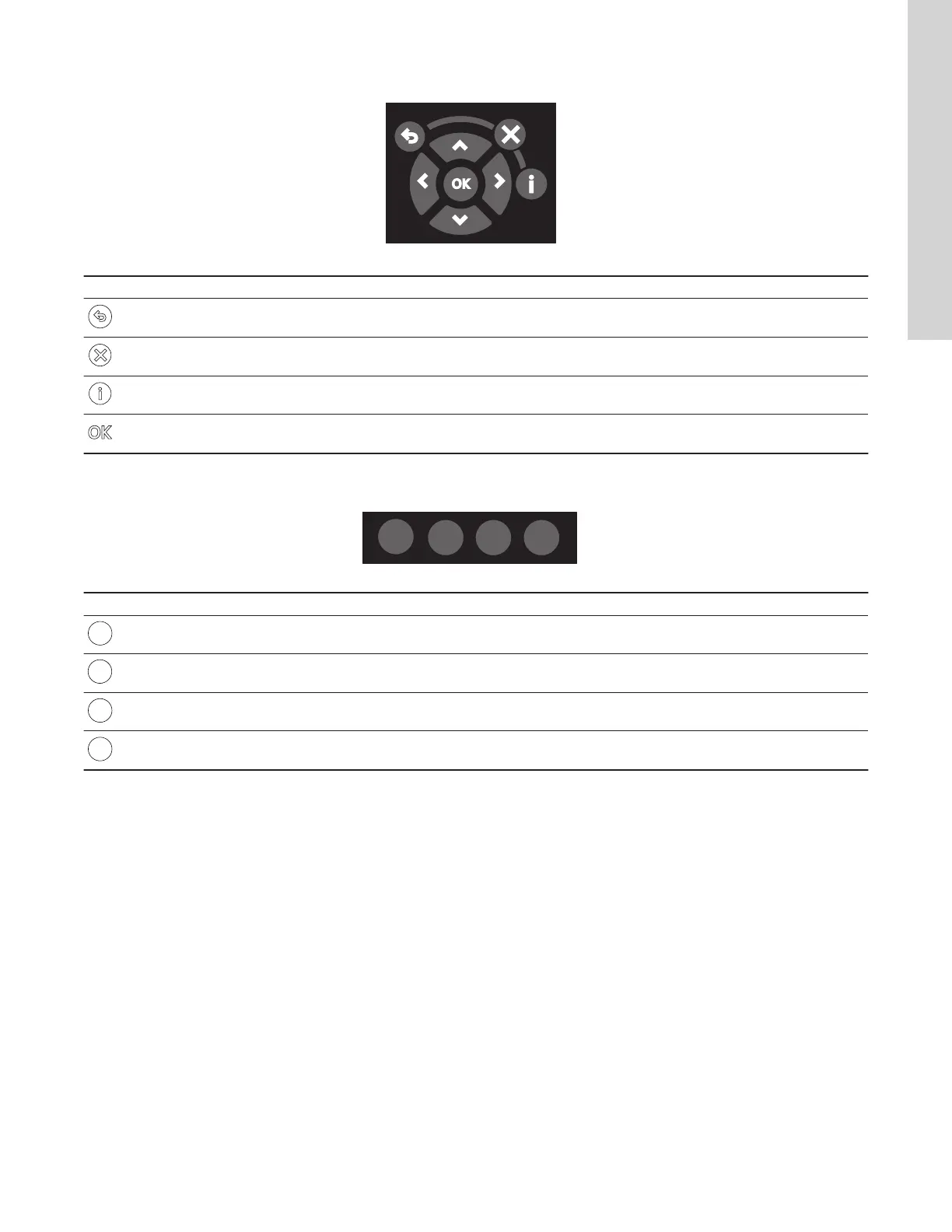

3.2 Navigation
TM081115
Button Description
[Back]: Used for reverting to the previous step or exiting the current parameter subgroup.
[Cancel]: Used if a change to the selected parameter is not to be carried out.
[Information]: Displays information about a command parameter or function in any display window. Press the [Infor-
mation], [Cancel] or [Back] buttons to exit.
OK: Used for selecting or changing a parameter in either the [Main Menu] or [Favorites Menu]. Must be pressed to
accept the change to a parameter.
3.3 Operation
TM081116
Button Description
HAND ON: Operates the VFD (variable frequency drive) in Hand (manual) mode.
OFF: Stops the VFD and the motor during Hand or Auto mode operation.
AUTO ON: Operates the VFD in Auto mode based on the present parameters and PID signal.
RESET: Resets the VFD after an alarm.
