Code Explanation Designation
A 0-563 rpm
Minimum
speed
J > 2.025 rpm
Code Explanation Designation
X TE MSS NdFeB Relay
Control signal
connector
Y FCI NdFeB Relay
V TE MSS NdFeB NTC
W FCI NdFeB NTC
T TE MSS IMM NTC
U FCI IMM NTC
Code Explanation Designation
3 3 h (right)
Control box
orientation
6 6 h (below)
9 9 h (left)
0 12 h (top)
Code Explanation Designation
XXX Customer code

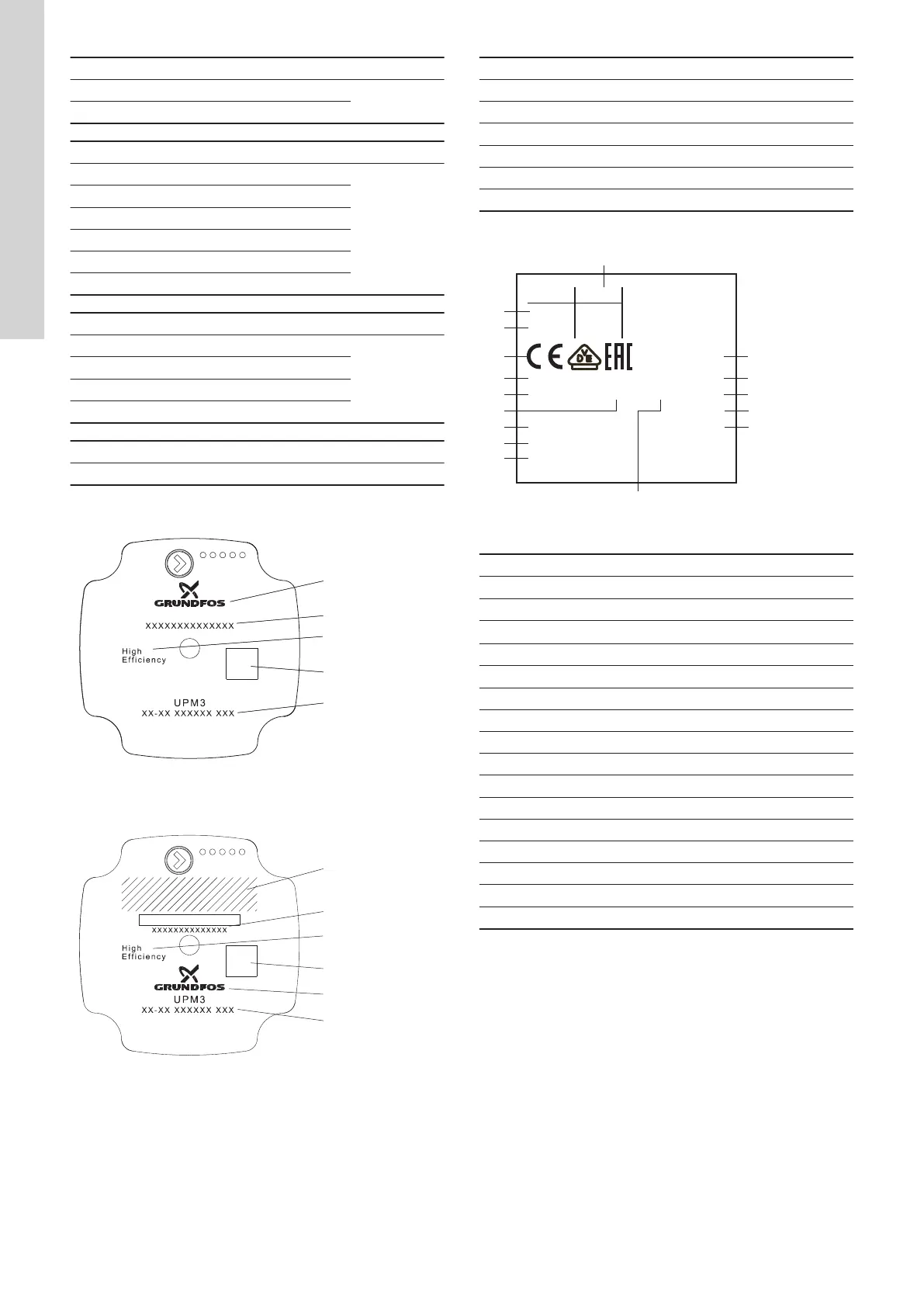

2.3.2 Nameplate options
TM075431
Nameplate: Grundfos standard
TM075430
Nameplate: customised layout
Pos. Description
1 Grundfos logo
2 Grundfos pump type
3 High efficiency indicating ECM technology
4 Grundfos data matrix
5 Customer product number or barcode
7 Area for customer specific logo
2.3.2.1 Terminal box side
15
16
Grundfos Holding A/S
DK-8850 Bjerringbro
Denmark
GFNXX
Min. XX
Max. XXX
P / N : XXXXXXXXX PC: YYWWXXX
S / N : XXXXXXXXX
Made in XXXXXXX
Min. 0°C
EEI ≤ 0.XX - Part X P
L,avg < XXW
XXXV ~ XX / XXHz IPXXX
P1(W)
TFXXX
TM076077
Terminal box side
Pos. Terminal box side
1 Input power at minimum and maximum performance
2 Product mark (legal product code)
3
Average power input P
L,avg
(Ecodesign regulation)
4 Temperature class
5 Minimum liquid temperature (only cold-water pumps)
6 Production code (year and week) and customer ID
7 Enclosure class
8 Production site
9 Serial number
10 Product number
11 Frequency [Hz]
12 Voltage [V]
13 Energy index with indication of measurement standard
14 CE mark and approvals
15 Maximum
16 Minimum
3. Receiving the product
3.1
Transporting the product
• Use appropriate lifting and transporting devices.
• Observe the maximum stacking height of pallets printed on the
side of the pallet.
3.2
Inspecting the product
When you have received the product, make sure that:
• The product is in accordance with the order.
• The voltage and frequency of the product match the voltage and
frequency of the installation site.
6
English (GB)
