5.2 Changing the control box position
CAUTION
Hot surface
Minor or moderate personal injury
‐ Position the pump so that persons cannot accidentally
come into contact with hot surfaces.
WARNING
Pressurized system
Minor or moderate personal injury
‐ Before dismantling the pump, drain the system
or close the isolating valves on both sides of the
pump. The pumped liquid may be scalding hot and
under high pressure.
Make sure that the isolating valves are closed before
rotating the control box. The pump must be pressureless
before the control box is rotated. Drain the system or
relieve the pressure inside the pump housing.
In heating systems, do not insulate the control box or
cover the operating panel.

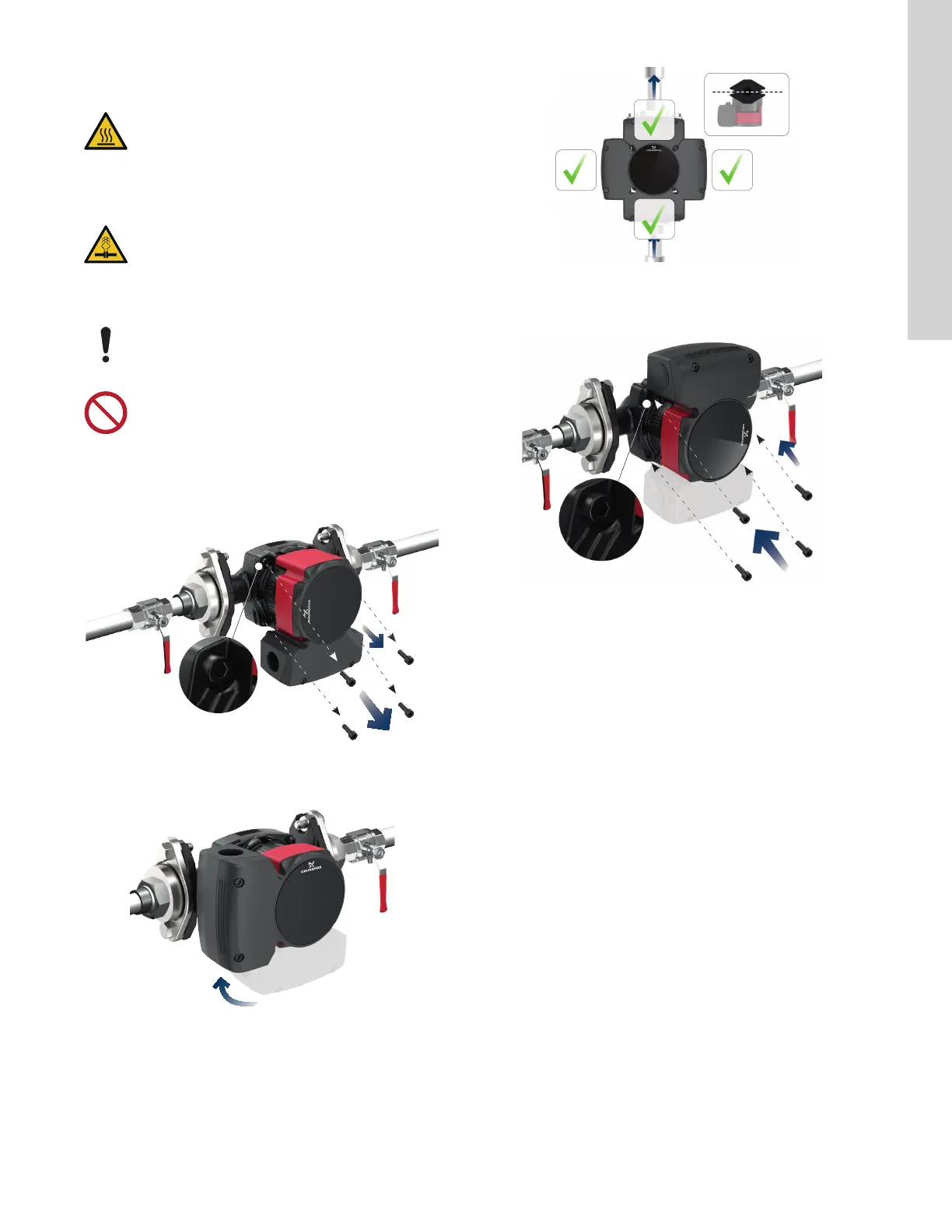

To change the position of the control box, do as follows:
1. Loosen and remove the four screws.
TM082508
2. Turn the pump head to the desired position.
TM082509
The control box can be turned in steps of 90°.
TM082458
Flanges in standard position (F)
3. Insert and cross-tighten the screws.
TM082510
9
English (US)
