24

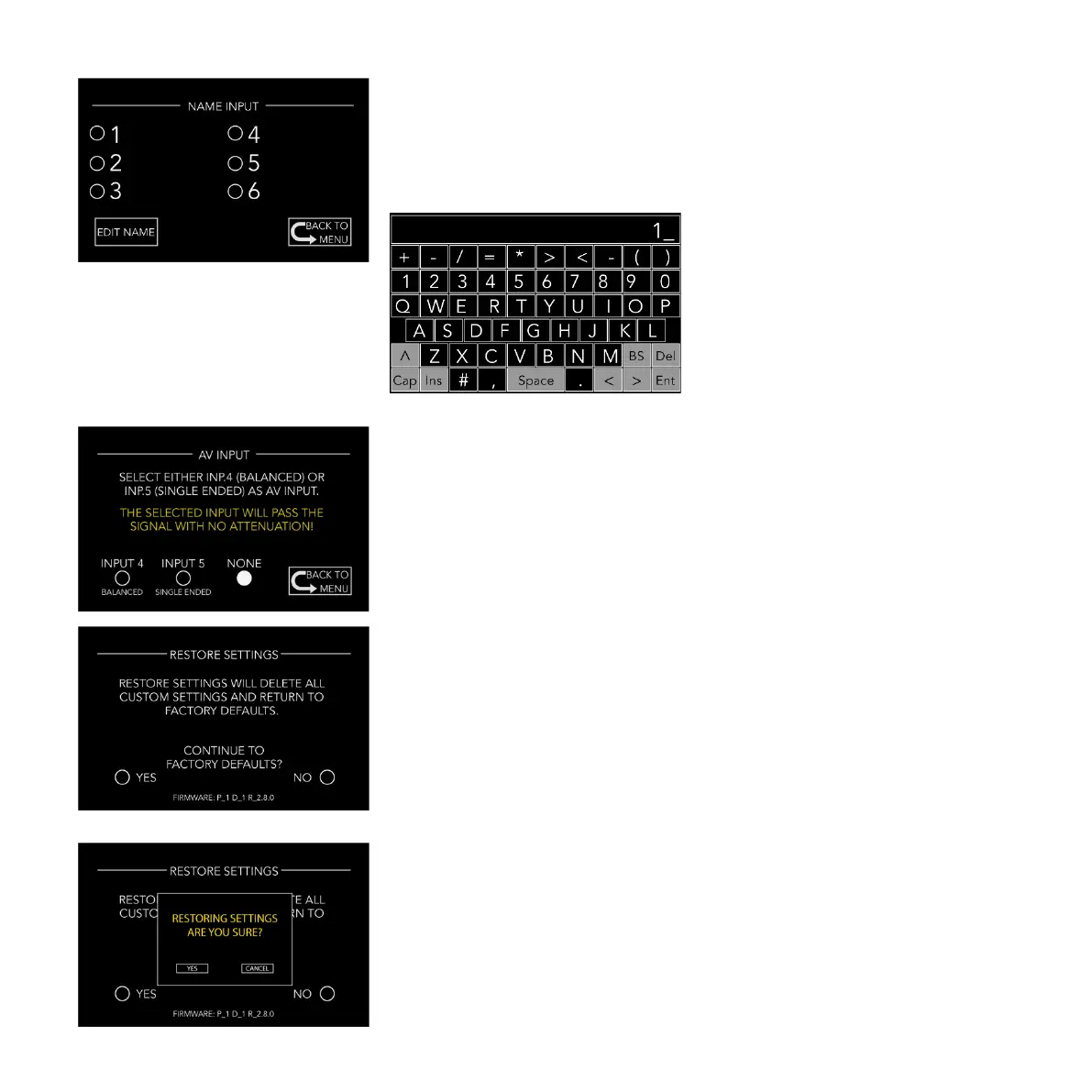

NAME INPUT:
Select the desired input and press Edit Name.
Use the QWERTY keyboard to enter the new input name and press "Ent" to confirm. The input
name can have a maximum of 8 characters.
AV INPUT:
This option allows you to use either Input 4 (balanced) or Input 5 (single-ended) on Commander
as a “Unity Gain” input for a source (e.g. Home Theater Processors) with its own volume
control, e.g. if you select this option, the signal will be passed through the selected input with no
attenuation (0dB via Input 4 / +6dB via Input 5 to balanced output) and no gain adjustment
available via the Commander volume control.
RESTORE SETTINGS:
This option allows for resetting all settings to default, per below:
Start Volume: 0
Max Volume: 84
Balance: 0 (centered)
Output Level: 0dB
IR Source: Front Panel IR Sensor
PSU Option: Analog PSU 2 disabled
Input Level Match: 0dB for all inputs
Input Names for Input 1-6: 1-6
AV Input: None
