GT Force 27.5 - Geometry - Force 27.5

8
134937 Rev 1.
EnglishForce / Sensor - Owners Manual Supplement
Frame Size S M L XL
Flip Chip Orientation
D Seat Tube Length
400 400 430 430 480 480 520 520
C Top Tube Horizontal
566.46 568 593.27 595 620.09 621 646.9 648
A Head Tube Angle
65.5° 65° 65.5° 65° 65.5° 65° 65.5° 65°
B Seat Tube Angle
76° 75.5° 76° 75.5° 76° 75.5° 76° 75.5°
G Standover
740.4 740.4 750.3 750.3 760.2 760.2 795.1 795.1
H Head Tube Length
102 102 110 110 118 118 126 126
F Wheelbase
116.28 164 1190.60 1192 1218.91 1221 1247.23 1249
M Front Center
730 730 758 758 787 787 815 815
E Chainstay Length
432.4 435 434.4 435 434.4 435 434.5 435
L Bottom Bracket Drop
13.7 20 13.7 20 13.7 20 13.7 20
K Bottom Bracket Height
345.3 339 345.3 339 345.3 339 345.3 339
J Fork Rake
44 44 44 44 44 44 44 44
L Stack
587.41 591 594.68 599 601.97 606 609.25 613
M Reach
420 415 445 440 470 465 495 490

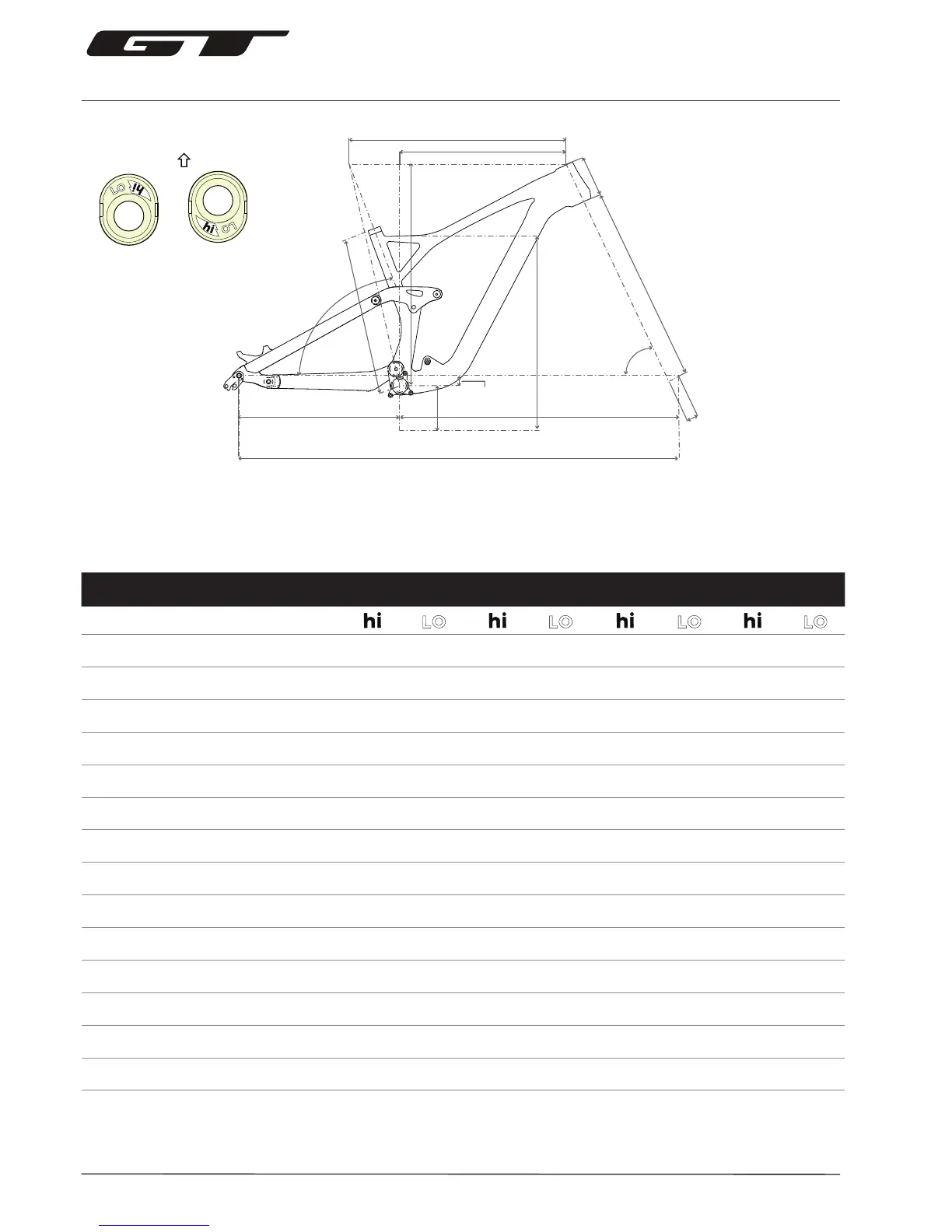

Geometry - Force 27.5
A
C
H
I
J
K
F
G
B
D
E
M
GROUND
L(+)
P
O
UP
All Specifications subject to change without notice.
Dimensions = millimeter
