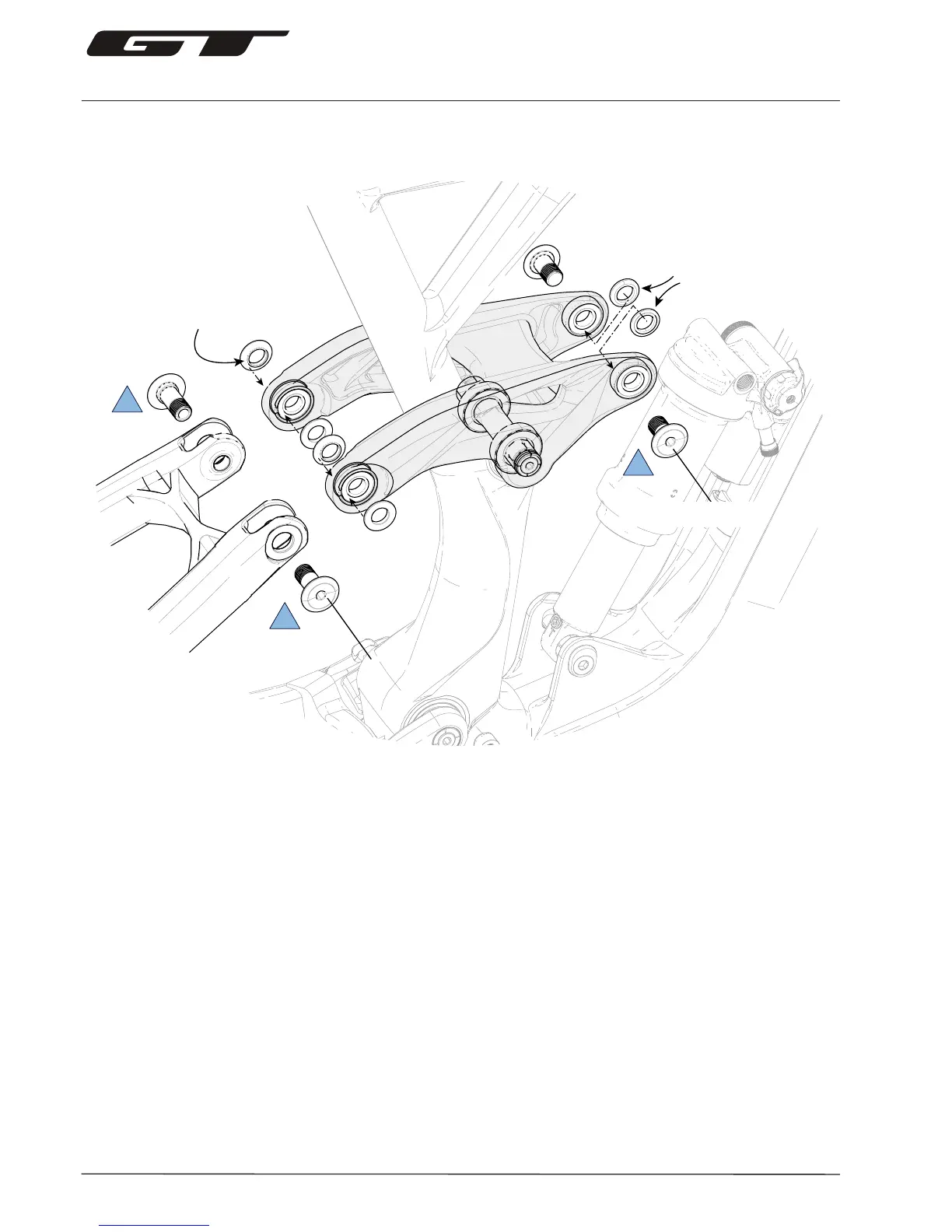

Link Assembly
Connecting the Link
To prevent mis-alignment and/or potential damage, follow this assembly order
routine:
1. Connect link to frame with the LockR pivot.
2. Connect the rear shock, make sure the smooth side of the spacers face the
shock. Only finger tighten the bolts.
3. Connect the seat stay, make sure the small end of the spacers face the bea-
rings. Only finger tighten the bolts.
4. In a cross-pattern, tighten all bolts to the specified torque in increments.
small end
Spacers
Bearings
smooth side
small end
