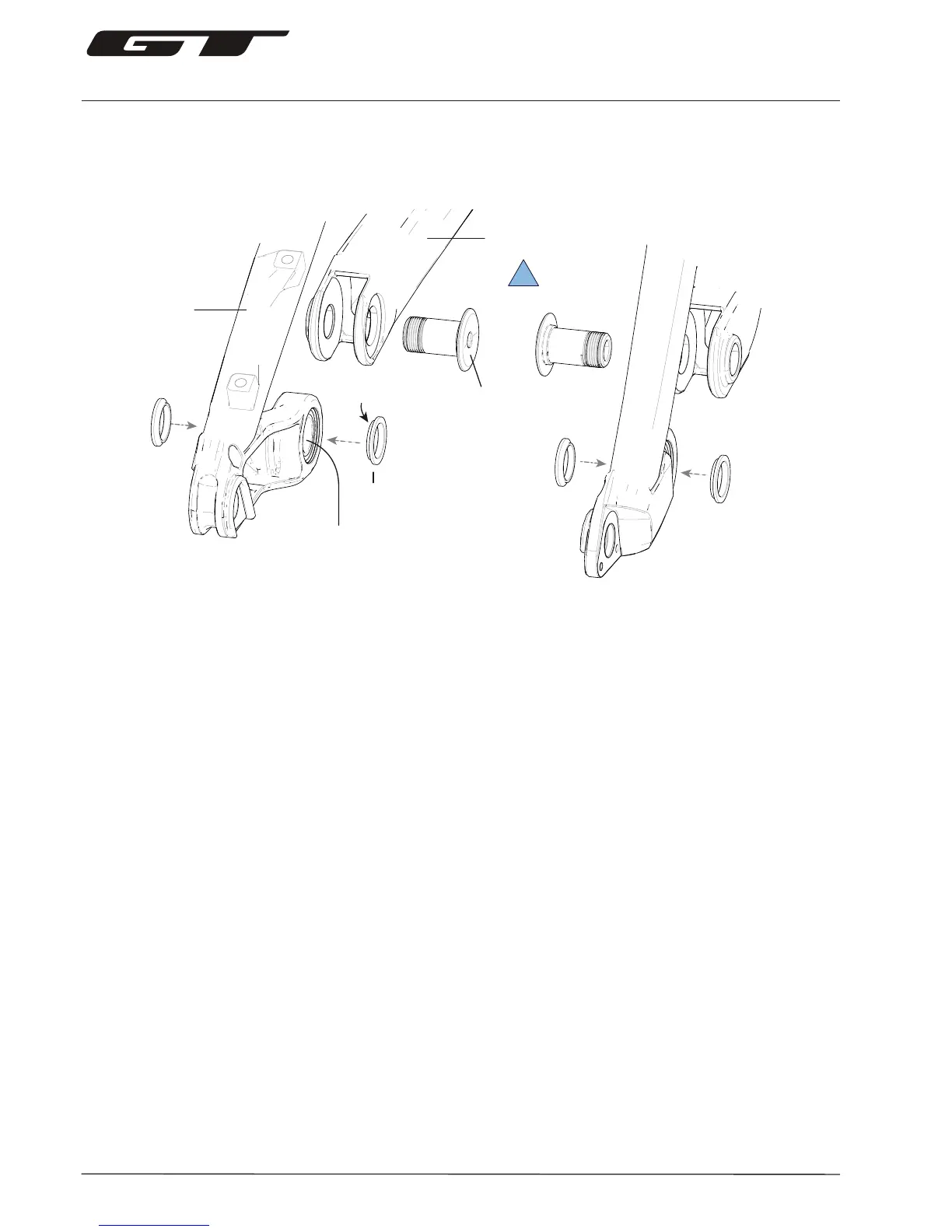

• When connecting the seat stays to the chain stay, make sure the small end
of spacers face the bearings . The flat side of the spacers should face out, as
shown.
• When tightening the axles, insert the 5 mm hex key completely into the
axle to prevent damage when turning the bolt.
• Always clean and re-apply the specified thread lock to the bolt threads.
• Tighten with a torque wrench to the specified torque.
Dropouts
2
7 N·m
Pivot Axles
small end
Spacers
Bearings
Chain Stay
Seat Stay
To Next Page
