Flip Chip Orientation
1. Place the bike in a workstand.
2. Support the rear wheel to prevent
swingarm dropping when shock is
disconnected.
3. Remove the lower shock mounting
bolts.

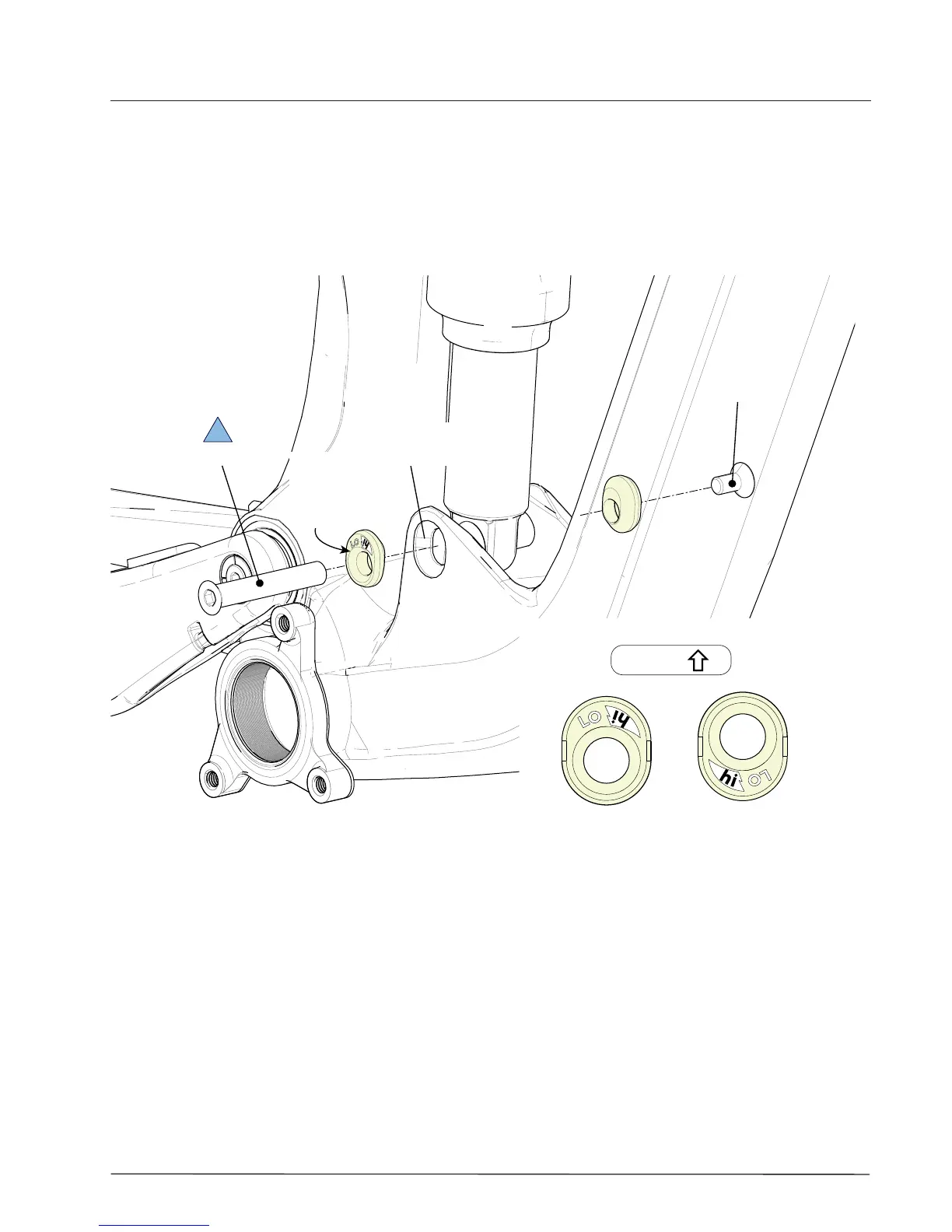

4. Change the Flip Chip orientation in
the frame sockets. See inset.
5. Install and tighten the shock bolts to
the specified torque.
Setting
The orientation of the Flip Chip will change the bottom bracket height, head
tube angle, seat tube angle. Resulting changes to the values can be found in the
“Geometry“ section.
2
8 N·m
UP
Shock Bolt
Shock Bolt
Chip
marking
faces out
Socket
Lo position
Hi position
