Making AC Connection
After setting your battery chemistry selections for each output, connect the AC plug into
an AC receptacle, which is protected by a Ground Fault Circuit Interrupter (GFCI)
breaker.
DC Output Wiring Configurations
This section shows possible DC wiring configurations for the following charger models:
16061, 16102, 16153, and 16202.

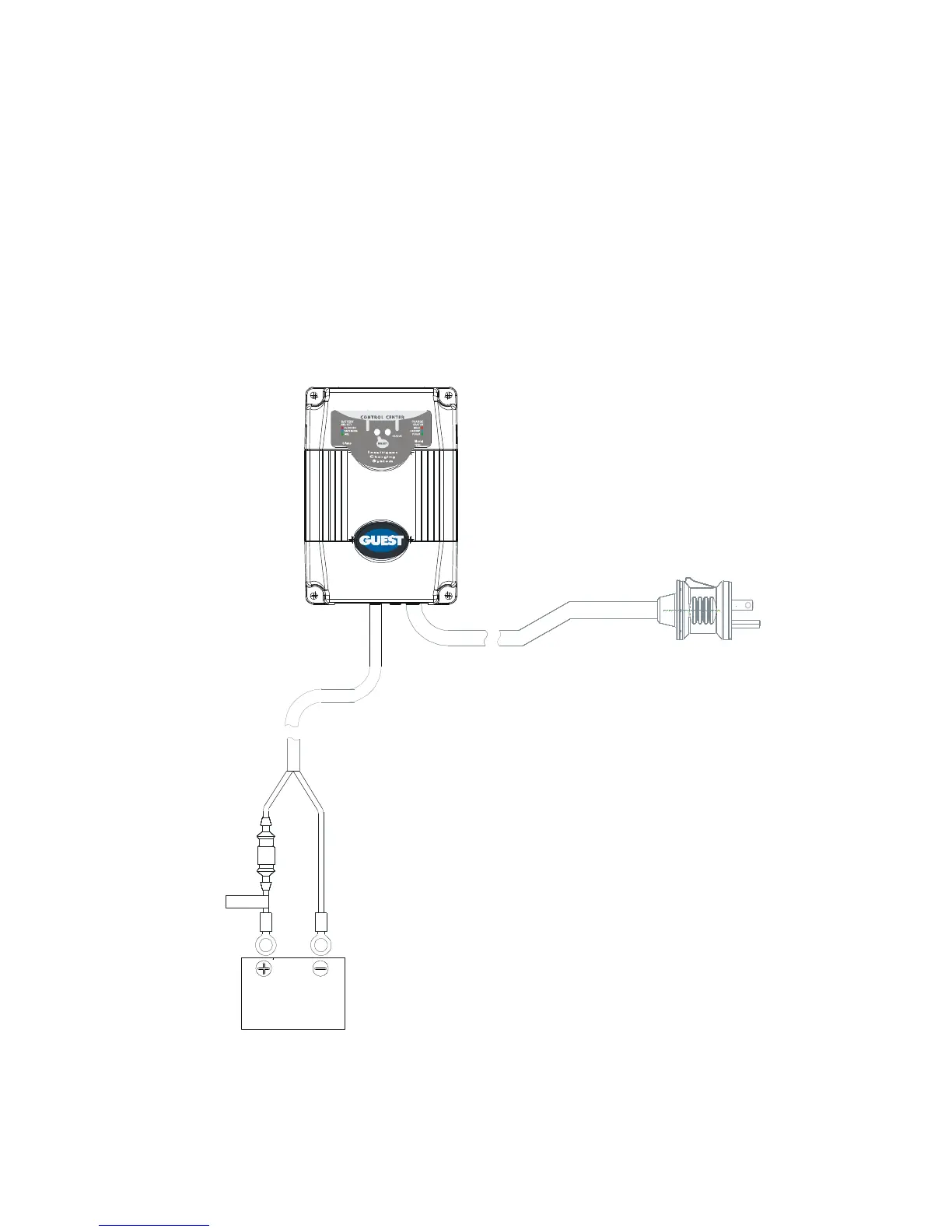

Diagram 1 – 16061 in a single Independent Output configuration
6 Amp
