Guldmann GH3 Series - Pictograms; Indicator Lamps and Audio Signals

RESET
13
© Guldmann GB/US-05/2010 • # 550393
© Guldmann GB/US-05/2010 • # 550393
© Guldmann GB/US-05/2010 • # 550393
© Guldmann GB/US-05/2010 • # 550393

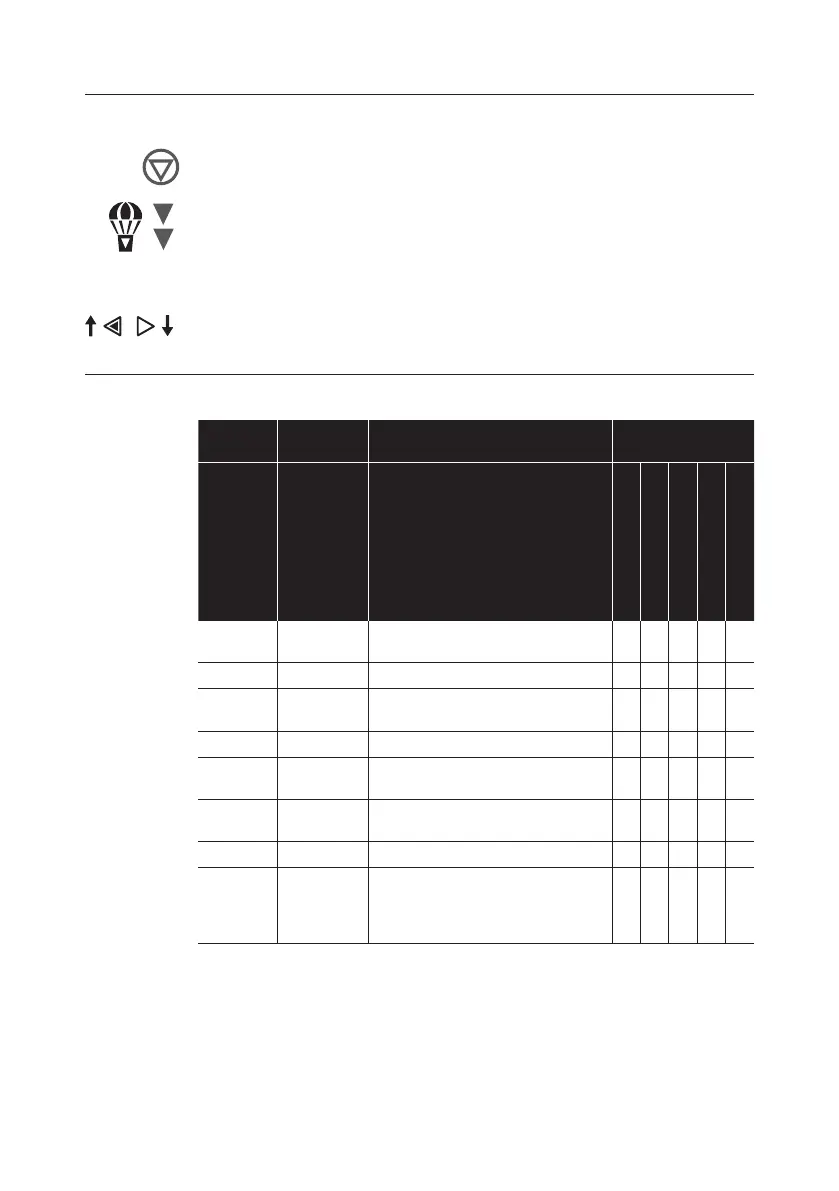

2.01 Pictograms
Emergency stop
Emergency lowering function
Reset emergency stop
Tilt function
2.02 Indicator lamps and audio signals
Status Indicator
lamps
Audio signals Possible GH3
Functions
Up Down Emergency lowering Horizontal drive motor Communication
Off
– stand by
Off
All OK Green x x x x x
No charging Yellow,
after 15 sec
3 x Beep after 60 sec x x x x x
Low battery Yellow x x x x x
Fault on
hoist
Yellow Beeps at button activation x x
Battery
critically low
Yellow Beeps at button activation
that is not permitted
x x x
Over load Yellow Beeps at button activation x x
Service date
exceeded
more than
60 days
x
)
Yellow Beeps at button activation x x x x x
x
) Only if the hoist is with Service modul
