Guldmann GH3 Series - Load Limits on GH3 System; Unpacking and Preparation; Placing a New GH3 Hoist in an Existing Rail System

To Next Page

To Previous Page

Electromagnetic compatibility (EMC)

In case of electromagnetic interference between the GH3 hoist and other

products, these must not be used together.

1.04 Load limits on GH3 system

Read the label which indicate the maximum load limits for each component.

The components, e.g. lifting hanger, lifting sling, etc. labelled with the lowest

load limit determines the maximum load limit for the entire system.

This maximum load limit must not be exceeded.

Please note that the max load may change when different components are

used, such as lifting hangers, lifting slings, etc.

1.05 Unpacking and Preparation

Visual check of the GH3.

If the GH3 is thought to be damaged upon reception, the GH3 must not be

used before it has been checked and approved by a qualied person or the

Guldmann Service Team.

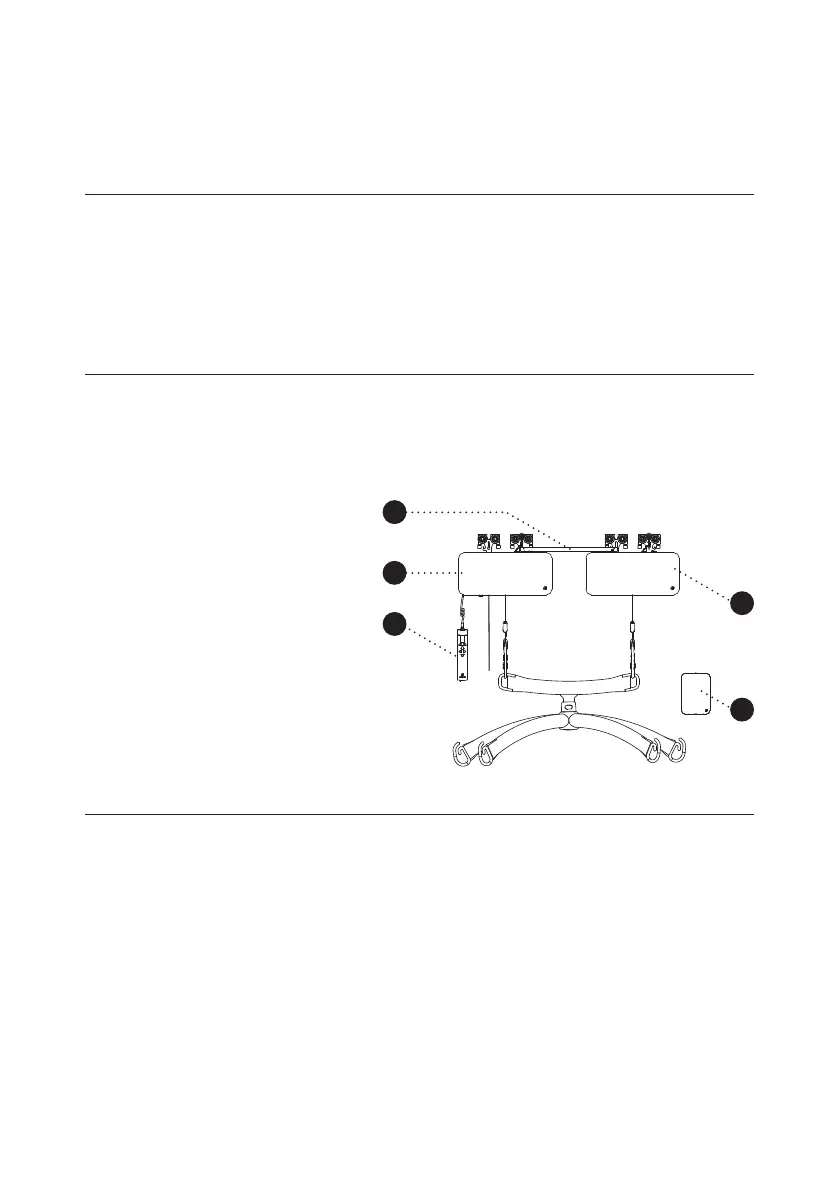

Contents of the box

1. GH3 hoist (leader)

2. GH3 hoist (follower)

3. Hand control

4. Transformer

5. Connector bar and cable

6. Manual (not illustrated)

7. Label for rail system

(not illustrated)

1.06 Placing a new GH3 Hoist in an existing rail system

Please notice, placing a new GH3 hoist in an existing rail system it must

be ensured that:

• The rated max load of the rail system, must be equal or higher than the

max load of the new hoist.

– If there is no max load mentioned on the rail system, the rail system

must then be checked according to the guideline in the Installation

guide (distance between bracket according to max load)

– If the brackets are not visible, then a load test with 1,5 x max load of

the hoist must be performed minimum 20 min. The deection of rails must

not be higher than 1/200 of the length of the rail.

– If it is not possible to do any of the above mentioned, please contact

Guldmann or their representative.
