2.03 Operation

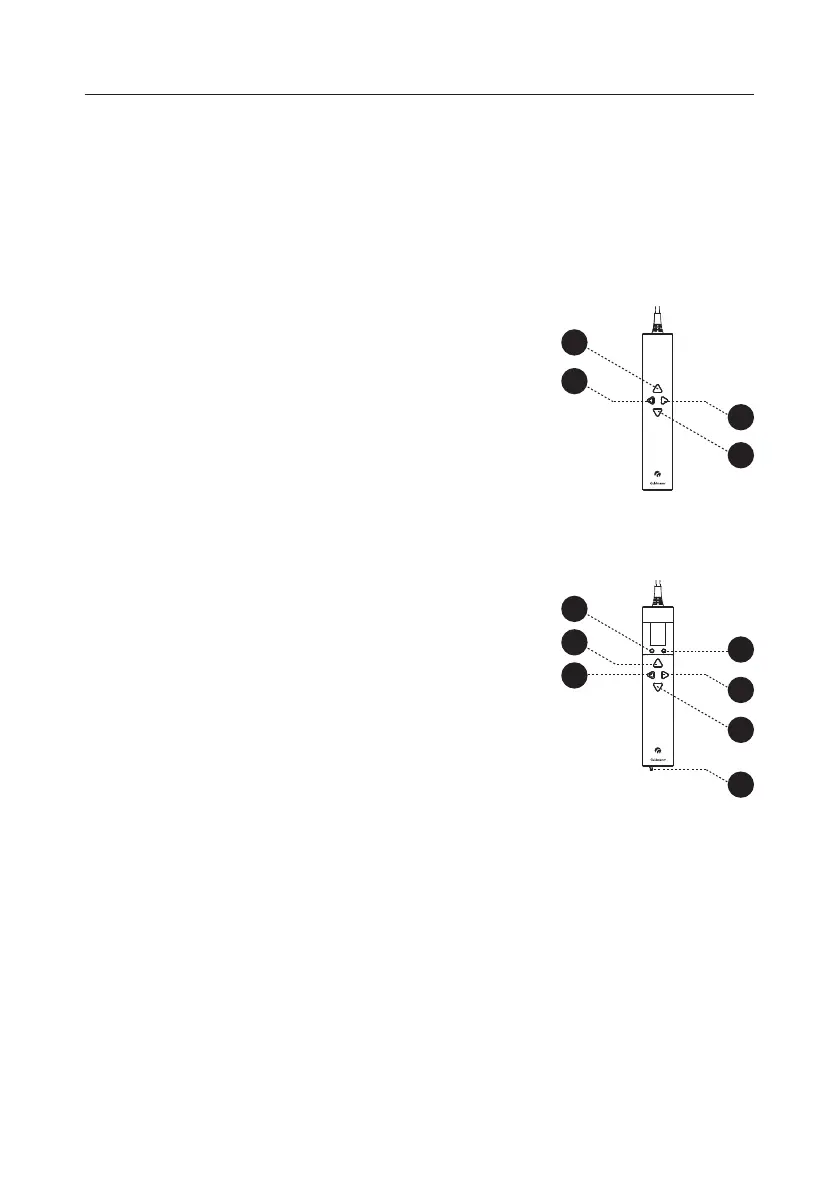

Hand control
The GH3 is switched on automatically when
a button on the hand control is pressed.
The GH3 is switched off automatically after
approx. 8 minutes without activation.
GH3
1. Lift
2. Lower
3. Lift leader hoist. (Tilt fuction)
4. Lower leader hoist. (Tilt fuction)
GH3 with sumplementary modules
1. Lift
2. Lower
3. Lift leader hoist. (Tilt fuction)
4. Lower leader hoist. (Tilt fuction)
5. Function selection button
(section 2.05, supplementary modules)
6. Function selection button
(section 2.05, supplementary modules)
7. PDA interface (mini USB) x)
PDA /Netbook
x) Accessories to CLM module
(see Supplementary modules, GH3 (section 2.04))
