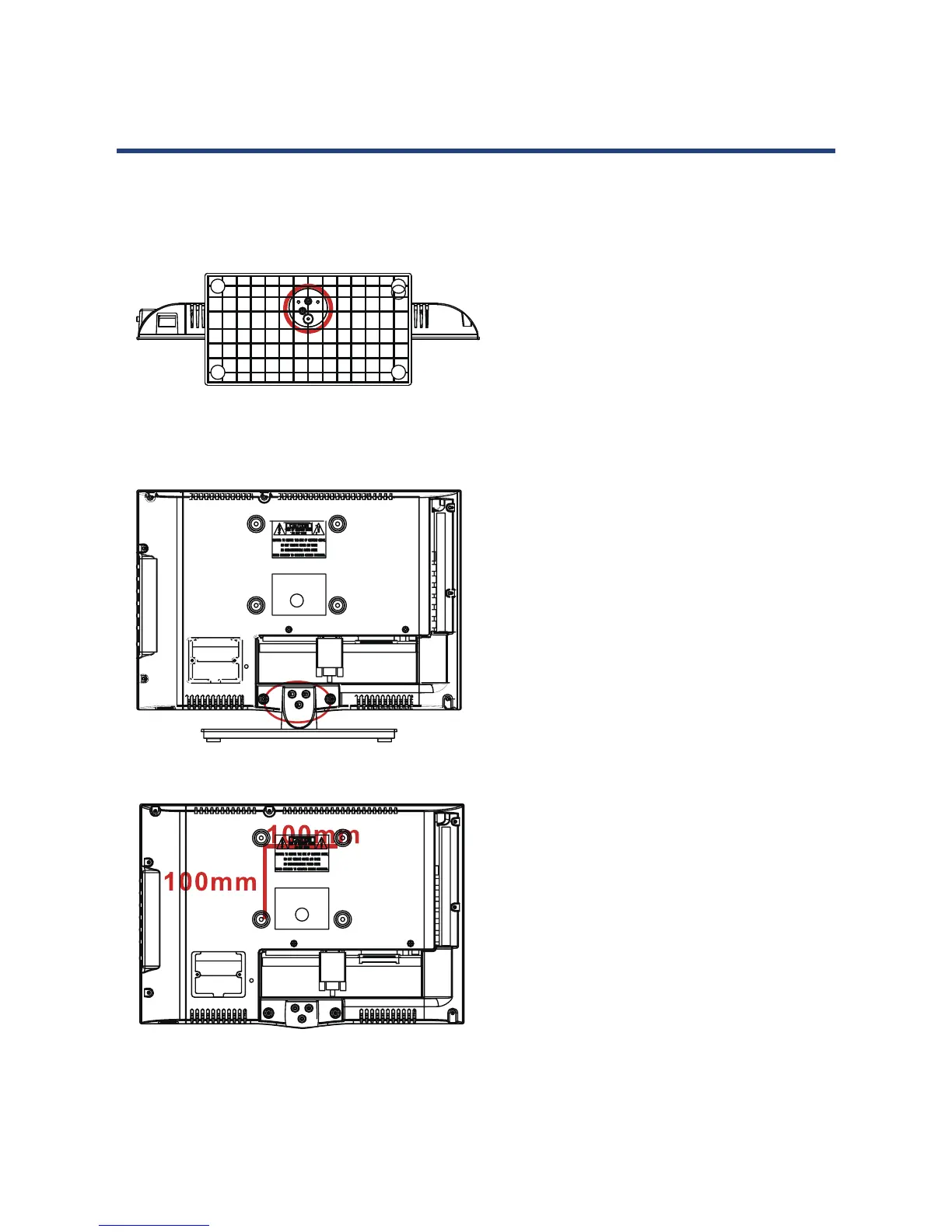

Attaching the base
To attach the stand, place the stand on the neck of the TV, insert and tighten the three screws
in the circled area.
Wall Mounting Instructions
41
Wall Mounting Instructions
Remove the Stand
To remove the stand, remove the screws in the circled area and neck will come off.
41
Wall Mounting Instructions
41
Wall Mounting Instructions
Mounting Specification: 100mm x 100mm using screw size M4 (not supplied).
Length of screw should not exceed 10mm. Please Note: The 10mm length of screw refers to
how deep the screw can go inside the mounting holes. When you are buying screws, you
should add the original 10mm to the thickness of you r mounting plate in order to get the
total screw length. If you are mounting the TV please consult a qualified installer for
further instructions on bracket support and wall support.
