GVA GVA15FLED - Connections and Functions; Front View; Back View and Control Connections

7
Connections and functions
1. DC IN: power input
2. USB: Connect to portable USB storage device
3. HDMI: Connect the HDMI output jack of DVD
4. VGA: Connect the PC-RGB output jack of PC
5. PC Audio: Connect the Audio output jack of PC
6. YPbPr(Component) output jack of DVD
7. RF: Connection the antenna
8. Headphone: Connect the earphone
9. Coax: Connect the SPDIF receiver
10. Video: Connect the VIDEO output jack of DVD
11. R/L: Connect the R/L AUDIO output jack of DVD

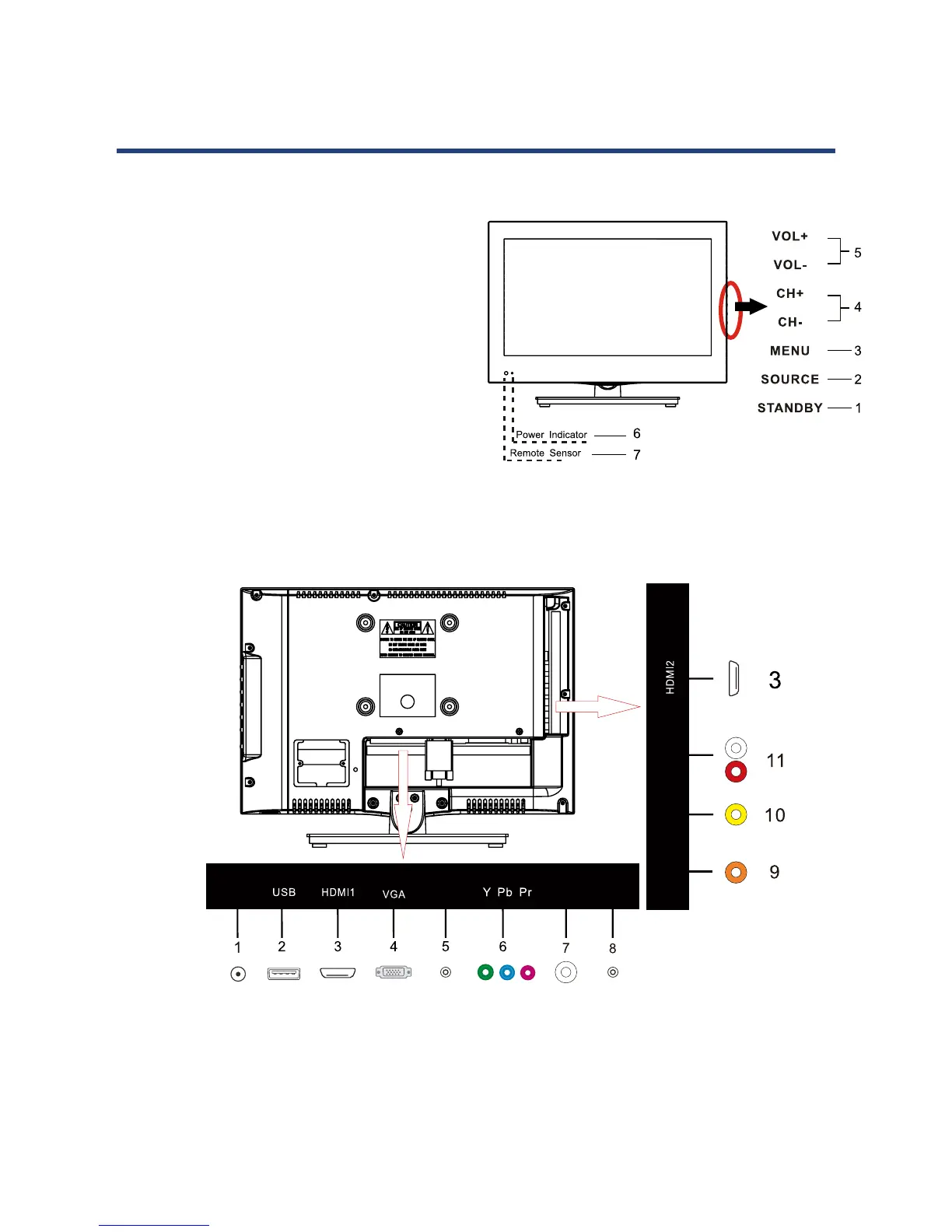

Front View
1. Press “STANDBY” button on turn standby
mode on or o.
2. Press “SOURCE” to select the input source.
3. Press “MENU” to bring up the main menu
on the screen.
4. Press “CH+” or “CH-” to scan through
channels.
5. Press “VOL+” or “VOL-” to increase or
decrease the volume.
6. POWER INDICTOR: Shows red in standby
mode, shows blue/green when your TV is
switched on.
7. REMOTE SENSOR: Infrared sensor for the
remote control.
Back View and Control Connections
1. DC IN: power input
2. USB: Connect to portable USB storage device
3. HDMI: Connect the HDMI output jack of DVD
4. VGA: Connect the PC-RGB output jack of PC
5. PC Audio: Connect the Audio output jack of PC
6. YPbPr(Component) output jack of DVD
9. Coax: Connect the SPDIF receiver
10. Video: Connect the VIDEO output jack of DVD
11. R/L: Connect the R/L audio output jack of DVD
7. RF: Connect the antenna
8. Headphone: Connect the earphone
