6
1

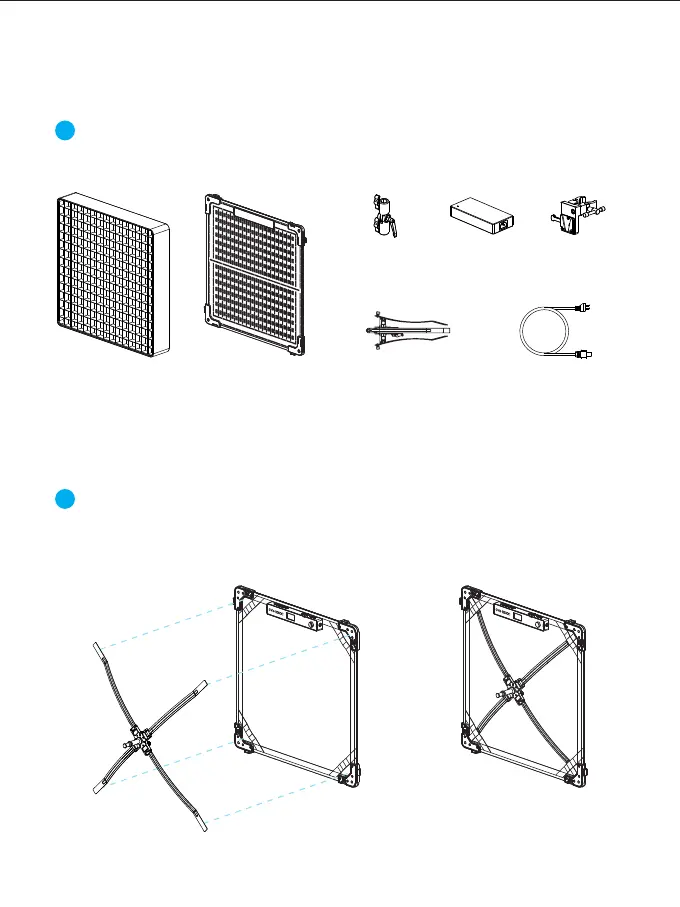

Components Introduction.
1
1
The Installation of Support Frame:
Unfold the support frame → Attach the frame to the back of the light mat as shown
in the figure below.
2
INSTALLATION METHOD
Light Mat
Softbox
AC Power Cord
Steering Seat
Adapter
Support Frame
Power Clamp
