GW Instek GDS-1072A-U - Saving All (Panel Settings, Display Image, Waveform)

SAVE/RECALL
119

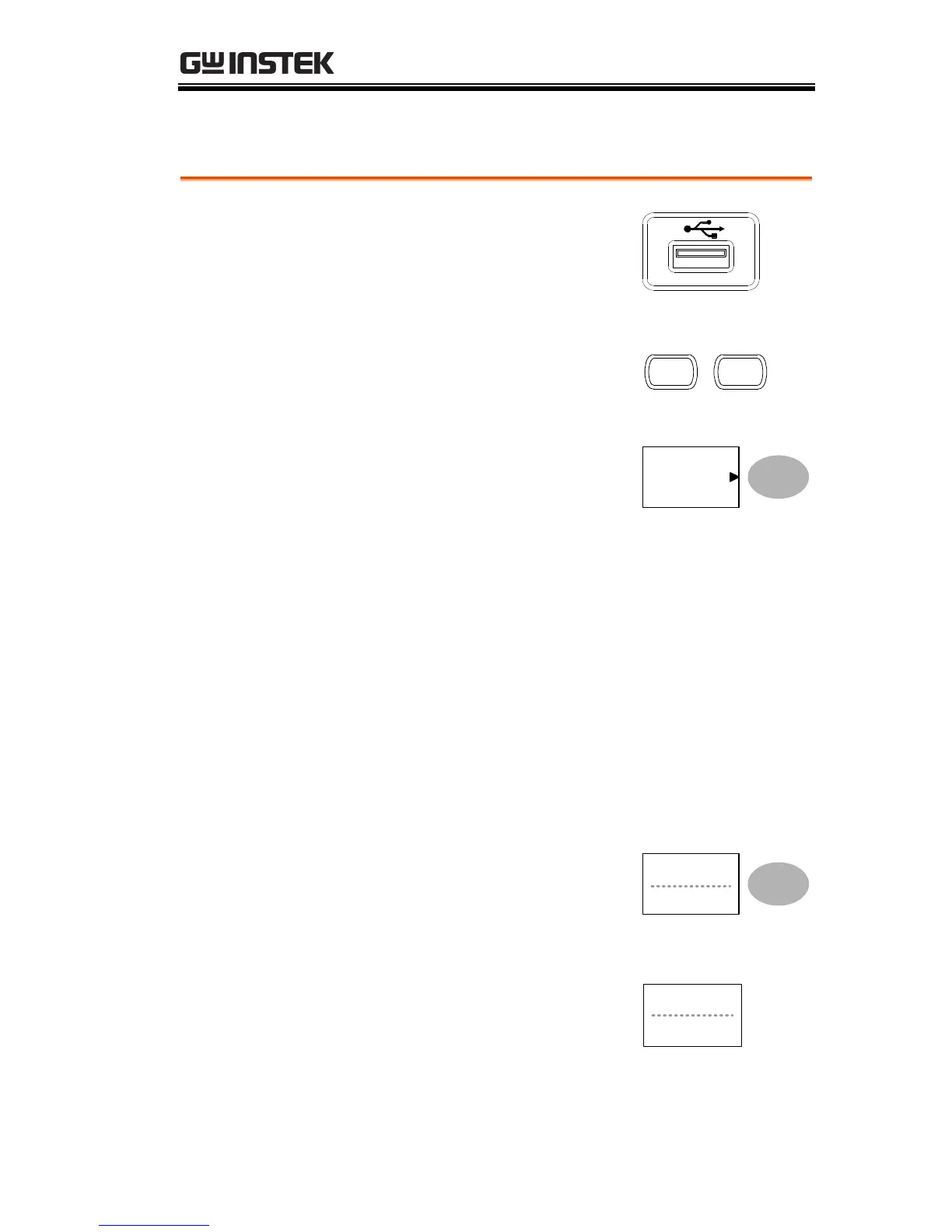

Saving all (panel settings, display image, waveform)
Procedure
1. (For saving to USB flash
drive) Insert the USB flash
drive into the front panel
USB port.
2. Press the Save/Recall key
twice to access the Save
menu.
Save/Recall
Save/Recall
3. Press Save All. The following
information will be saved.
Save
All
Setup file
(Axxxx.set)
Two types of setups are saved:
the current panel setting and
the last internally saved
settings (one of S1 ~ S15).
Display image
(Axxxx.bmp)
The current display image in
bitmap format.
Waveform data
(Axxxx.csv)
Two types of waveform data
are saved: the currently active
channel data and the last
internally saved data (one of
W1 ~ W15).
4. Press Ink Saver repeatedly to
invert the background color
(on) or not (off) for the
display image.
Ink Saver
Off
5. Press Destination.
Destination
USB 1M
USB
Normal
Save to the USB flash drive with a
4k waveform memory length.
