GW Instek GDS-1072A-U - Changing the Vertical Position and Scale

MEASUREMENT
51

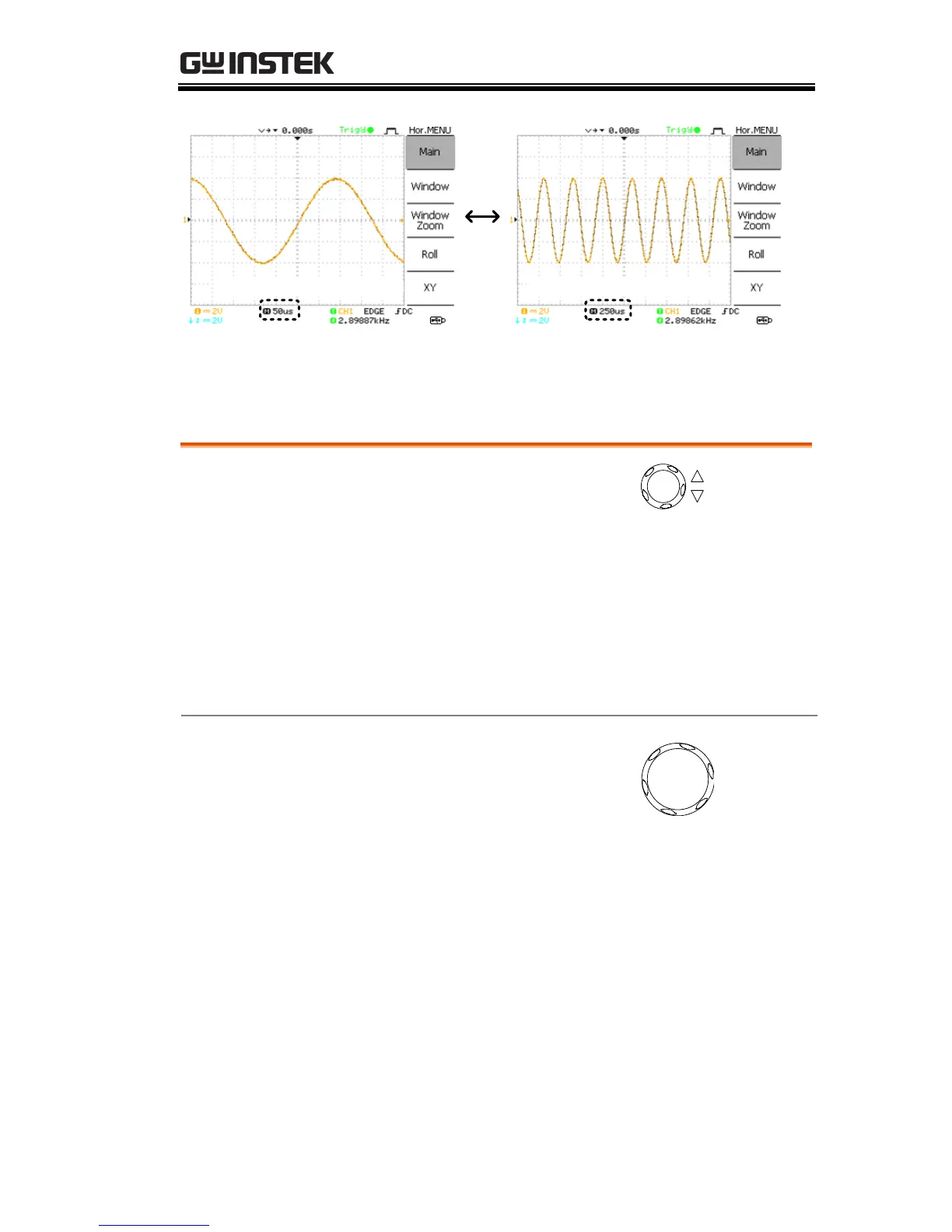

Horizontal scale: 50us/div Horizontal scale: 250us/div
Changing the vertical position and scale
For more detailed configuration, see page 90.
Set vertical
position
To move the waveform up or
down, turn the vertical position
knob for each channel.
As the waveform moves, the vertical position of
the cursor appears at the bottom left corner of the
display.
Run/Stop mode
The waveform can be moved
vertically in both Run and Stop
mode.
Select vertical
scale
To change the vertical scale,
turn the VOLTS/DIV knob; left
(down) or right (up).
VOLTS/DIV
Range
2mV/Div ~ 10V/Div, 1-2-5 increments
The vertical scale indicator for each channel on the
bottom left of the display changes accordingly.
