GDS-800 Series Digital Storage Oscilloscope Operation Manual
15

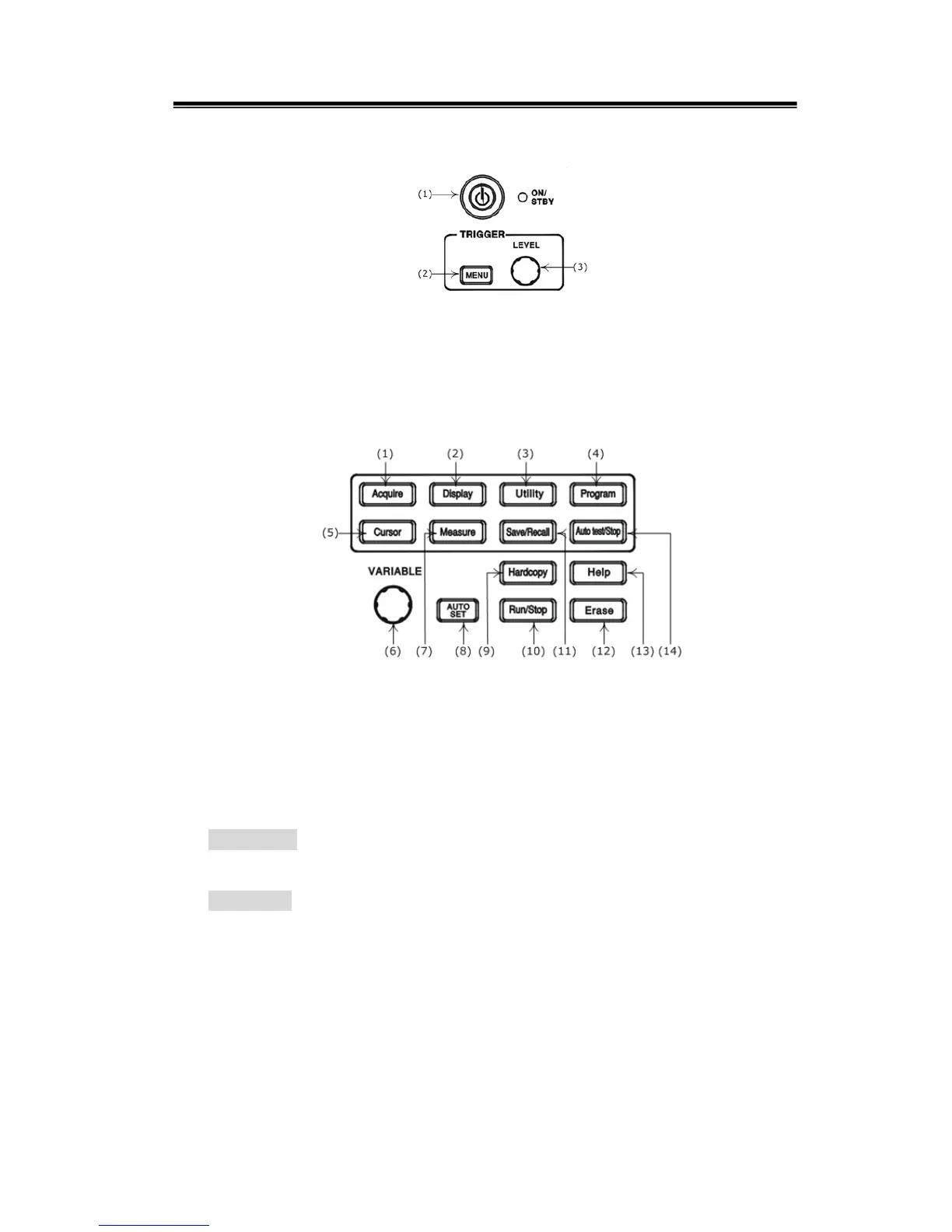

Trigger controls
(1): The power ON/STANDBY pushbutton
(2): Selects the trigger type, source and mode
(3): Adjust the trigger level
Miscellaneous controls
(1): Select the acquire modes
(2): Control the display modes
(3): Select the utility functions
(4): Sets the Program mode
(5): Select the cursor types
(6): VARIABLE knob. Multi-function knob which controls many menu functions
(7): Access the 15 automatic measurements.
(8): AUTOSET pushbutton automatically adjusts setup values to track a signal
(9): Printout a hardcopy of the LCD display.
(10): Start and stop oscilloscope acquisition.
(11): Save and recall the setups and waveforms
(12): Erases the stationary waveforms display
(13): Display build-in help files on the LCD screen
(14): Stop the replay for Program mode
