GDS-800 Series Digital Storage Oscilloscope Operation Manual
60
z Vertical / / / : Press F3 softkey to switch two
horizontal cursor modes: independent and tracking.
Vertical : Only V1 cursor is available for adjusting.
Vertical : Only V2 cursor is available for adjusting..
Vertical : Both V1 and V2 cursor in tracking mode.
Vertical : Disable both vertical cursors.
User can move only one cursor at a time using the VARIABLE knob in
independent mode. The V1 cursor is a solid line; the V2 cursor is a dot line.
In tracking mode, both cursors move in tandem by using the VARIABLE knob.
The two cursors remain a fixed distance for each other.
The reference values are also shown on the LCD screen:
V1: voltage indication of first cursor
V2: voltage indication of second cursor
△ : The difference of V1 and V2

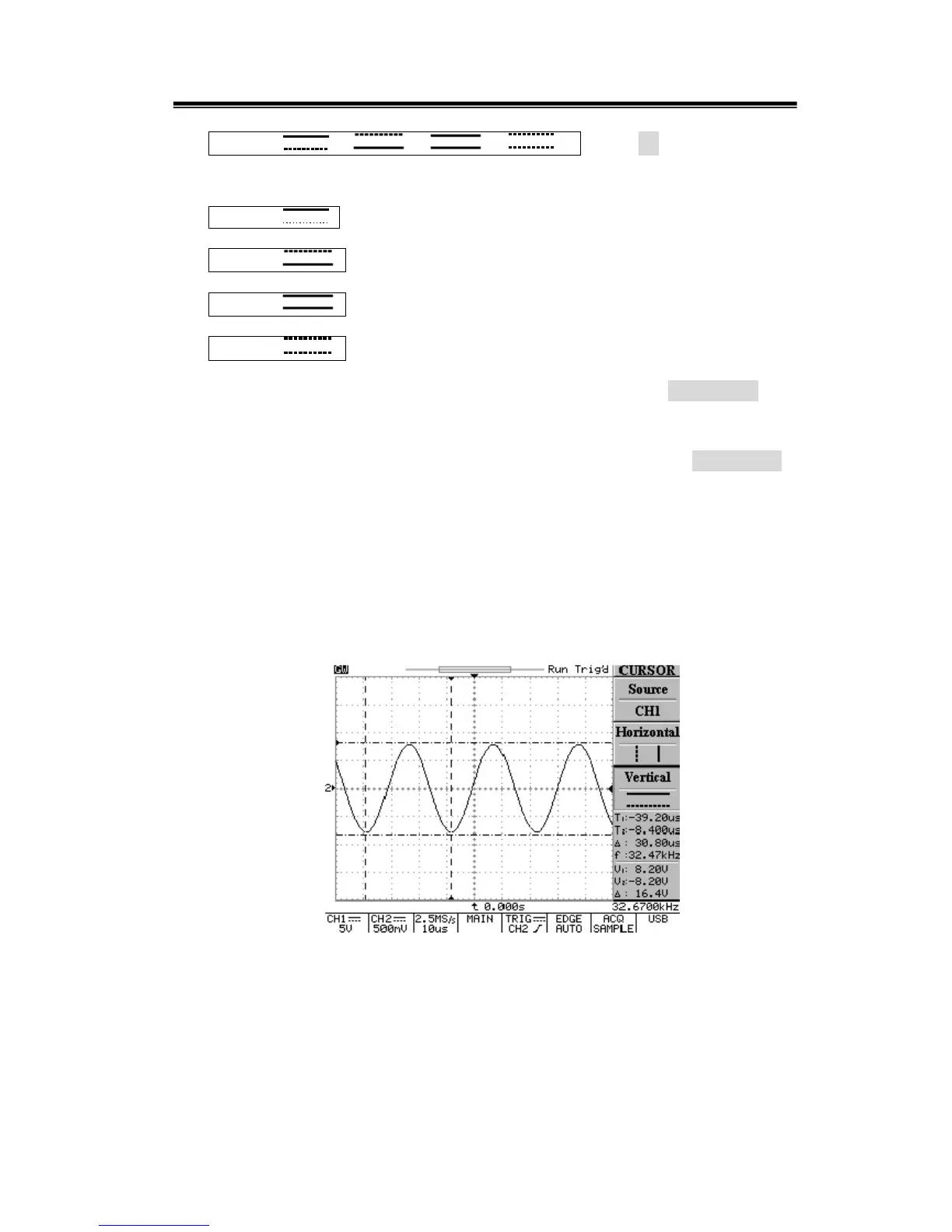

Figure 5-37: Vertical and horizontal cursors measurements
