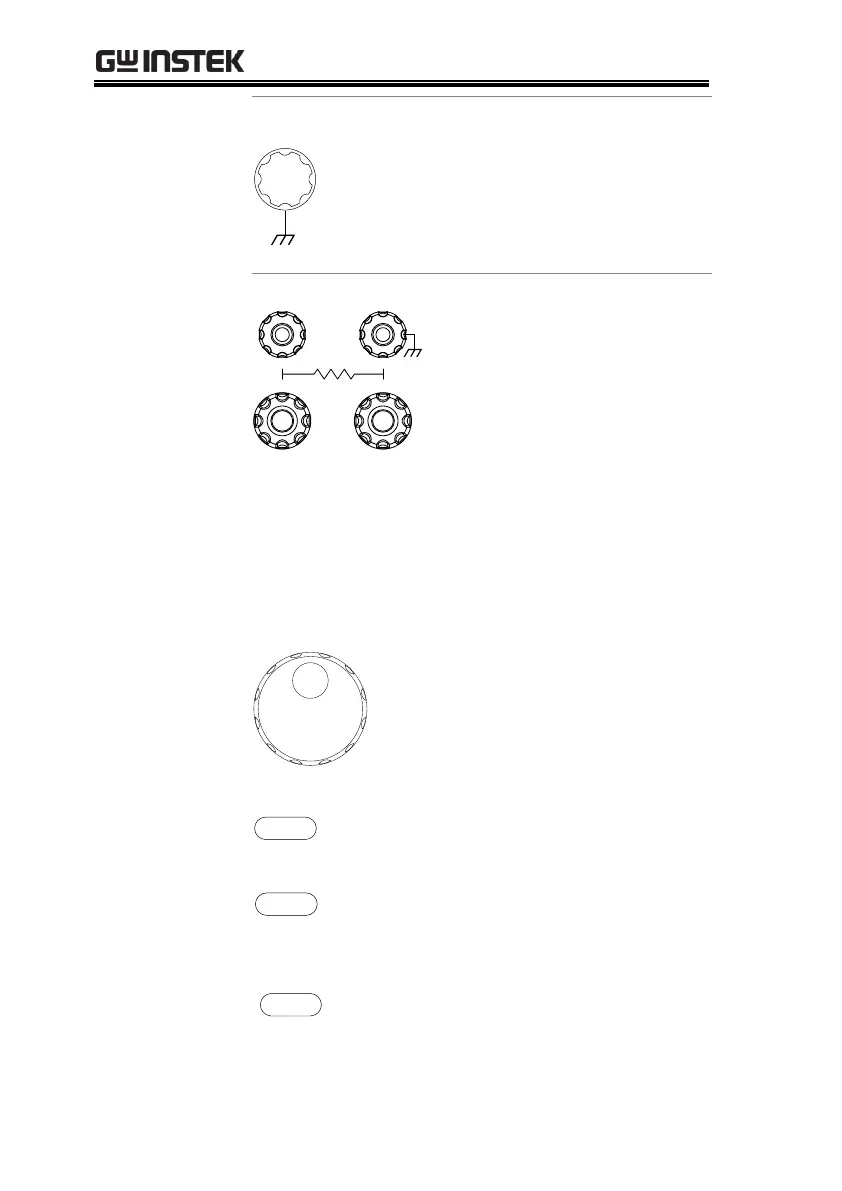

RETURN terminal
GPT-9801/9802
/9803
RETURN
The RETURN terminal is the
return terminal for all tests.
For GB testing, the RETURN
terminal is also the SENSE L
terminal.
RETURN/
SENSE L,
SENSE H,
SOURCE L,
SOURCE H
terminal
(GPT-9804)
SENSE H
Rx
SENSE L
SOURCE LSOURCE H
RETURN
The RETURN terminal is
used for IR, DCW and ACW
tests. For GB tests, it is used
as the SENSE L terminal.
SENSE H terminal for GB
tests. GPT-9804 only.
SOURCE L terminal for GB
tests. GPT-9804 only.
SOURCE H terminal for GB
test. GPT-9804 only.
Scroll wheel
The scroll wheel is used to edit
parameter values.
UTILITY key
UTILITY
Used to enter the MANU Utility or
Common Utility menu.
EDIT/SAVE key
EDIT/SAVE
Used to start editing
MANU/AUTO tests as well as
save settings and parameters.
MANU/AUTO
key
MANU/AUTO
The MANU/AUTO key is used to
select manual tests (MANU) or
automatic tests (AUTO).
