GPT-9000 Series User Manual
44
I R G B
m A
A CW D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
RA C = F FO
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m A0L ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0

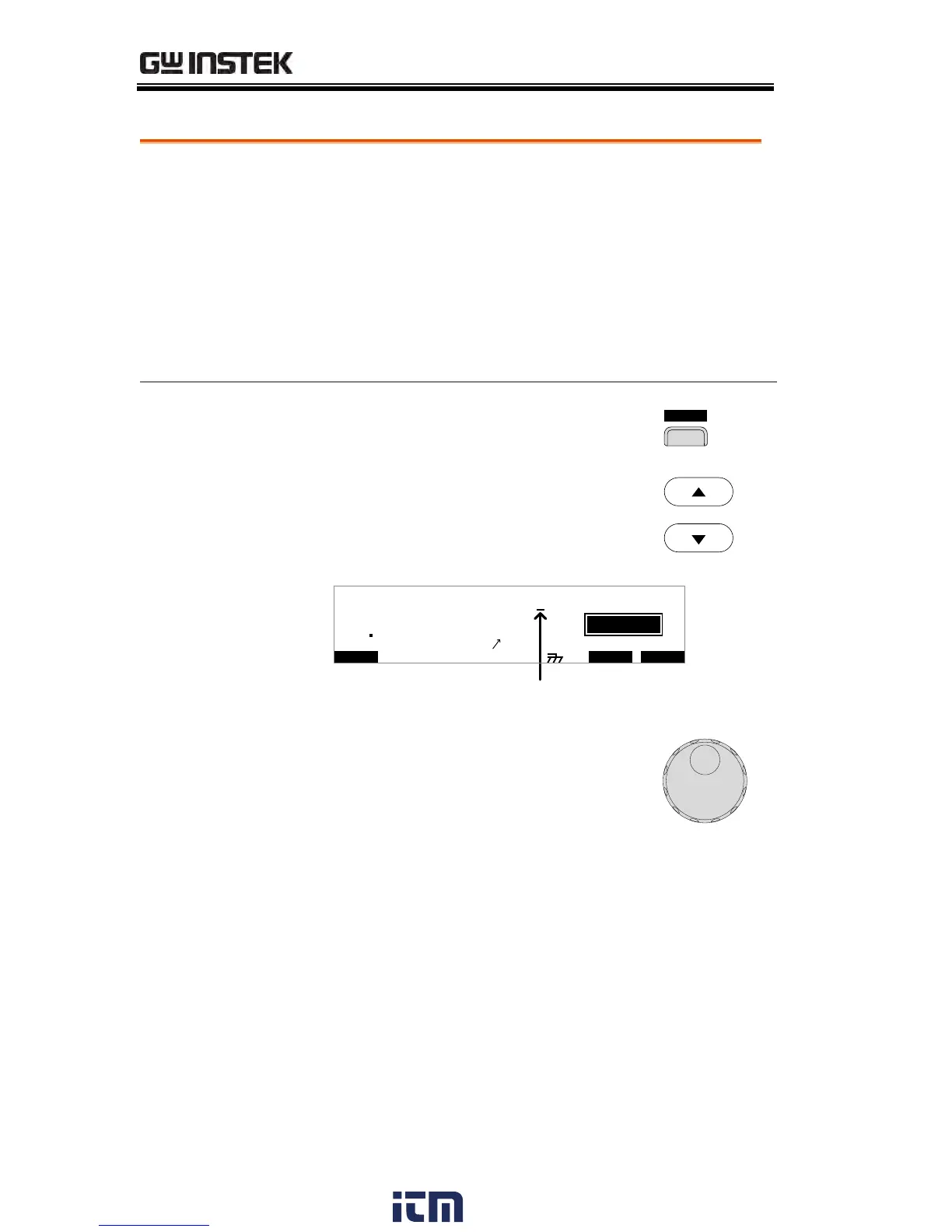

cursor
2. Use the scroll wheel to set the
TIMER value.
ACW
DCW
IR
GB
000.5s~999.9s
000.5s~999.9s
001.0s~999.9s
000.5s~999.9s
Note
With the ACW test function, when the test current
is between 30mA and 40mA, the ramp time + test
time cannot exceed 240 seconds. At this current
level, the tester also needs to pause after a test for
a time equal to or greater than the output time. See
the specifications on page 149 for details.
Special Manual
Mode
When in special MANU test mode (page 67) the
Timer can be turned off when using the DCW
or ACW test function.
Hold the TIMER soft-key for 3
seconds to turn the timer off.
I M ET R
Note
The timer can only be turned off under special
MANU test mode, however there is a limitation:
The timer cannot be turned off (limited to 240s) if
the test current is between 30mA and 40mA in
ACW mode.
The discharge time and initial test time cannot be
edited.
