2-22

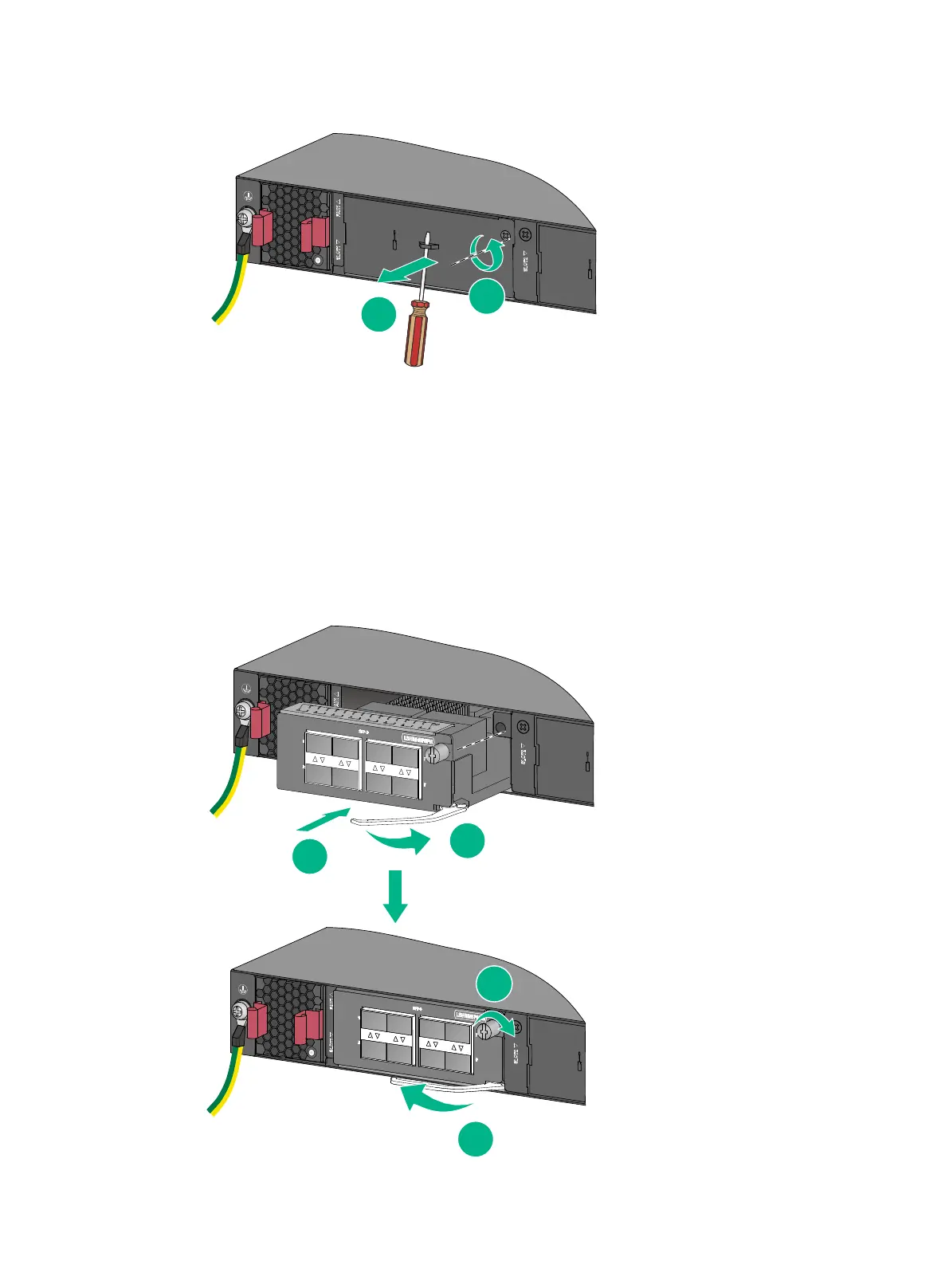

Figure2-23 Removing the filler panel from the target expansion slot
3. Unpack the expansion card.
4. (Optional.) If the expansion card has an ejector lever, perform the following steps to install it:
a. Fully open the ejector lever, as shown by callout 1 in Figure2-24.
b. Gently push the expansion card into the slot along the guide rails until the expansion card
has good contact with the chassis. See callout 2 in Figure2-24.
c. Close the ejector lever, as shown by callout 3 in Figure2-24.
d. Use a Phillips screwdriver to fasten the captive screw on the expansion card to secure the
card in the slot. See callout 4 in Figure2-24.
Figure2-24 Installing an expansion card with an ejector lever (LSWM4SP8PM)
