H3C S5560X-HI Series Installation Guide

4-38
Connecting the IRF member switches in one rack

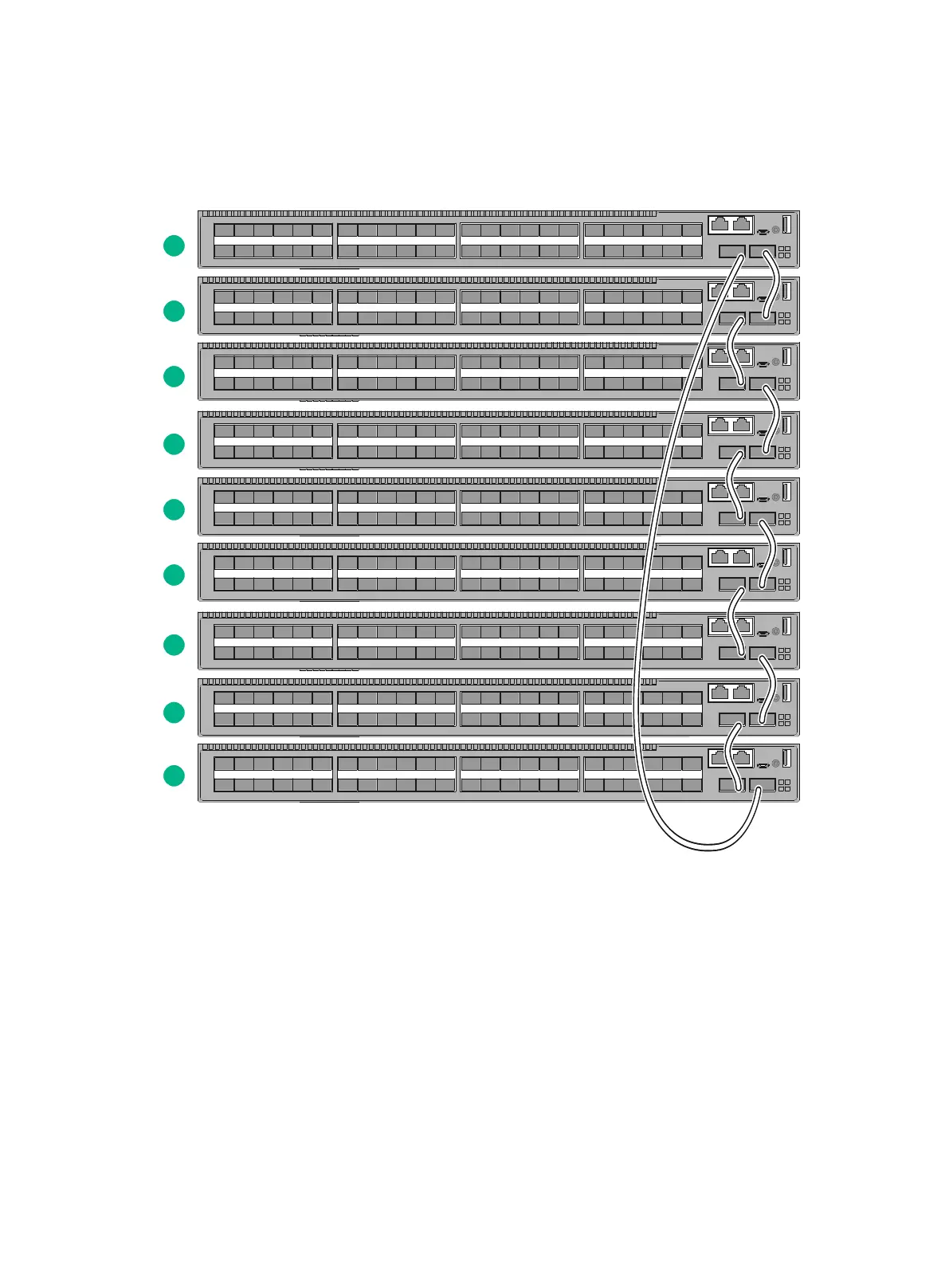

Connect the IRF member switches (9 switches in this example) in a rack as shown in Figure4-4. The
switches in the ring topology (see Figure4-5) are in the same order as connected in the rack.
Figure4-4 Connecting the switches in one rack
1
2
3
4
5
6
7
8
9
