8

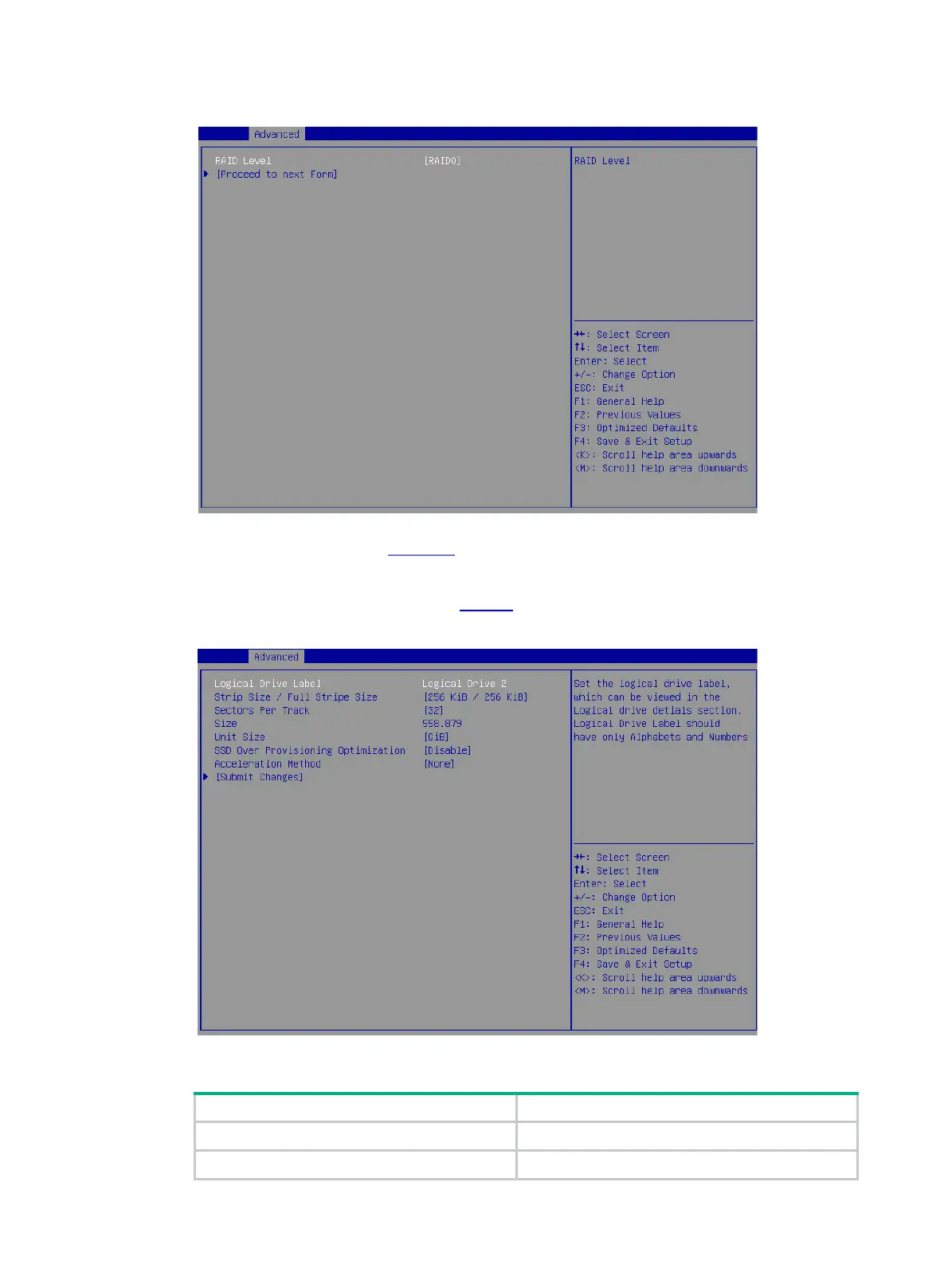

Figure 11 Setting the RAID level
5. On the screen as shown in Figure 12, set the values for Logical Drive Label, Stripe Size/Full
Stripe Size, Sectors Per Track, Size, Unit Size, SSD Over Provisioning Optimization, and
Acceleration Method. Then, select Submit Changes and press Enter. For more information
about the parameter description, see Table 2.
Figure 12 Configuring RAID parameters
Table 2 Parameter description
Logical Drive Label RAID array name.
Stripe Size Data block size for each drive.
