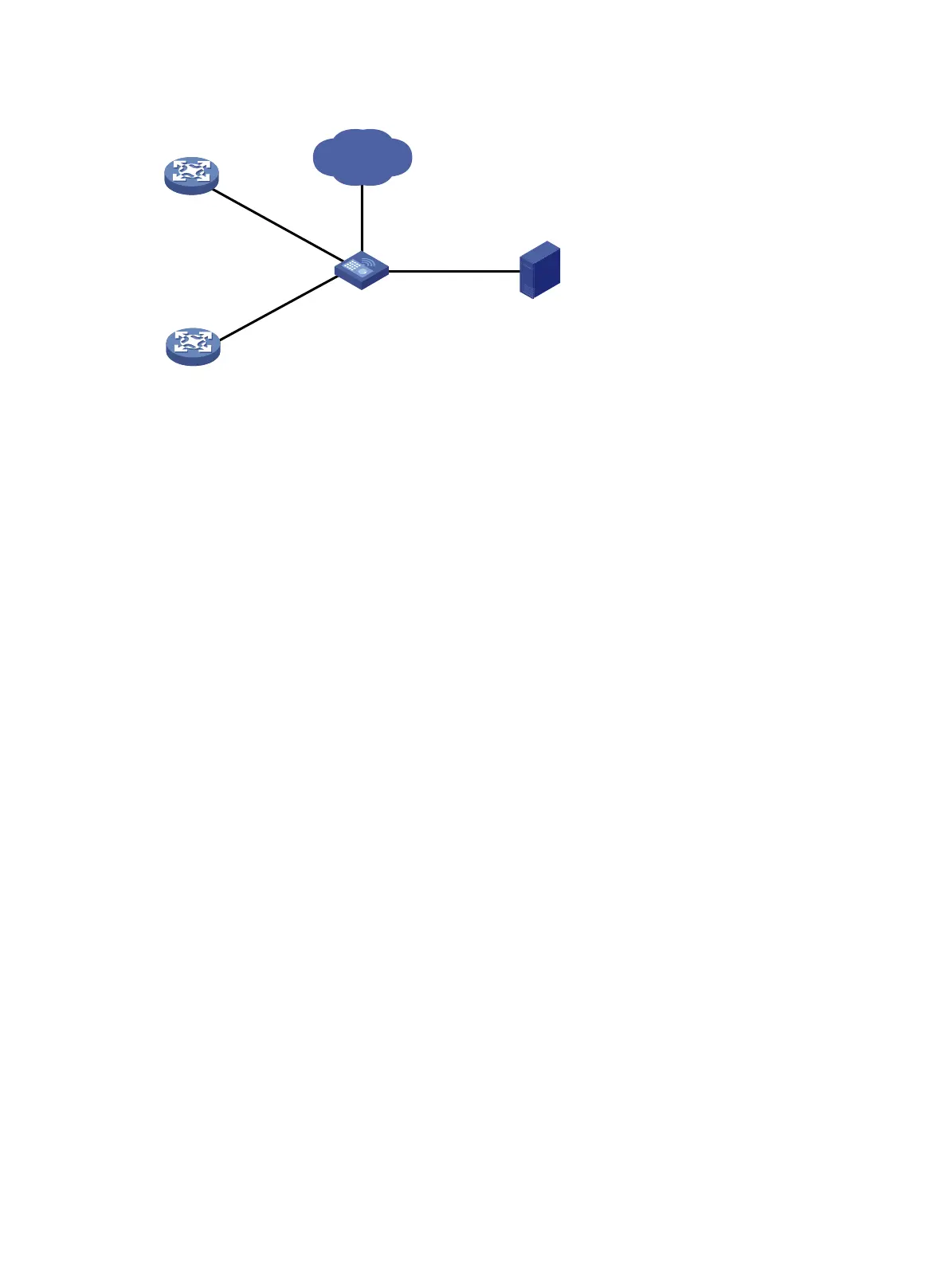

Figure 5 Network diagram
Configuration procedure
# Assign port priority to GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2. Make sure the following
requirements are met:
• The priority of GigabitEthernet 1/0/1 is higher than that of GigabitEthernet 1/0/2.
• No trusted packet priority type is configured on GigabitEthernet 1/0/1 or GigabitEthernet 1/0/2.
<AC> system-view
[AC] interface gigabitethernet 1/0/1
[AC-GigabitEthernet1/0/1] qos priority 3
[AC-GigabitEthernet1/0/1] quit
[AC] interface gigabitethernet 1/0/2
[AC-GigabitEthernet1/0/2] qos priority 1
[AC-GigabitEthernet1/0/2] quit
