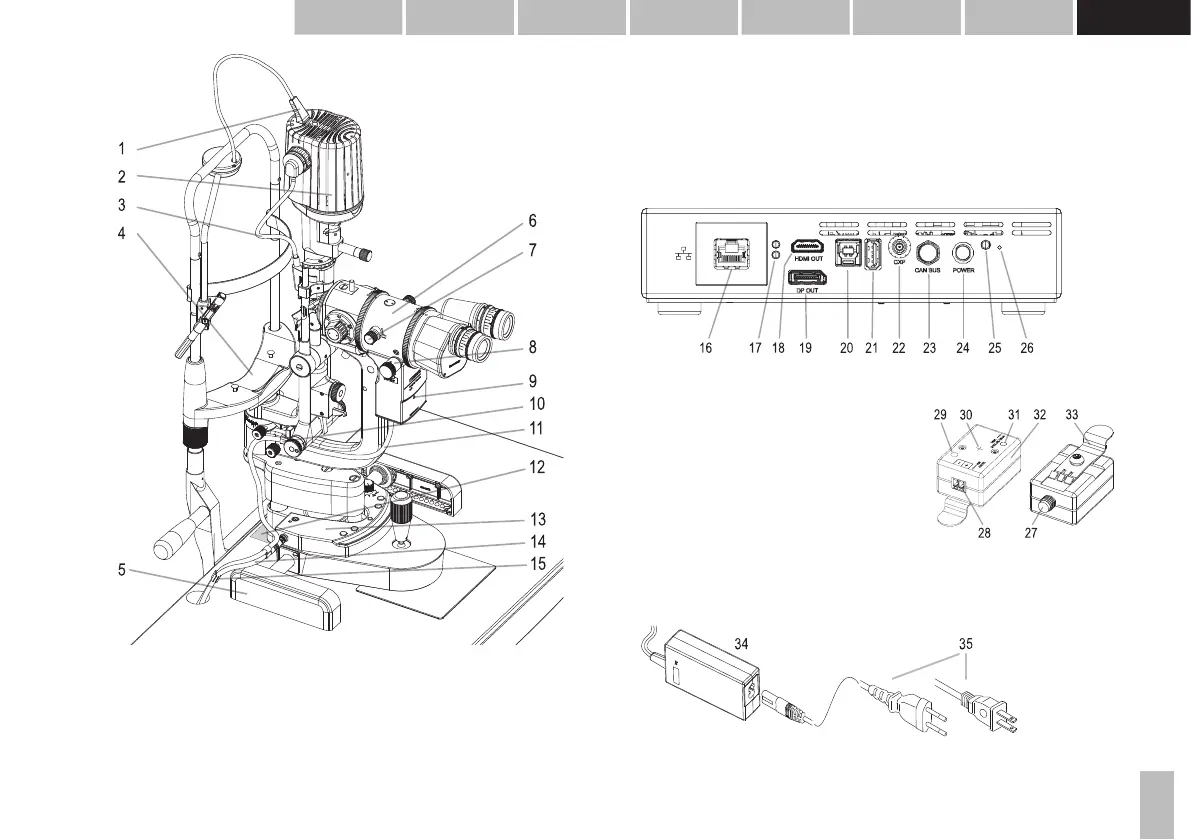

3.6 Connector box CB01
16. Ethernet socket
17. Indicator LED for ethernet
18. HDMI socket
19. Displayport socket
20. USB 3.0 socket
21. USB 2.0 socket
22. CoaXPress socket (CXP)
23. CAN bus socket
24. Power socket
25. Indicator LED of CB01
26. Reset button
3.7 Position sensor PoS01
27. CAN bus socket
28. Control input
29. Dip switches
30. Magnetic switch zone
31. Indicator LED
32. Terminal block
33. DIN rail clip
3.8 Power supply
34. Power supply 35. Mains connector (country-depend-
ent)
