10.6.4 Electromagnetic immunity environment tested (part 2)
Portable and mobile RF communications equipment should be used no closer to any part of this product, including cables, than the recommended separation distance calcu-
lated from the equation applicable to the frequency of the transmitter.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Field strengths
from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast
cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be consid-
ered.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance
Conducted RF
IEC 61000-4-6
3 V
rms
150 kHz – 80 MHz outside ISM
bands and radio amateur band *
6 V
rms
150 kHz – 80 MHz in ISM bands
and radio amateur band *
10 V
rms
150 kHz – 80 MHz outside ISM
bands and radio amateur band *
10 V
rms
150 kHz – 80 MHz in ISM bands
and radio amateur band *
If the measured field strength in the location in which this product
is used exceeds the applicable RF compliance level, this product
should be observed to verify normal operation. If abnormal perfor-
mance is observed, additional measures may be necessary, such
as reorienting or relocating this product.

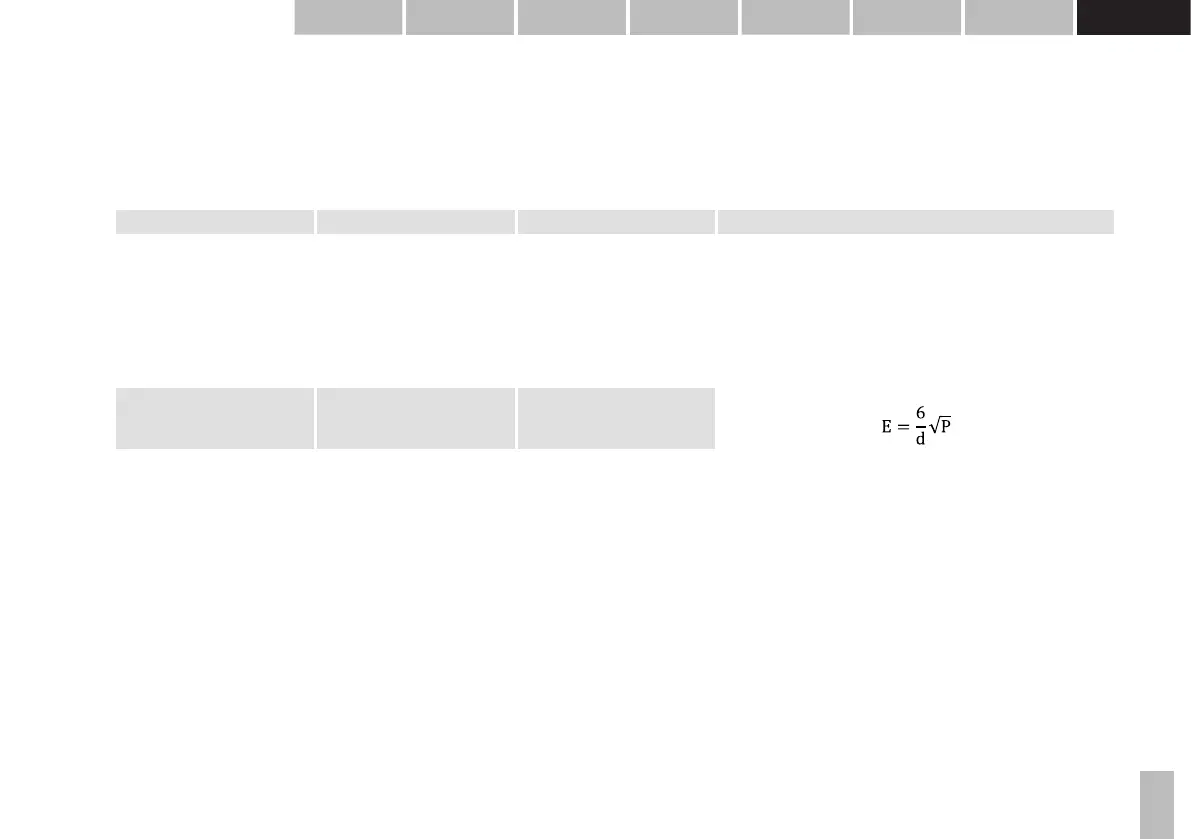

Minimum separation distance shall be calculated by following
equation:
E is the immunity test level in [V/m]
d is the minimum separation in [m]
P is the maximum power in [W]
RF wireless equipment maximum output power and separa-
tion distance tested (at 30 cm):
TETRA 400: max 1.8 W
GMRS 460, FRS 460: max 2 W
LTE Band 13 and 17: max 0.2 W
GSM 800/900: max 2 W
TETRA 800: max 2 W
iDEN 820: max 2 W
CDMA 850: max 2 W
LTE Band 5: max 2 W
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz – 6 GHz
80% AM 1 kHz
10 V/m
80 MHz – 6 GHz
80% AM 1 kHz
Proximity field from RF wireless
communication equipment
IEC 61000-4-3
27 V/m
380 – 390 MHz
50% PM 18 Hz
28 V/m
430 – 470 MHz
FM ± 5 kHz deviation, 1kHz sine
9 V/m
704 – 787 MHz
50% PM 217 Hz
28 V/m
800 – 960 MHz
50% PM 18 Hz
28 V/m
1700 – 1990 MHz
27 V/m
380 – 390 MHz
50% PM 18 Hz
28 V/m
430 – 470 MHz
FM ± 5 kHz deviation, 1kHz sine
9 V/m
704 – 787 MHz
50% PM 217 Hz
28 V/m
800 – 960 MHz
50% PM 18 Hz
28 V/m
1700 – 1990 MHz
