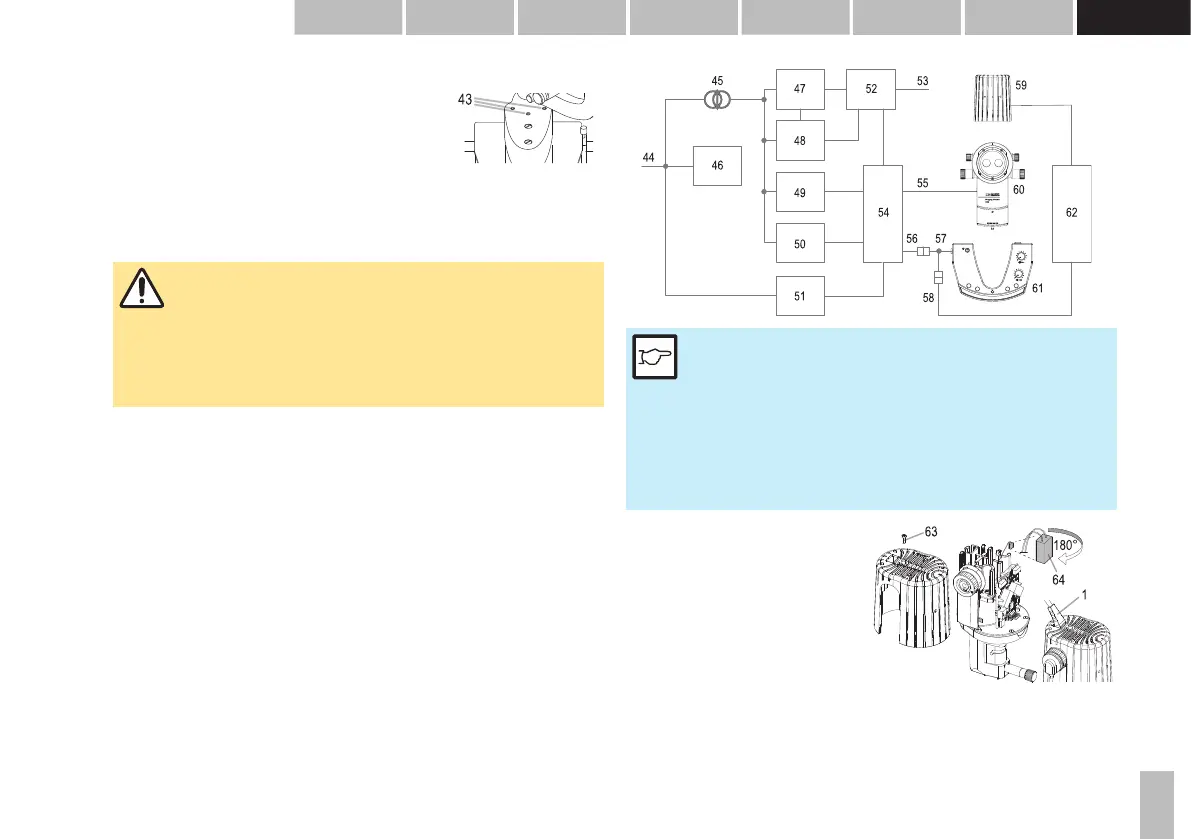

4.3 Weight compensation facility
43. Setting screws weight compensation facility
The slit lamp's crosstree carriage offers the option of
balancing the weight of the accessory so that the
height adjustment on the joystick remains smooth (43).
To do so, please follow the instructions in the instruc-
tion manual for the slit lamp.
4.4 Cabling of the CM04 and the RM03 (diagram)
WARNING!
• Only use medically approved PCs or operate via a medically ap-
proved isolating transformer.
• Auxiliary units on the connector box CB01 (e.g. monitor HDMI, mon-
itor Displayport) must be operated through an isolating transformer.
• The power supply unit's mains connector must be accessible in or-
der to allow for disconnection from the mains at any time.
44. Mains
45. Medical approved isolating trans-
former
46. Instrument table (IT)
47. Printer
48. Personal computer
49. Monitor HDMI
50. Monitor Displayport
51. Medical approved power supply
52. Ethernet switch
53. Local network
54. Connector box
55. Cable CXP (camera cable)
56. Cable M8 (CAN-BUS)
57. Cable distributor
58. Cable headrest
59. LED illumination LI02 plus
60. Camera module CM04
61. Release module RM03
62. Headrest
NOTE!
• To ensure that the system works correctly, Haag-Streit recommends
not using laptops and using a high-quality desktop computer in-
stead.
• The release module RM03 only works properly with a LED illumina-
tion LI02 plus. The functions with older versions of LED illumination
cannot be guaranteed.
• Do not cover the connector box CB01, as the box can overheat and
shut down.
63. Fastening screw
64. Two-pole connection plug
If the middle LED lights up red during
operation, the two-pole connection
plug (64) is connected incorrectly.
