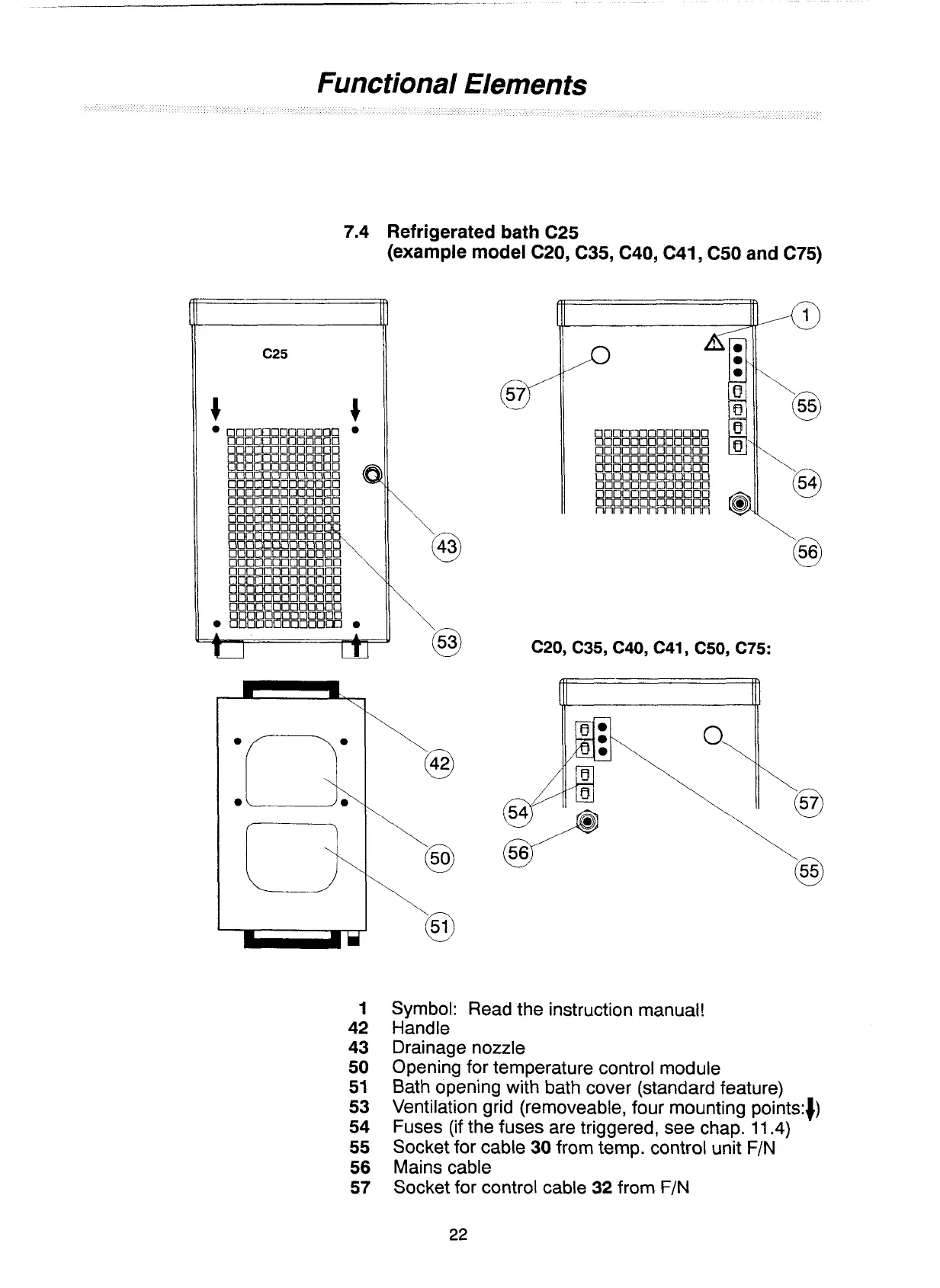

Functional Elements
7.4
Refrigerated bath
C25
(example model
C20, C35, C40, C41
,
C50
and
C75)
Symbol: Read the instruction manual!
Handle
Drainage nozzle
Opening for temperature control module
Bath opening with bath cover (standard feature)
Ventilation grid (removeable, four mounting points:{)
Fuses
(if
the fuses are triggered, see chap.
11.4)
Socket for cable
30
from temp. control unit FIN
Mains cable
Socket for control cable
32
from
FIN
