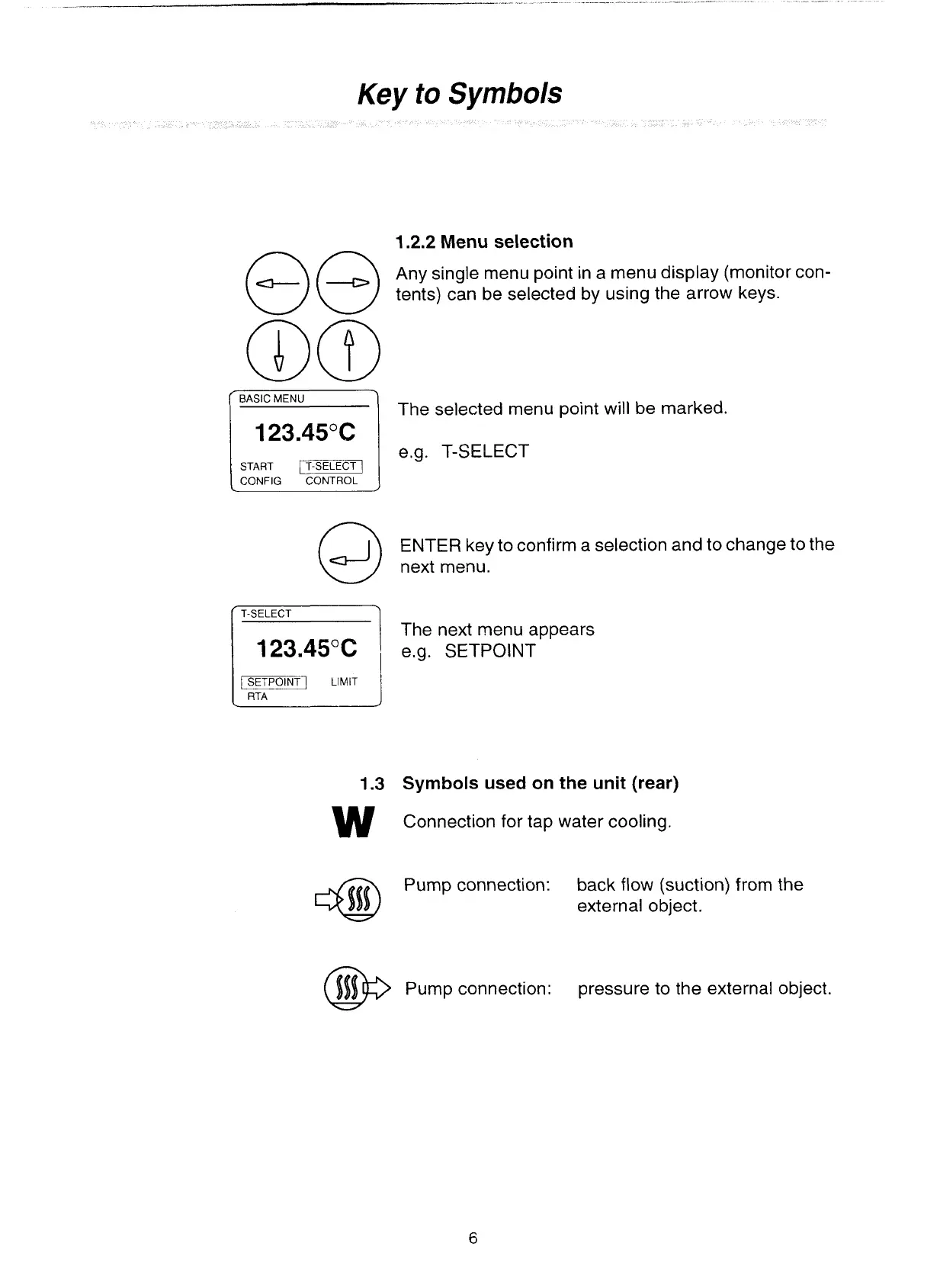

Key to Symbols

1.2.2

Menu selection

Any single menu point in a menu display (monitor con-

tents) can be selected by using the arrow keys.

BASIC

The selected menu point will be marked.

ENTER key to confirm a selection and to change to the

next menu.

123.45OC

START

p-1

CONFIG CONTROL

(

T-SELECT

The next menu amears

e.g.

T-SELECT

-1

LIMIT

RTA

1.3

Symbols

used on the unit

(rear)

Connection for tap water cooling.

Pump connection:

back flow (suction) from the

external object.

Pump connection: pressure to the external object.
