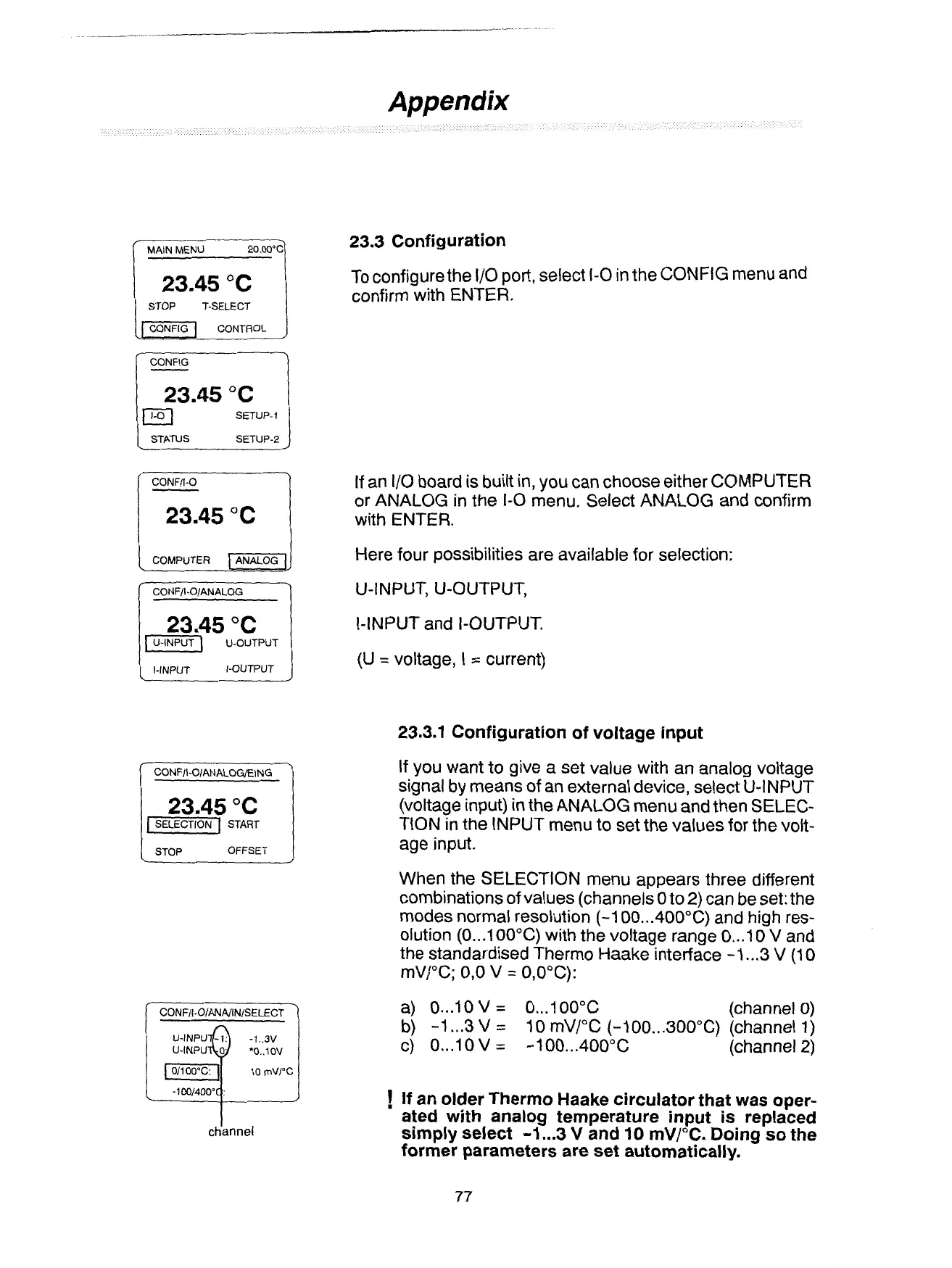

Configuration
To configure the I/O port, select
1-0
in the CONFIG menu and
confirm with ENTER.
If an
110 board is built in, you can choose either COMPUTER
or ANALOG in the
1-0
menu. Select ANALOG and confirm
with ENTER.
Here four possibilities are available for selection:
U-I NPUT, U-OUTPUT,
I-INPUT and I-OUTPUT.
(U
=
voltage,
I
=
current)
23.3.1
Configuration
of
voltage input
If you want to give a set value with an analog voltage
signal
by
means of an external device, select U-INPUT
(voltage input) in the ANALOG menu and then SELEC-
TION in the INPUT menu to set the values for the volt-
age input.
When the SELECTION menu appears three different
combinations of values (channels
0 to
2)
can be set: the
modes normal resolution (-1 00
...
400°C) and high res-
olution (0
...
100°C) with the voltage range 0...10
V
and
the standardised Thermo Haake interface
-1
...
3
V
(1 0
mV/"C; 0,O
V
=
O,O°C):
a) 0...10
V
=
O...lOO°C (channel
0)
b)
-1
...
3
V
=
10 mV/OC (-1 00
...
300°C) (channel 1)
c) 0...10
V
=
-10O...40O0C (channel
2)
!
If an older Thermo Haake circulator that was oper-
ated
with
analog temperature input
is
replaced
simply
select
-1
...
3
V
and
10
mV/"C.
Doing so the
former parameters are set automatically.
