Section 4 User interface and navigation
4.1 User interface

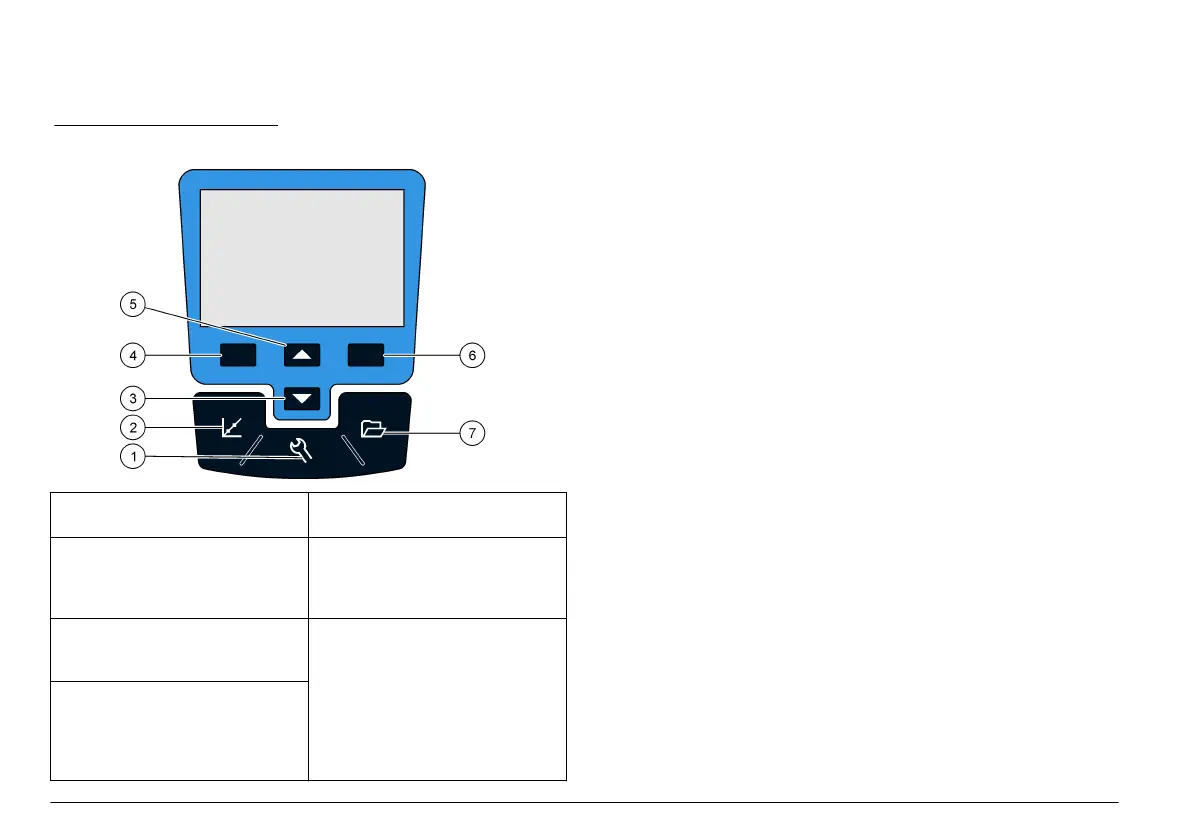

Figure 4 Keypad description
1 SETTINGS key: select menu
options for setting up the meter
5 UP key: scroll through menus,
enter numbers and letters
2 CALIBRATION key: shows
calibration screen, start
calibration, select cal options
6 RIGHT key (contextual): read
turbidity sample, selects or
confirms options, opens/jumps
to sub-menus
3 DOWN key: scroll through
menus, enter numbers and
letters
7 DATA MANAGEMENT key:
view, delete or transfer stored
data
4 LEFT key (contextual): access
for calibration verification,
cancels or exits the current
menu screen to the previous
menu screen
4.2 Display description
The measurement screen shows the turbidity, unit, calibration status,
date and time, operator ID (if setup) and sample ID (if setup). Refer to
Figure 5.
8 English
