User Interface and Navigation

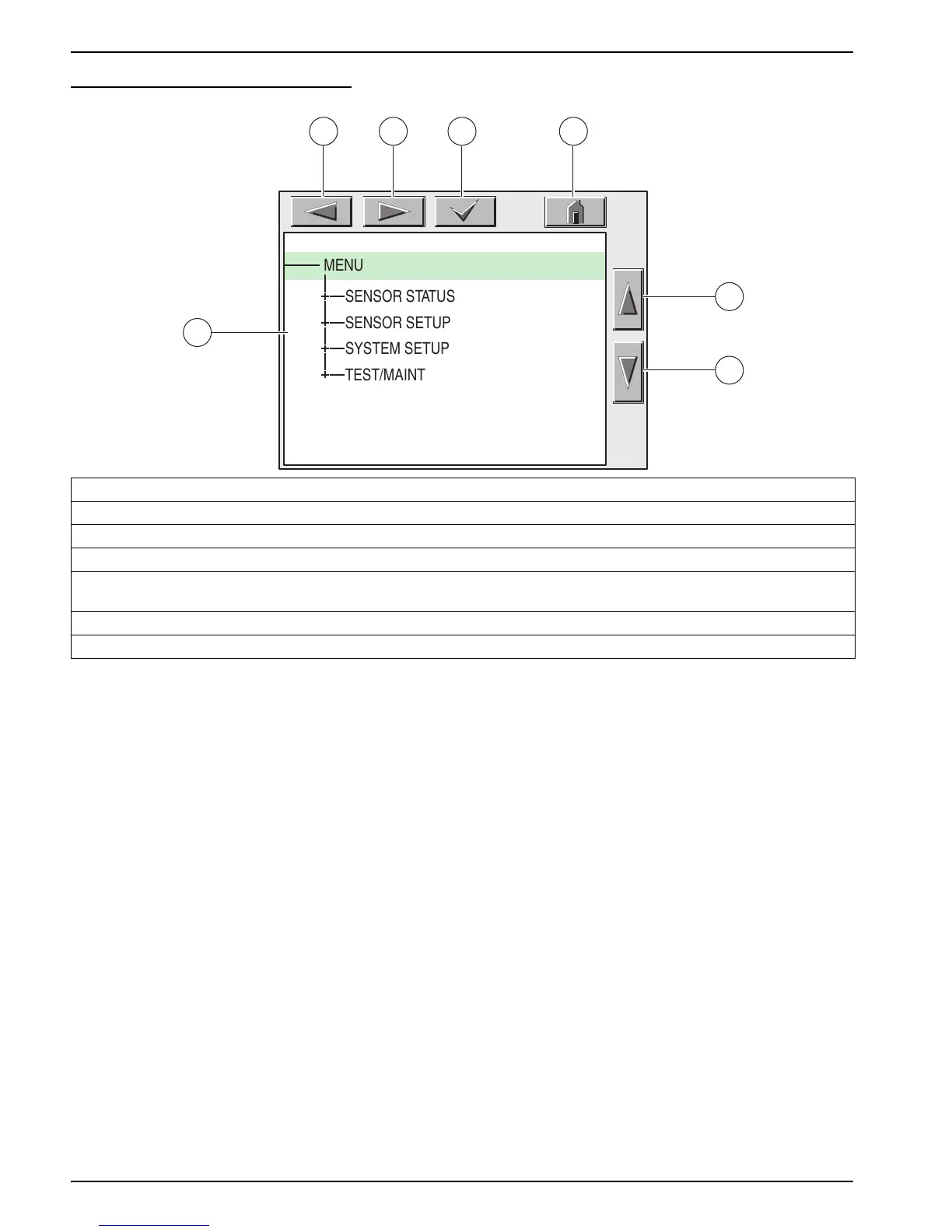

Figure 9 Main Menu
4.2.1.3 Navigating the Menu Windows
To view a menu item, touch the menu item or use the UP and DOWN keys to highlight the
item. The menu item remains highlighted for approximately 4 seconds after it is selected.
To view the highlighted command, select the area to the left of the menu item or select the
ENTER button.
A “+” next to a menu command indicates there is a submenu. Touch the “+” to view the
submenu. An “i” next to a menu command indicates it is information only.
If a menu item is editable, highlight the item and touch the far-left part of the menu item
until it is highlighted and press
ENTER or double-tap the highlighted item. A keypad will be
displayed to change an entry (Figure 11 on page 19) or a list box will be displayed
(Figure 12 on page 20).
Messages are displayed in the message window (Figure 13 on page 20).
If an entry is incorrect, repeat the entry with the correct values. If the entry is outside the
working range, a correction to the entry is made automatically.
1. Display Area
2.
BACK
3. FORWARD
4. ENTER–confirms the entry or selection.
5.
HOME–changes to the display of measured values. The pop-up toolbar cannot open from the menu window. To view the
Main Menu from this display, touch the Home button and then the bottom of the screen.
6.
UP–scrolls up
7.
DOWN–scrolls down
MENU
SENSOR STATUS
SENSOR SETUP
SYSTEM SETUP
TEST/MAINT
1
6
7
2
3
4
5
To Next Page
