Section 3 Installation
3.1 Installation overview
Figure 4 shows an example of a NITRATAX sc sensor attached to an sc controller with a
bracket installation option.
CAUTION
Installation of this system may only be carried out by qualified experts in accordance with all local
safety regulations.See the mounting instruction sheet for more information.

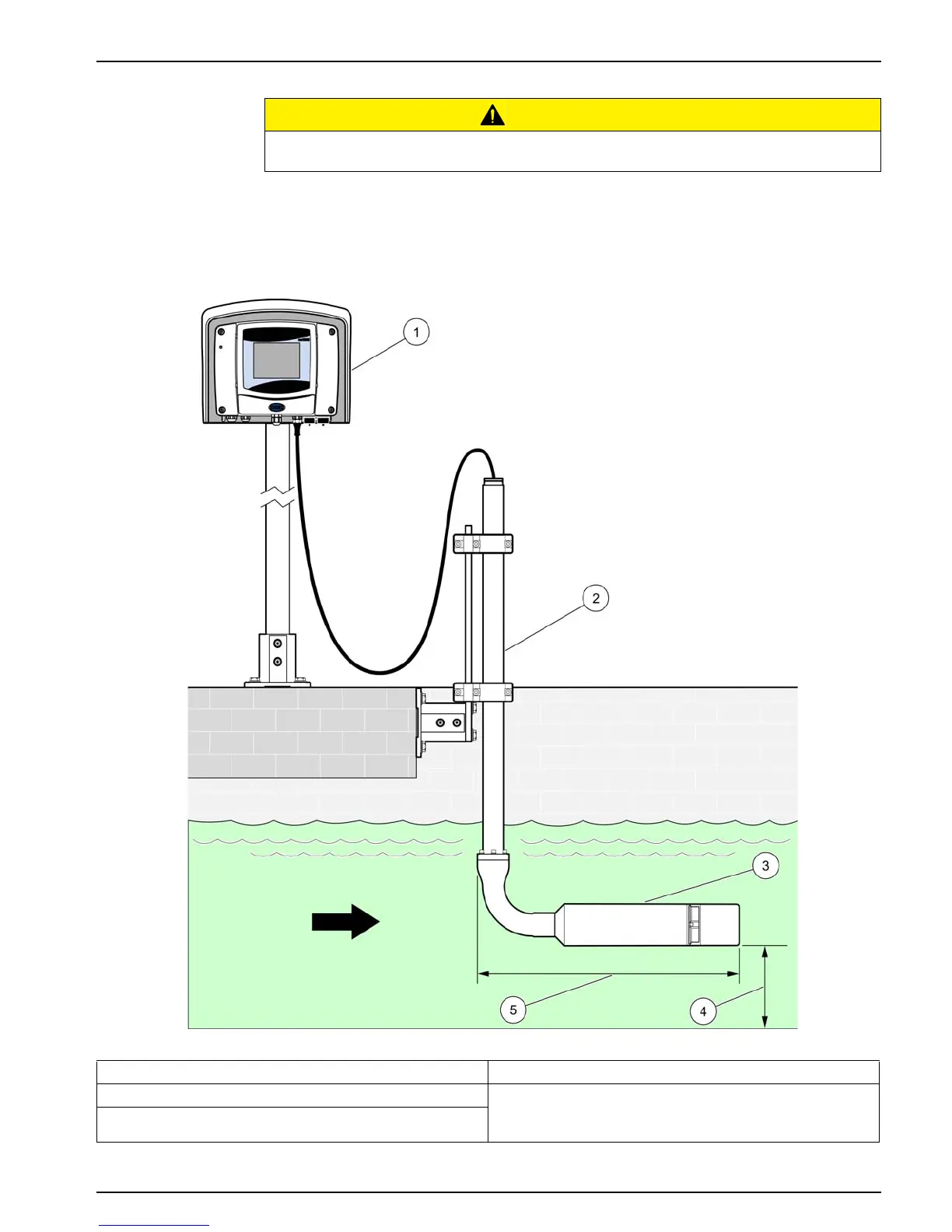

Figure 4 Installation example with optional accessories
1 sc controller with optional sun roof 4 Minimum distance of 100 mm (3.94 in.) to the ground
2 Sensor bracket 5 NITRATAX plus sc: 468–472 mm (18.4–19.6 in.)
NITRATAX eco sc: 466 mm (18.3 in.)
NITRATAX clear sc: 462 mm (18.1 in.)
3 NITRATAX sc sensor
