General information

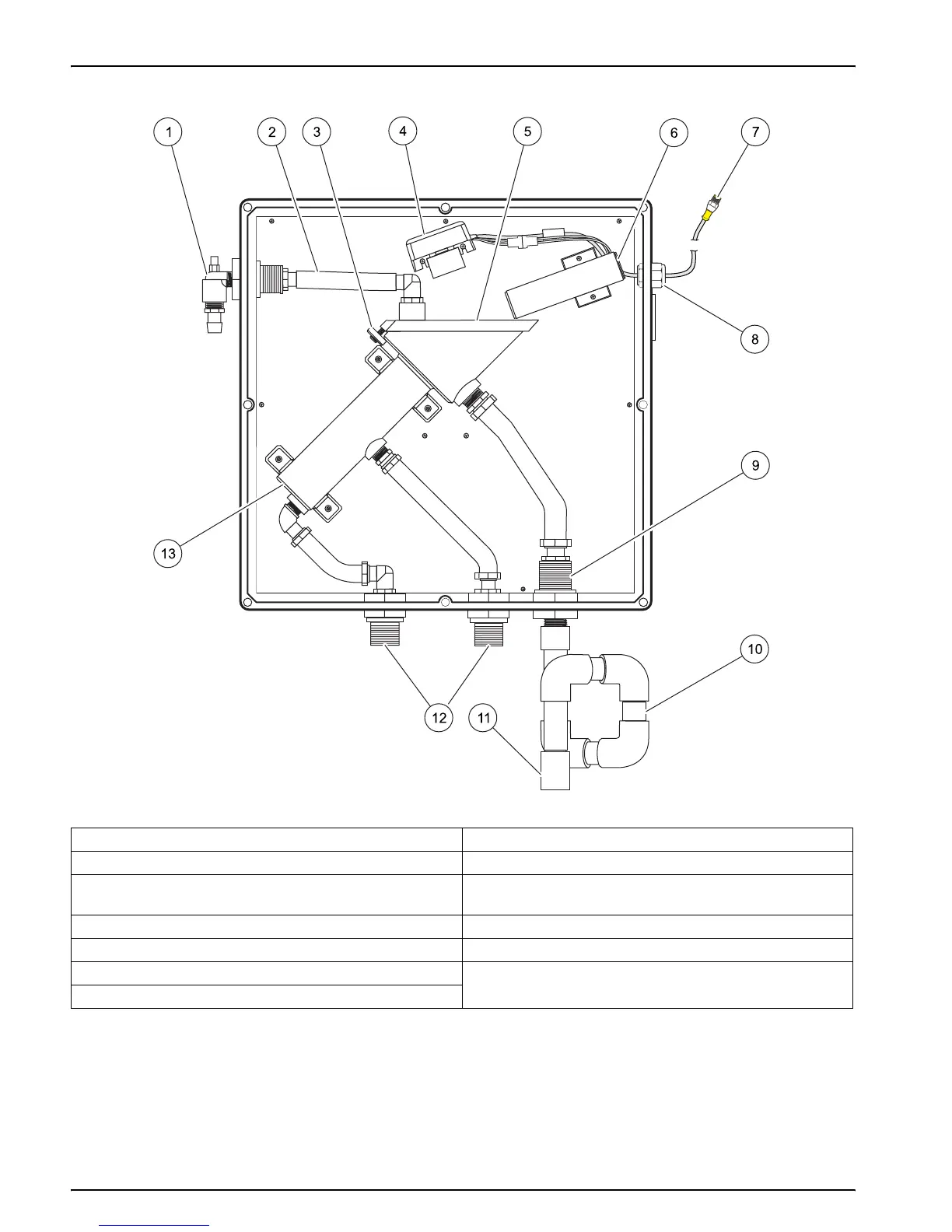

Figure 6 SS7 sc-HSTcomponents
1 Flow multiplier 8 Cord grip (Cat. No. 61287-01)
2 ¾-in. hose 9 Bulkhead fitting, 1-in. NPT (Cat. No. 40355-00)
3 Threaded disk (Cat. No. 40299-00) with ¼-in. screw
(Cat. No. 7858-11)
10 Drain trap
4 Detector assembly (Cat. No. 71221-00) 11 1-in. NPT gravity drain
5 Vent cover (Cat. No. 40294-00) 12 Bulkhead fittings, ¾-in. NPT (Cat. No. 40311-00)
6 Light source assembly (Cat. No. 45004-00) 13 Turbidimeter body (Cat. No. 45002-00)
7 To sc controller platform
