42
Maintenance

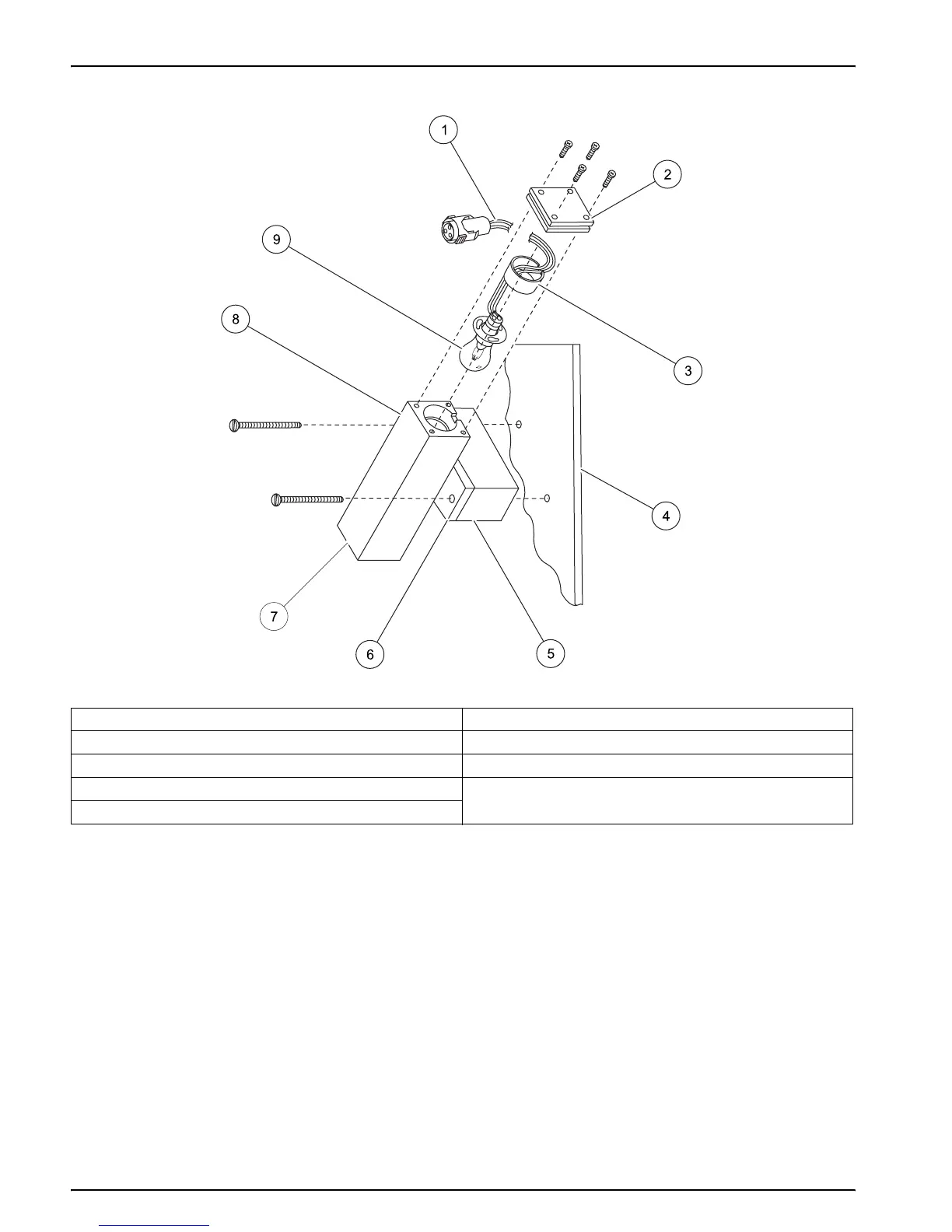

Figure
17
La
mp
replacement
1
Lamp cable
6
Sp
a
c
e
r
2
End plate
7
Housing
3
Notched spacer
8
Light source assembly
4
Back plate
9
Lamp
5
Base
45
47
Table of Contents
Default Chapter
7
Table of Contents
7
Section 1 Specifications
9
Specifications
11
Section 2 General Information
13
Safety Information
13
Use of Hazard Information
13
Precautionary Labels
13
General Product Information
14
Instrument Description
14
Surface Scatter 7 Sc High Sample Temperature
17
Section 3 Installation
19
Basic Installation Overview
19
Unpacking the Instrument
19
Mechanical Installation
20
Environmental Requirements
20
Selecting the Installation Location
20
Mounting the SS7 Sc or SS7 Sc-HST
21
Installing the Optional Heat Exchanger
23
Installing the 3-Way Ball Valves
24
Installing a Sample Line
24
Connecting Hydraulics
25
Connecting the Air Purge
28
Electrical Installation
28
Wiring Safety Information
28
Connecting/Wiring the SS7 Sc or SS7 Sc-HST to the Sc Controller
28
Section 4 System Startup
31
General Operation
31
Starting Sample Flow
31
Section 5 Operation
33
Sensor Setup
33
Configuring the Bubble Reject
33
Configuring the Signal Average
33
Sensor Data Logging
34
Sensor Diagnostics Menu
34
Sensor Setup Menu
34
Sensor Calibration and Verification
35
Standardization and Calibration
35
Calibration
35
Setting the Verification Baseline
38
Instrument Verification
39
Calibration and Verification History
40
Operating the SS7 Sc-HST
42
Section 6 Maintenance
43
Scheduled Maintenance
43
Removing a Sensor from the System
43
Installing a Sensor on the System
43
Cleaning
44
Unscheduled Maintenance
44
Lamp Replacement
44
Light Source Assembly Maintenance
47
Detector Assembly Replacement
48
Table of Contents
51
Section 7 Troubleshooting
51
Error Codes
51
Warnings
51
Troubleshooting
52
Event Codes
53
Data Log
54
Section 8 Replacement Parts and Accessories
55
Replacement Parts
55
Accessories
55
Section 9 How to Order
57
Section 10 Repair Service
58
Section 11 Limited Warranty
59
Section 12 Certification
61
