– 11 –
NOTE: The second stage heat is not utilized in Class 2 mode. Unless the Auxiliary Set (or Aux Set)
"boost heat" is selected. Stage 2 heating will operate when the thermostat calls for Stage 1 heating.
• THIRD STAGE HEAT (HEATERS A AND B ONLY)
When the room temperature falls below 2.7°F from the temperature control setpoint, the heat pump
operation will stop. Stage 3 heating is activated (based on power cord) for all outdoor temperatures,
except for l2R lockout conditions. Stage 3 will continue to operate until the room temperature
exceeds the temperature control setpoint by 0.9°F at which time the heaters will shut down.

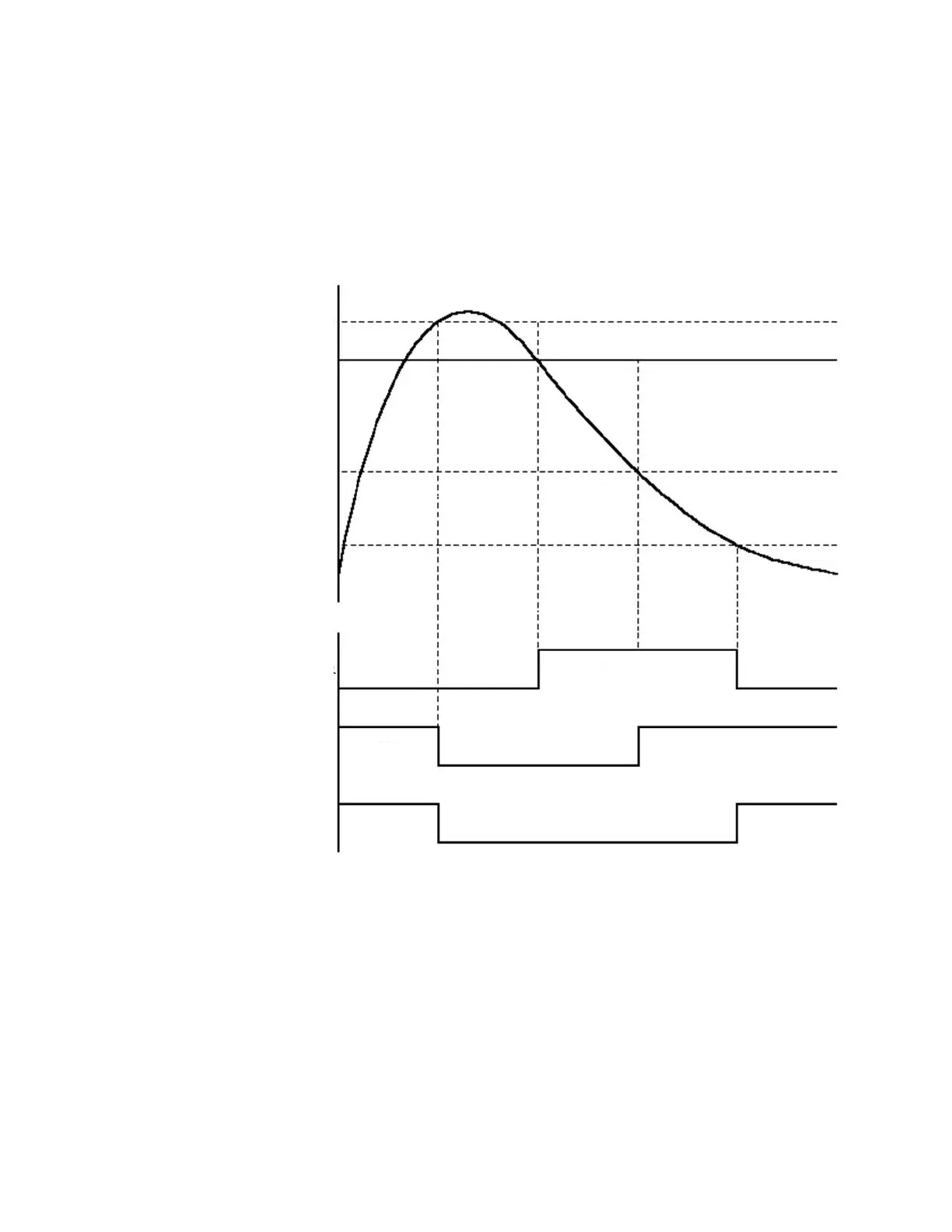

Stage Heating Mode Logic for AZ6500 Series
Temp. Setting +0.9°F
Heater B
Heater A
Compressor
Temp. Setting -2.7°F
Temp. Setting -1.8°F
Room Temp.
Temp. Setting
ON
ON
ON
ON
ON
