Haier GE AZ45E07DABW5 - Outdoor Fan Motor Assembly

– 43 –
Outdoor Fan Motor

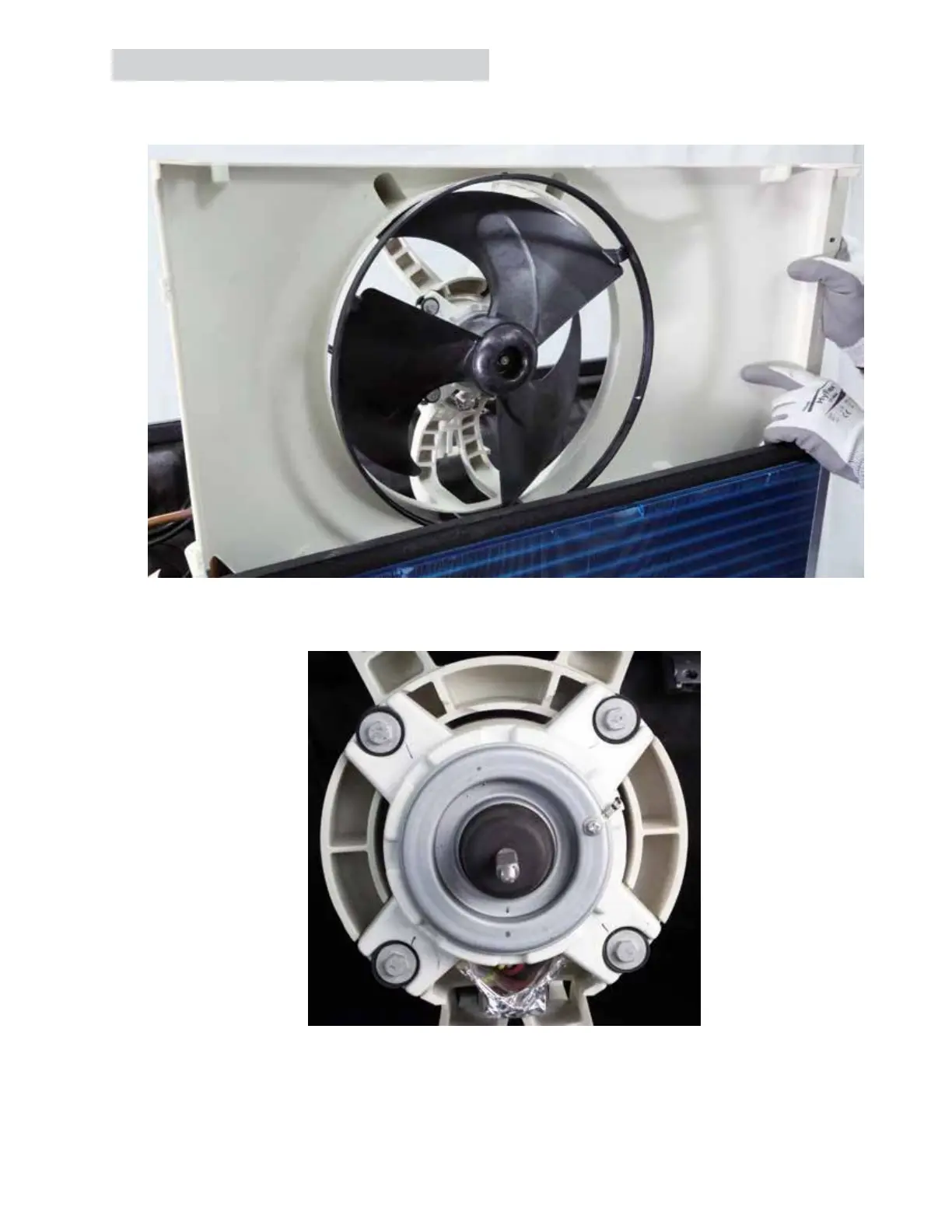

The outdoor fan motor turns a slinger fan blade, which is attached to the motor shaft with a 3/8-in.
regular thread nut.
The motor is secured to the outdoor shroud with four 5/16-in. hex-head shoulder bolts.
NOTE: If the wire clip found below the motor
breaks, secure the wire to the support with a
wire tie.
