-9-

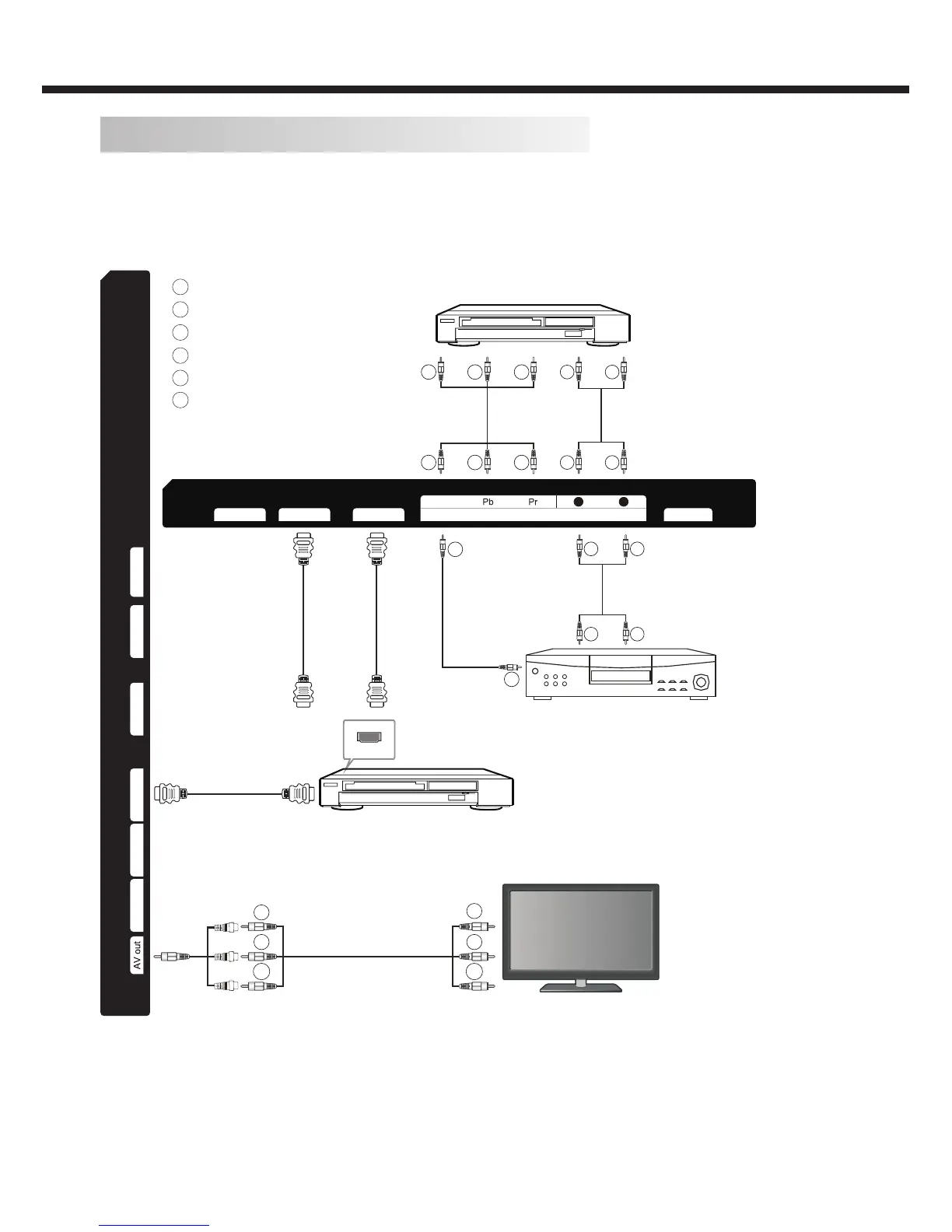

AV Equipment
This TV can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system,
etc...
Please refer to the owner's manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
HDMI
Red (audio R)
White (audio L)
Red (Pr or Cr)
R
W
R
Blue (Pb or Cb)
Green (Y)
B
G
Yellow (video)
Y
VIDEO EQUIPMENT
G B R
W R
G B R
W R
W R
W R
AV EQUIPMENT
AV ADAPTER
CABLE
TO VIDEO OUTPUTS
VCR PLAYER
AUDIO CABLE
AUDIO CABLE
Y
W
R
Y
W
R
Y
Y
MONITOR
COMPONENT
CABLE
VIDEO CABLE
AntennaHDMI 3 Ethernet
Component /AV Input
- audio -
RL
HDMI 2
Y/CVBS
USBUSB 3.0
SPDIF out
HDMI 1 SD Card
Ear-phone
Notes:
1. AV and YPbPr share one audio channel.
2. When HDMI port get DVI signal, the "PC Audio" channel is changed to receive the audio for HDMI port.
3. Sometimes it will not support in different device because the device supplys nonstandard signal.
4. When current source is TV, AV OUT signal is TV; when current source is AV, AV OUT signal is AV; other sources have no
AV OUT signal.
5. TV system supports HDMI CEC feature which involves One Touch Play, Auto Standby and Audio Return Channel (ARC).
INSTALLATION
