Haier LE43B7600A - Rear AV Connections; Antenna Connection

-7-

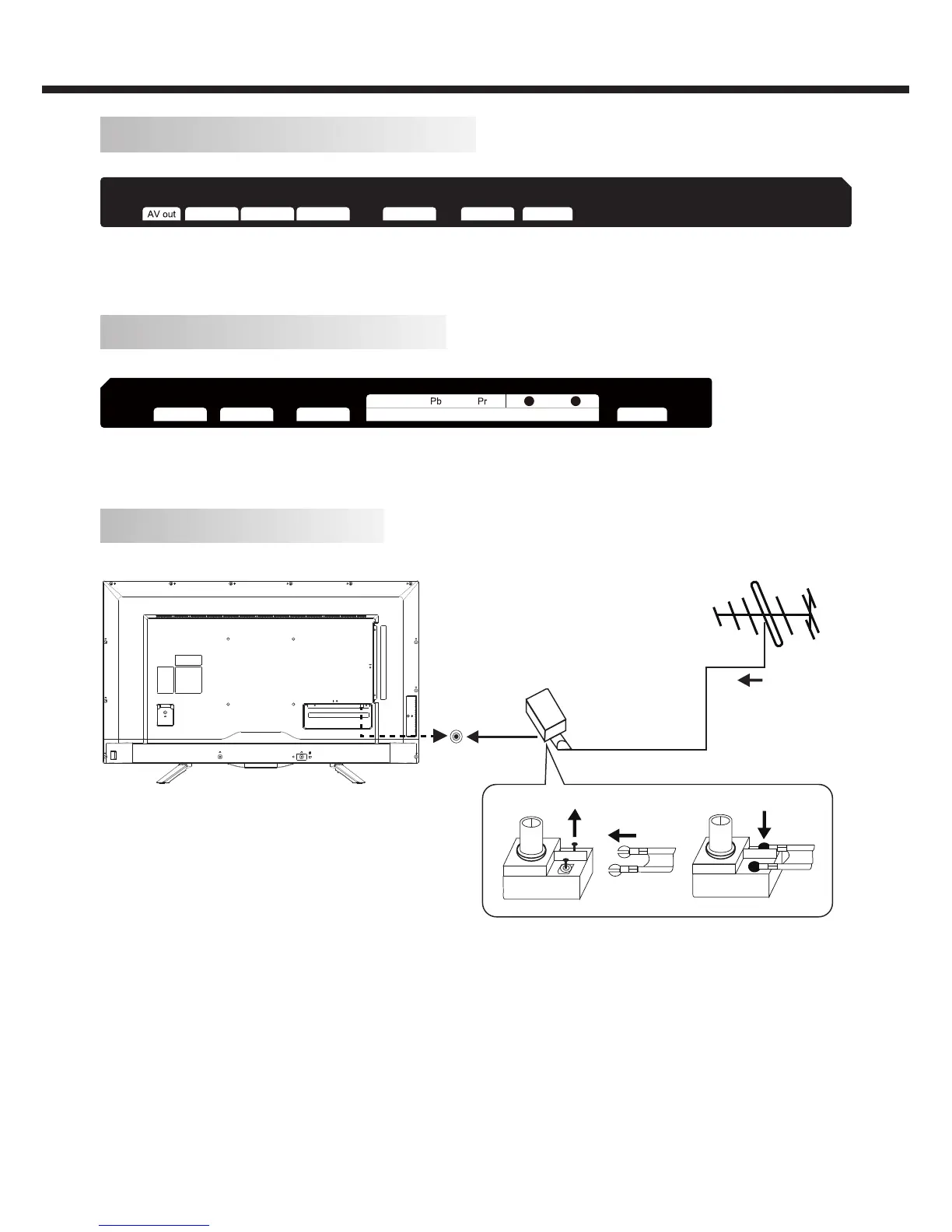

Rear AV Connections (Side)
USBUSB 3.0
SPDIF outHDMI 1 SD Card
Ear-phone
All the terminals are (from down to up):
AV Output, Ear-phone, USB 3.0, HDMI 1, SD Card Slot, USB, SPDIF Output.
Rear AV Connections
AntennaHDMI 3 Ethernet
Component /AV Input
- audio -
R
L
HDMI 2
Y/CVBS
All the terminals are (from left to right):
Ethernet, HDMI 3, HDMI 2, Component Input/AV Input (Y/Pb/Pr, AUDIO L/R), Antenna.
Antenna
Loosen the screws Insert the feeder in Wires
Note:
Aerial connections: IEC (female).
Input impendance: 75Ω unbalanced.
Plug
An outdoor antenna
An outdoor antenna
CATV net
TWIN-LEAD FEEDER(300Ω)
ANT 75Ω
Adaptor
(NOT SUPPLIED)
Tighten the screws
INSTALLATION
