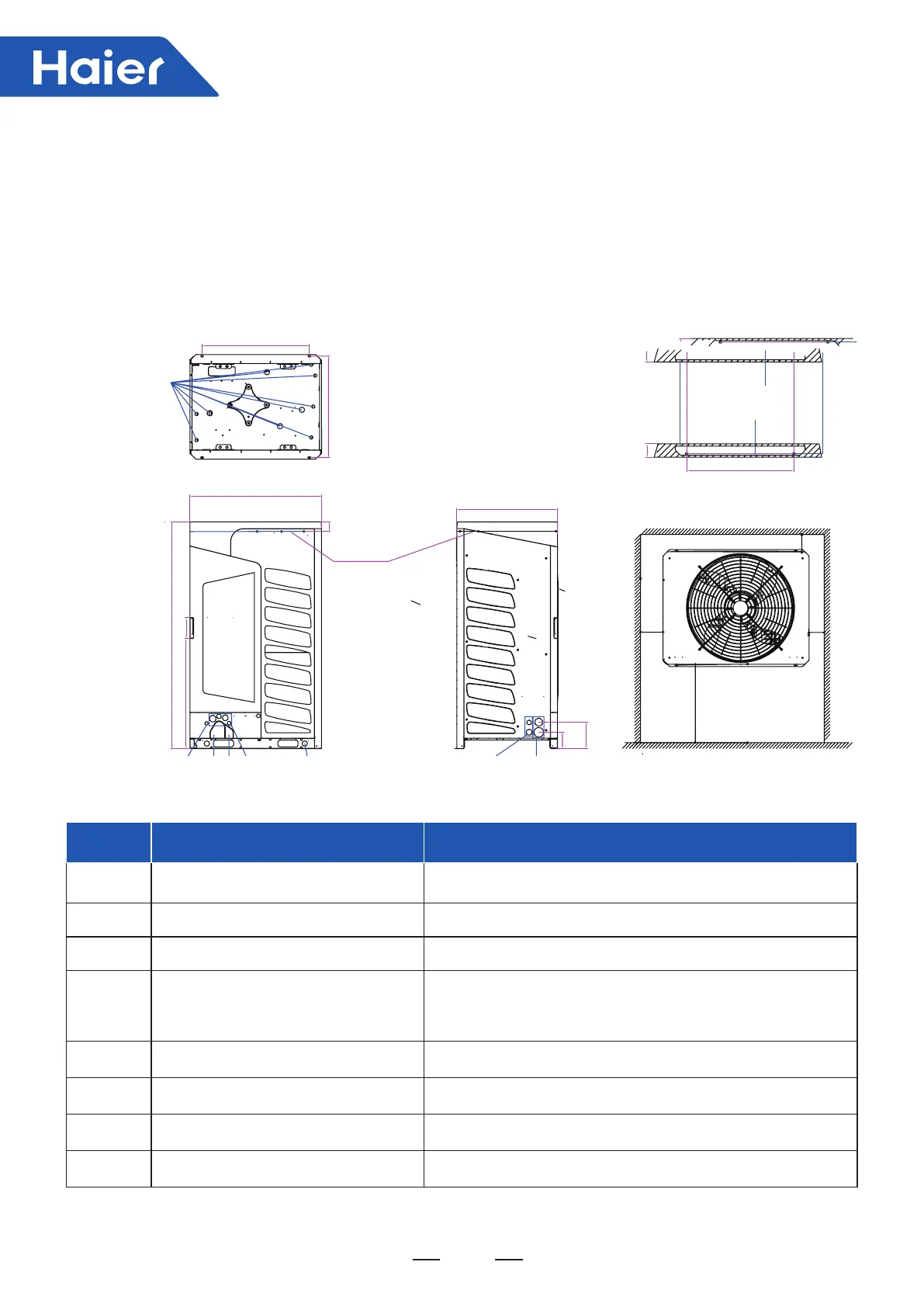

MVHQ072ME2/4CA
＞39-2/5
＞
11-4/5
＞11-4/5
Back
Left
Right
Front
＞11-4/5
①
②③ ④
⑤
⑥
⑦
⑧
38-3/5
66-1/2
29-1/2
4
4
24-4/5
3
3
29-3/4
31-1/2
.
Space between fixing openings 29-7/10
.
Space between fixing openings 31-1/2
Unit: in.
6
32
Air outlet
duct
connection
position
4-4/5
7-4/5
2-3/4
No. Name Remark
1 Signal line opening (Ø1) Using the rubber plug in the unit's attachment for protection
2 Pipe outlet for 2-pipe system
3 Pipe outlet for 3-pipe system
4 Power supply opening
According to the wire diameter size to choose the appropriate
line opening, and using the line sheath in the unit's attachment
for protection.
5 Hoisting opening
6 Power supply of signal line opening
7 Refrigerant pipe outlet
8 Drain opening
