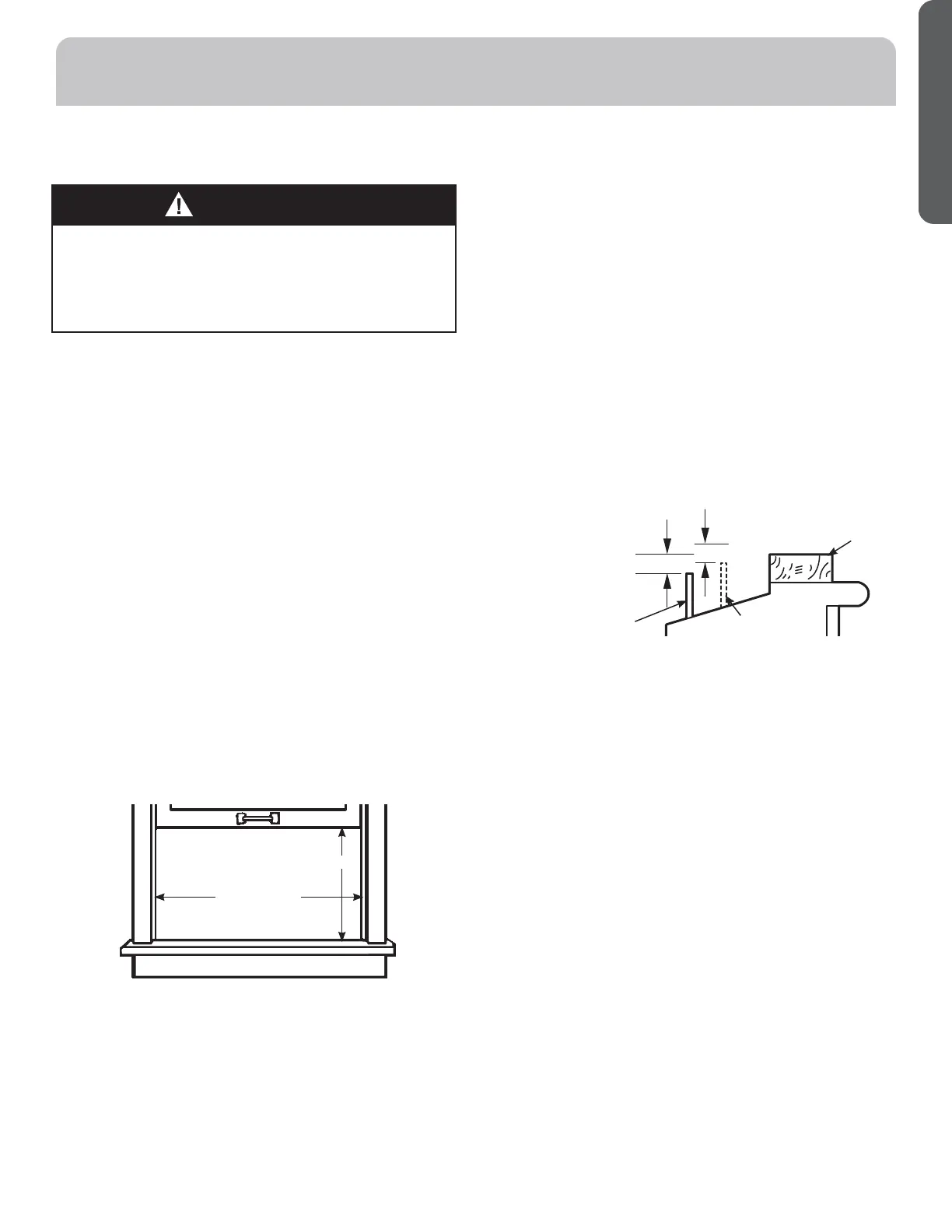

INSTALLATION INSTRUCTIONS
• These instructions are for a standard double-hung window.
You will need to modify them for other types of windows.
• The air conditioner can be installed without the side
curtain panels if needed to fit in a narrow window. See
the window opening dimensions.
• All supporting parts must be secured to firm wood,
masonry or metal.
• The electrical outlet must be within reach of the power
cord.
• Follow the dimensions in the table and illustration for
your model.
ENGLISH
5
WARNING
Excessive Weight Hazard
Use two or more people to move and install air
conditioner.
Failure to do so can result in back or other injury.
STEP 1 - UNPACK AIR
CONDITIONER
• Remove packaging materials. Save the carton and the foam
packaging for storing the air conditioner when not in use.
NOTE: There are NO packing materials inside the
air conditioner to remove—Do Not open the cabinet.
• Properly dispose of/recycle all packing material.
• Handle the air conditioner gently.
• Keep the air conditioner upright and level. Do not set the air
conditioner on its side, front, back or upside down.
A storm window frame will not allow the air conditioner
to tilt toward the outside, and will keep it from draining
properly. To adjust for this, attach a piece of wood to the
sill.
àØØÍÙÒÎÌÎÜ
àÒÍÝÑ"ė
LENGTH: Long enough to fit inside the window frame.
THICKNESS: To determine the thickness, place a piece of
úòòçòñ÷ëèöìïï÷òðäîèì÷!¦"ėëìêëèõ÷ëäñ÷ëè÷òóòé÷ëè
storm window frame or the vinyl frame.
Attach securely with nails or screws provided by the
installer.
21-7/8” - 36”
!¦"ėëìêëèõ
than storm
window
frame
Storm window
frame
Wood
Sill
!¦"ėëìêëèõ
than vinyl frame
(on some windows)
STEP 2 - WINDOW REQUIREMENTS
13-3/8”
(With side curtain panels)
STEP 3 - STORM WINDOW
REQUIREMENTS
