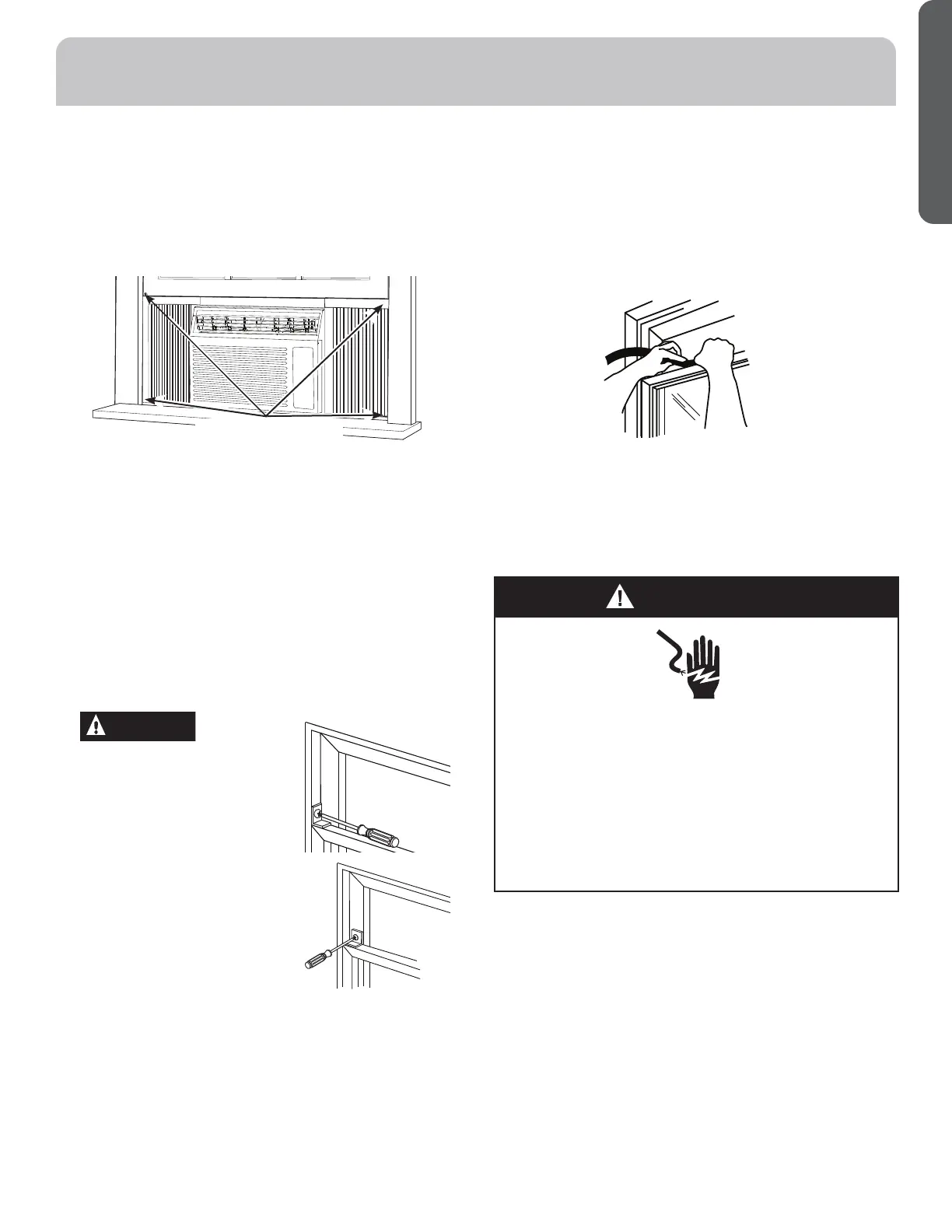

INSTALLATION INSTRUCTIONS
ENGLISH
7
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Ïäìïøõè÷òçòöòæäñõèöøï÷ìñçèä÷ëĤõèòõ
electrical shock.
STEP 7 - COMPLETE INSTALLATION
1. Plug the power cord into a grounded 3 prong outlet.
2. Press the Reset button on the power cord to ensure the
safety plug is providing power to the air conditioner.
D. Bring the window down so that the front edge of the
top mounting is in front of the window. Make sure
that the air conditioner is level or tilting slightly to the
outside.
STEP 5 - INSTALL THE AIR
CONDITIONER IN THE WINDOW
7\SH%VFUHZV
E. Extend the curtain panels until they fill the window.
Mark the location of the holes in each corner. Use the
drill and 1/8” drill bit to drill pilot holes. Use 4 type B
screws to secure the side panels in place.
Use Type B Screw to install the window lock bracket on
top of the bottom window.
A.
To prevent broken glass or
damage to windows, on vinyl
or other similarly constructed
windows, attach the window
locking bracket to the window
side jamb with one Type B
screw.
STEP 6 - INSTALL WINDOW
LOCKING BRACKET AND FOAM TOP
WINDOW GASKET
CAUTION
Wood
Vinyl
B. Cut the foam top window gasket to the window width
C. Stuff the foam between the glass and the window to
prevent air and insects from getting into the room.
NOTE: If the gasket supplied does not fit your
window, obtain appropriate material locally to provide
a proper installation seal.
STEP 6 - INSTALL WINDOW
LOCKING BRACKET AND FOAM TOP
WINDOW GASKET
