Haier QPCA08 - Window Panel Combinations

49-5000543 Rev. 1 11
ENGLISH
INSTALLATION INSTRUCTIONS

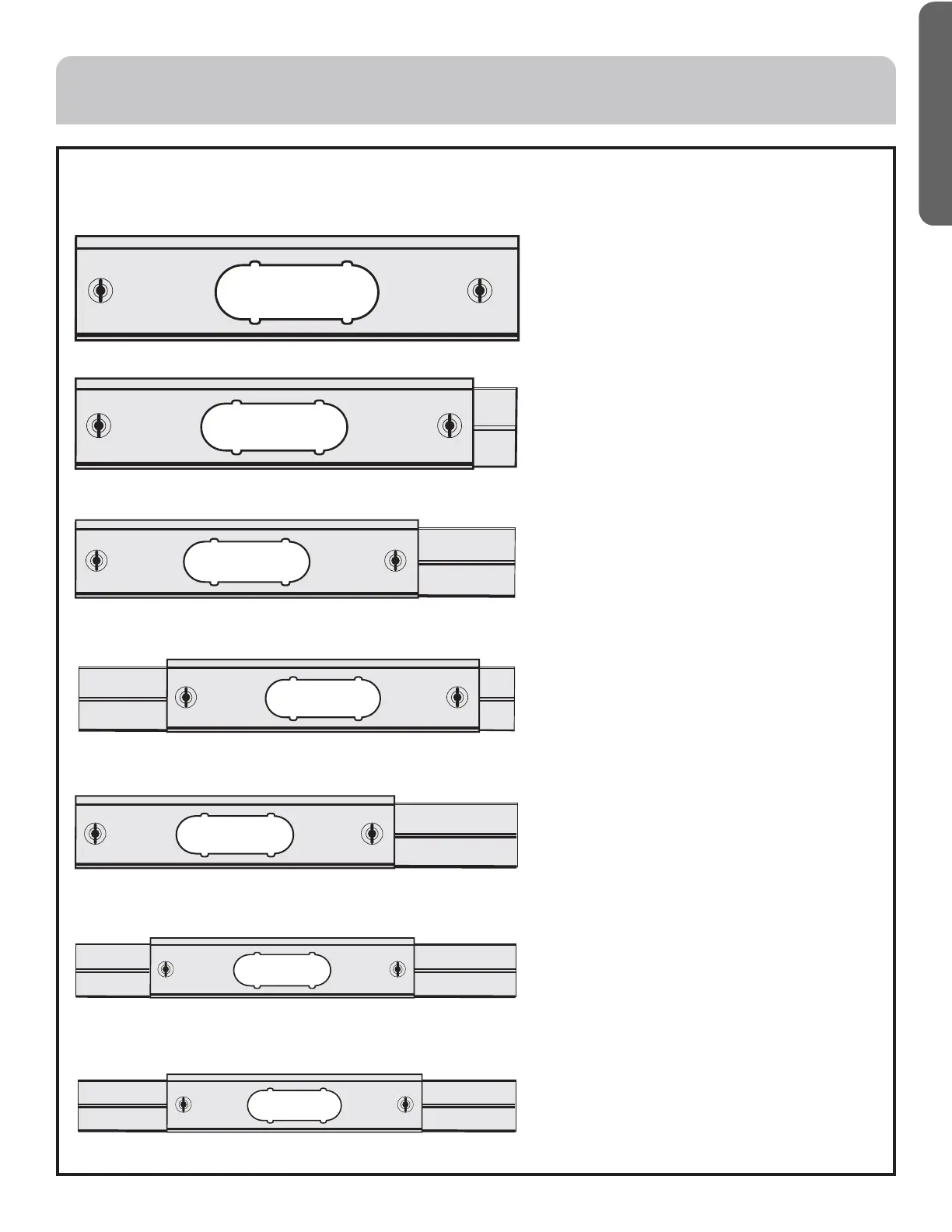

WINDOW PANEL COMBINATIONS TO FIT WINDOW OPENINGS
(Appearance may vary)
Window Opening 20” - Center Panel Only
Window Opening 20”- 23½” - Center Panel + 5½” Extension
Window Opening 23½”- 27” - Center Panel + 9” Extension
Window Opening 23½”- 30½” - Center Panel + 9” and 5½” Extensions
Window Opening 30½” - 34” - Center Panel + 16” Extension
Window Opening 34”- 41” - Center Panel + 9” and 16” Extensions
Window Opening 41”- 48” - Center Panel + (2) 16” Extensions
